SICK FLOWSIC600 Ultrasonic Gas Flow Meter Unit

Feature & Principle

This gas ultrasonic flowmeter adopts transit time difference principle. Ultrasonic signals travel forward and backward along the measuring path, and the gas flow velocity is calculated by time difference. No moving parts, low wear, supports bidirectional flow measurement. Built-in sound speed monitoring and rich self-diagnosis, can early warn abnormal working conditions, suitable for trade metering scenarios with high accuracy requirements.

Specifications

Model: FLOWSIC600 Brand: SICK Measurement principle: Transit time difference Measuring path: 2-path / 4-path optional Pipe size: DN50 ~ DN600 (2"~24") Turndown ratio: 1:120 Max pressure: 250 barg Gas temperature range: -194℃ ~ +105℃ Output: 4-20mA, digital bus Certification: ATEX, IECEx, OIML

Components & Diagnostics

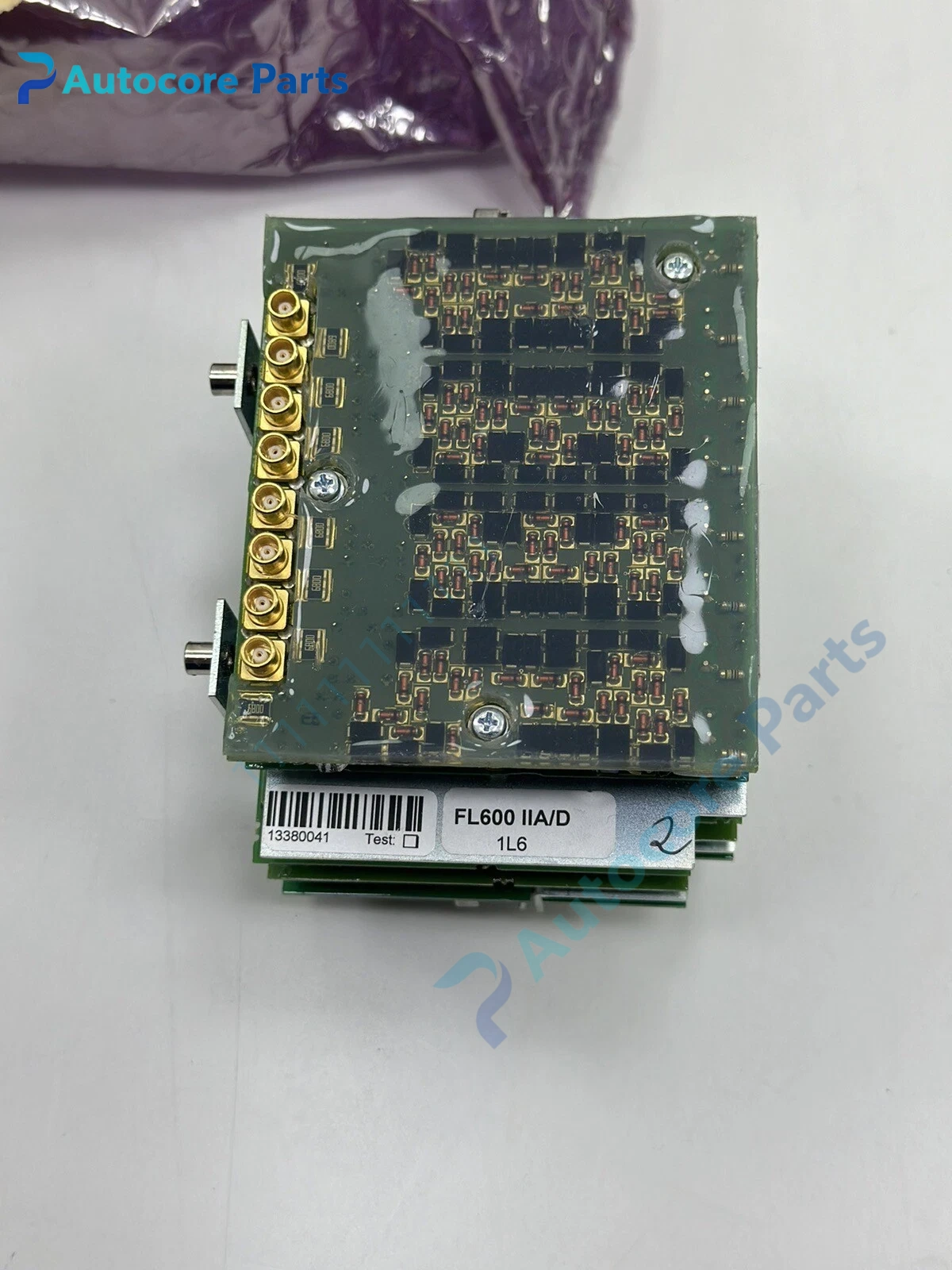

Meter body, ultrasonic transducers, signal processing transmitter, communication module and wiring assembly. Common faults: transducer fouling, signal attenuation, communication interruption, sound speed deviation and parameter configuration error.

Product Brief

FLOWSIC600 ultrasonic flowmeter, SICK gas measurement spare widely used for natural gas pipeline custody transfer, gas storage station, petrochemical process gas and biogas metering.
