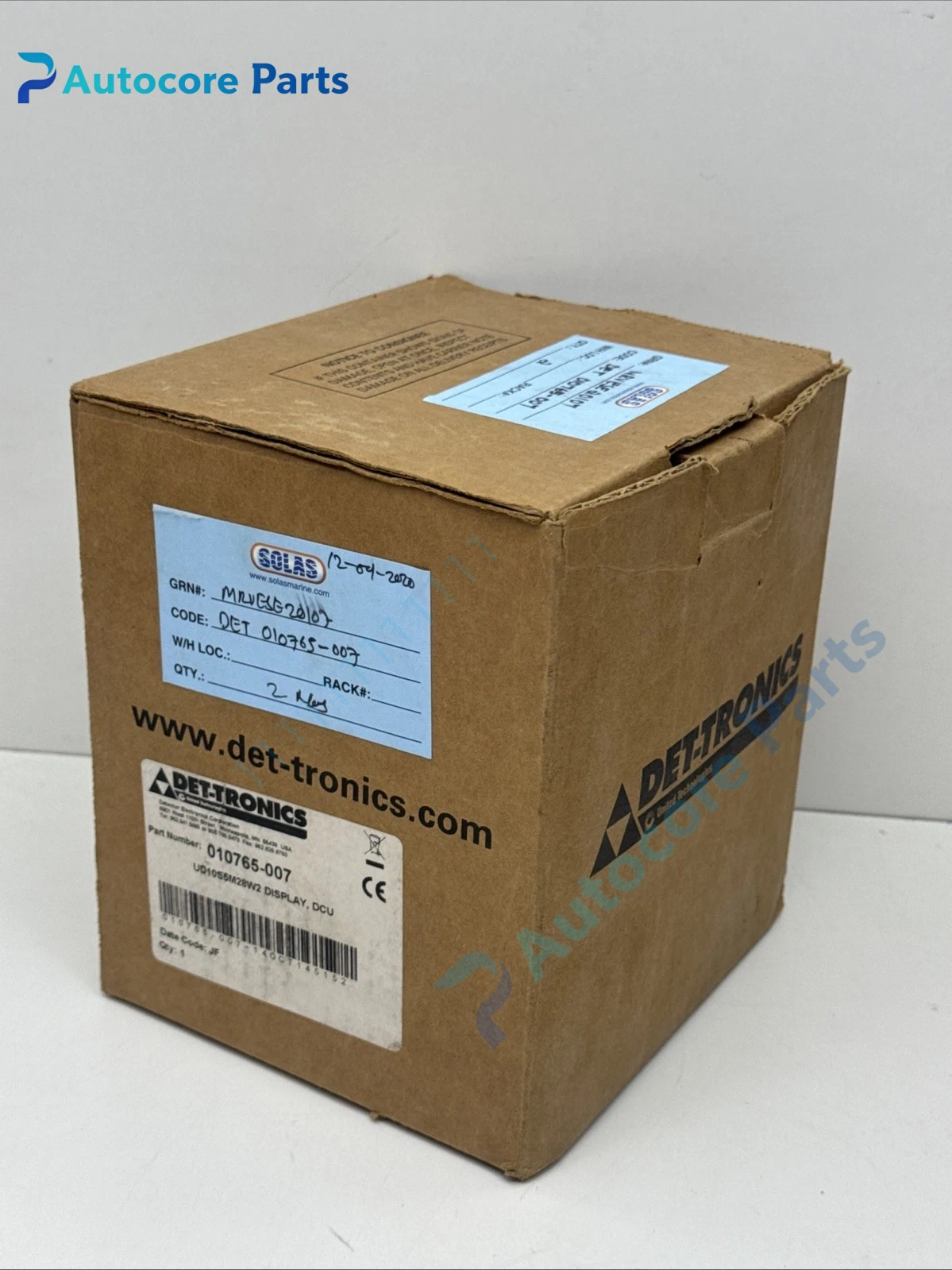

Det-Tronics 010765-007 FlexVu UD10 Explosion Proof Universal Display Unit

Feature & Principle

This explosion-proof display controller receives gas concentration signal from compatible Det-Tronics sensors. It features heated backlight LCD and magnetic non-contact operation, supports on-site calibration, alarm setting and event logging. It outputs isolated 4-20mA signal and communicates via HART, can work as standalone gas detection controller and integrate into EQP safety system.

Specifications

Model: 010765-007 Brand: Det-Tronics Series: FlexVu UD10 Input: 4-20mA from gas sensor Output: Isolated 4-20mA, HART Operation: Magnetic switch (no opening cover) Display: Heated backlit LCD Safety level: SIL2 Certification: ATEX, IECEx, CSA, FM

Components & Diagnostics

Main control board, heated LCD module, magnetic sensing assembly, explosion-proof housing, signal terminal and status LED. Common faults: display no backlight, communication failure, calibration drift, alarm relay failure and power supply abnormality.

Product Brief

010765-007 display controller, Det-Tronics gas safety spare widely used in chemical plant, oil and gas platform, refinery hazardous area gas detection cabinets.
