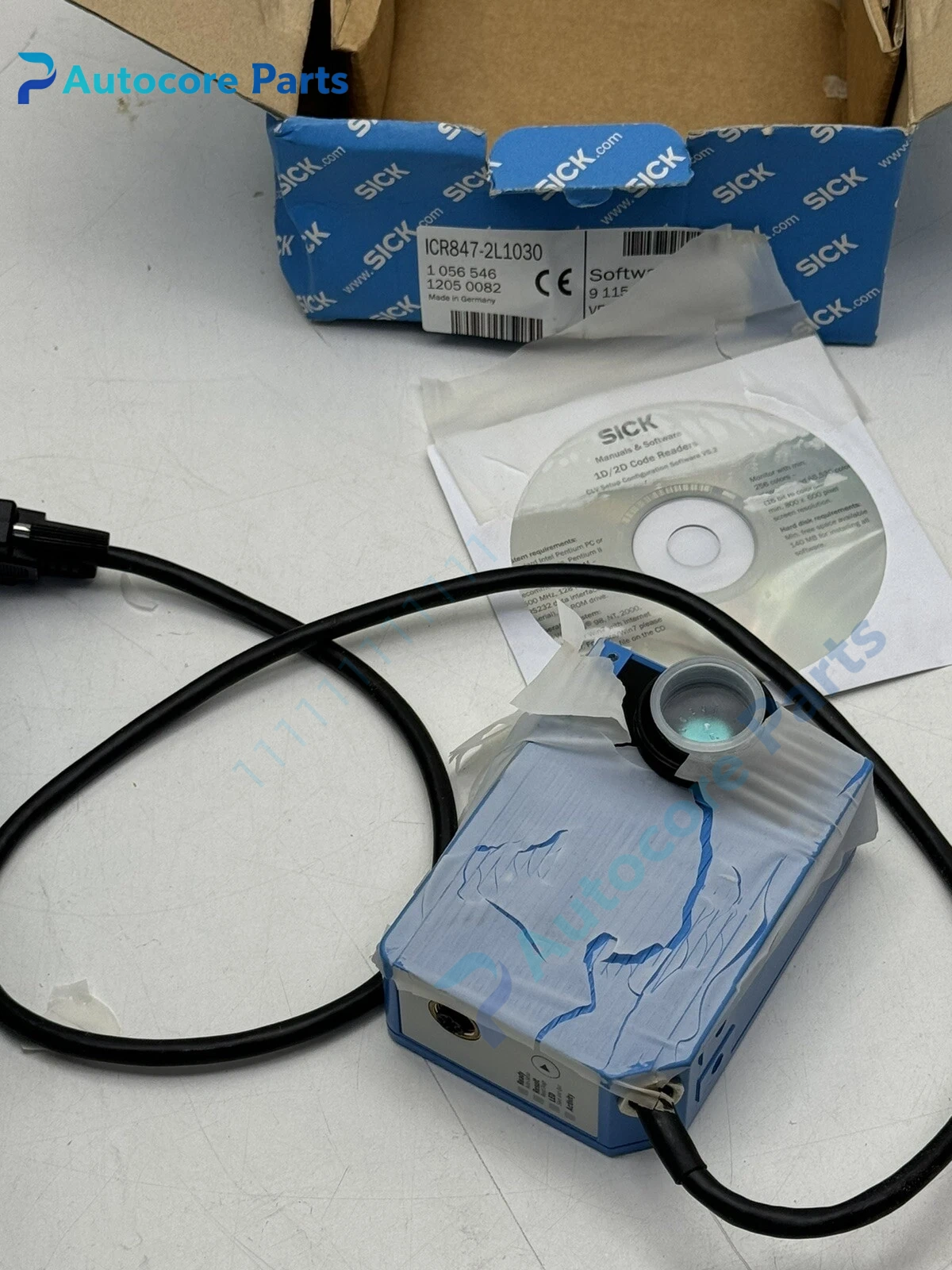

SICK ICR847-2L1030 Code Reader Unit

Module Feature

ICR847-2L1030 is SICK ICR84x-2 FlexLens series industrial image-based code reader.

It adopts 1280×960 CMOS monochrome sensor, C-mount lens interface for flexible lens replacement to adjust working distance and field of view. It supports decoding of common 1D barcodes, DataMatrix, QR and PDF417 codes, minimum code resolution 0.1 mm. Equipped with aiming laser for quick alignment, compatible with external ring lighting accessories. It integrates Ethernet communication port and digital input/output for trigger and result feedback, suitable for long-distance code reading scenarios on production line. It is a common spare for packaging, automotive and warehouse traceability system.

Working principle

The CMOS sensor captures the image of the printed or laser-marked code.

Internal image processing chip executes decoding algorithm to extract code data. After decoding completed, the reader transmits code content to PLC or host PC via Ethernet, meanwhile outputs OK/NOK signal through digital I/O for sorting and interlock control. Aiming laser assists operator to adjust installation gap and viewing angle.

Onboard components

1.2MP CMOS image sensor, image processing FPGA, aiming laser module, status LED group, M12 Ethernet connector, 15-pin D-Sub power/I/O connector, C-mount lens adapter, metal housing and mounting threaded holes.

LED indicators

Front LEDs indicate power status, trigger receiving, decode success, decoding failure and communication activity.

Hardware self‑diagnosis

Built-in supervision detects communication loss, lighting abnormal, image overexposure and internal hardware error. Diagnosis and parameter configuration are realized by SICK Sopas ET software.

Programming software

Sopas ET, used for code type setup, reading parameter tuning, I/O mapping and reader diagnosis.

Electrical & Process Parameters

Model:ICR847-2L1030 Brand:SICK Device type:Industrial image code reader Function:1D / 2D barcode capture, decoding and data transmission for product traceability

Mechanical & Structure

Mounting:Bracket bolt mounting via M3 / M5 threaded holes Protection class:IP30, IP65 with hood installed Housing:Aluminum alloy reinforced industrial housing

Environmental

Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE

Status:Original SICK vision spare

Installation

Fix reader bracket firmly and adjust the lens focus and aiming position.

Match external light source if required, configure trigger mode and communication protocol, test decoding stability under actual production speed.

Interface

M12 4-pin D-coded Ethernet port, 15-pin HD D-Sub power / serial / I/O port, C-mount lens interface.

Diagnostic

Decoding unstable: Insufficient light, code surface reflection, wrong lens selection or out of focus. No trigger response: Trigger wiring error or I/O parameter misconfiguration. Communication offline: Ethernet cable damage, IP address mismatch or network switch fault.

Product Brief

SICK ICR847-2L1030 code reader, FlexLens long range 1D/2D vision reading spare for packaging and automotive traceability station replacement.
