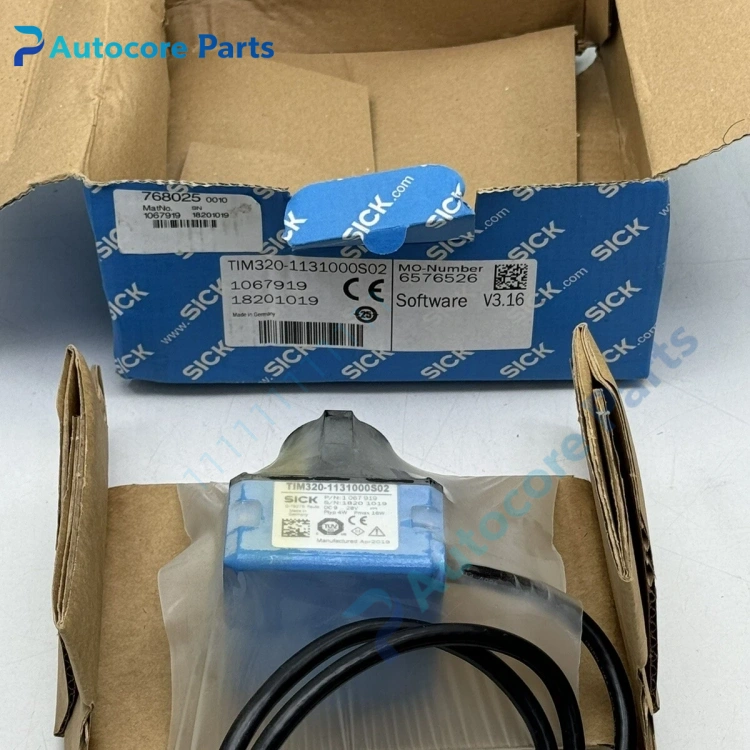

SICK TIM320-1131000S02 TiM320 2D LiDAR Sensor Unit

Feature & Principle

This 2D laser scanner adopts HDDM+ ranging principle, emits Class1 infrared laser for 270° omnidirectional scanning. It can set up to 16 groups of warning/protection fields, output switching signals when objects enter the monitoring zone. Compact size, indoor dedicated, widely used for mobile robot obstacle avoidance and stationary area detection.

Specifications

Model: TIM320-1131000S02 Brand: SICK Series: TiM320 Scan angle: 270° Measuring range: 0.05~4 m Laser: 850nm infrared, Class1 Supply voltage: 9~28V DC Connector: M12 12-pin male Protection: IP65 Certification: CE

Components & Diagnostics

Laser transceiver module, main signal processing board, M12 connector, indicator LED and aluminum plastic housing. Common faults: lens contamination, field misjudgment, switching output failure and communication anomaly.

Product Brief

TIM320-1131000S02 laser scanner, SICK perception spare widely used for indoor AGV, automated guided carts and machinery access area monitoring.
