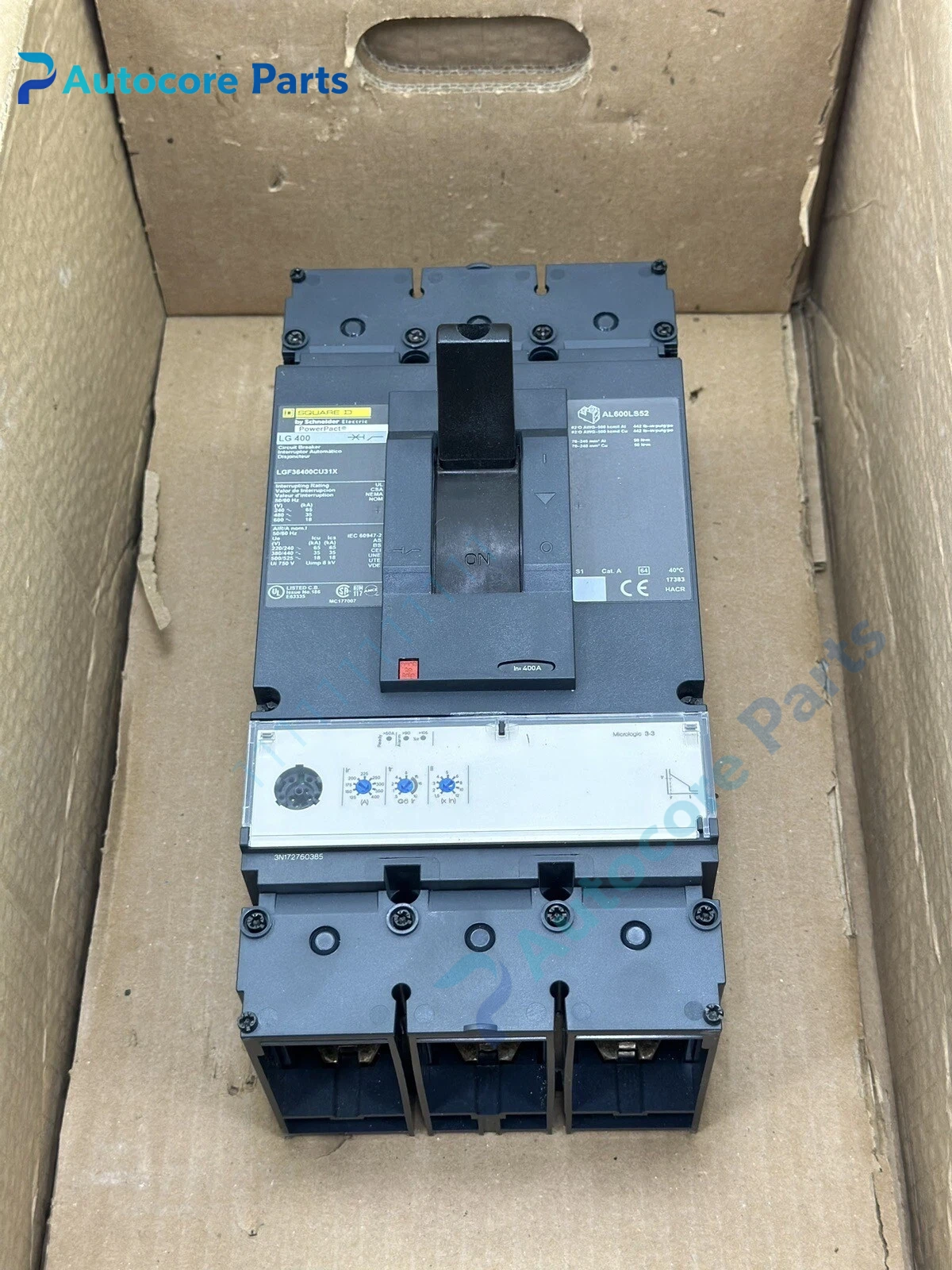

Schneider LGF36400CU31X PowerPact L MCCB Unit

Feature & Principle

This molded case circuit breaker adopts Micrologic 3.3 electronic trip unit, provides long-time overload and instantaneous short-circuit LI protection. It monitors line current continuously and trips quickly under fault condition to protect cables and downstream loads. I-Line plug-in structure supports fast installation and replacement in distribution cabinets.

Specifications

Model: LGF36400CU31X Brand: Schneider (Square D) Series: PowerPact L Pole: 3P Rated current: 400A Rated voltage: 600V AC Trip unit: Micrologic 3.3 LI Mounting: I-Line plug-in Interrupt rating: 18kA @600V Certification: UL489, CE

Components & Diagnostics

Breaker housing, Micrologic electronic trip unit, main contact assembly, arc chute, operating handle and I-Line terminal base. Common faults include protection mis-trip, contact burning, arc chamber carbon accumulation and trip unit calibration drift.

Product Brief

LGF36400CU31X molded case circuit breaker, Schneider power distribution spare widely used in industrial workshops and data center low voltage distribution cabinets.
