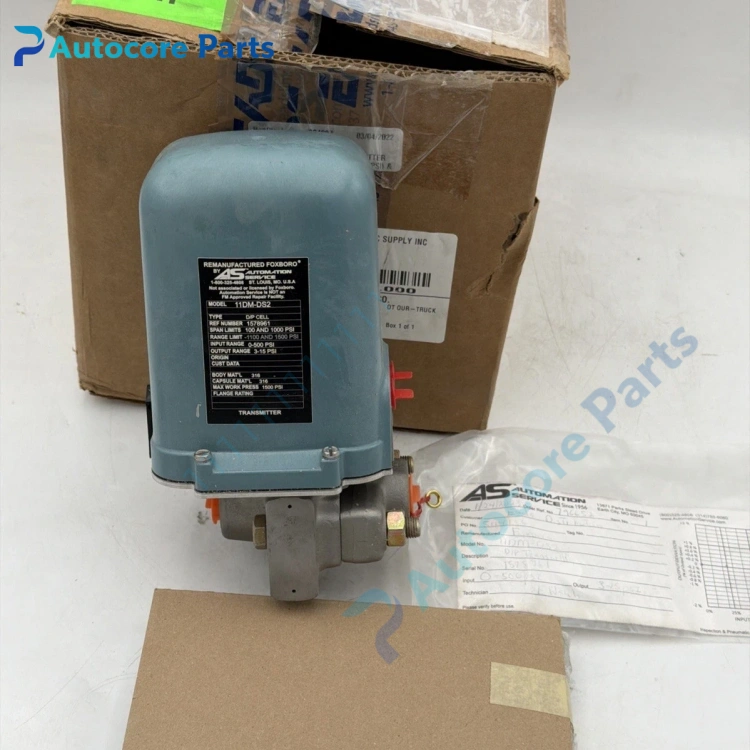

Foxboro 11DM-DS2 Pneumatic DP Transmitter Unit

Feature & Principle

This force-balance pneumatic differential pressure transmitter uses metal diaphragm d/p cell to sense pressure difference. It converts differential pressure into proportional 3-15PSI pneumatic output signal for pneumatic controllers. The span can be adjusted on site, with strong overload protection, suitable for liquid level, flow and differential pressure monitoring of process pipelines.

Specifications

Model: 11DM-DS2 Brand: Foxboro Signal output: 3~15 PSI pneumatic Wetted material: Stainless steel Structure: Force balance diaphragm type Mounting: Field direct mounting Protection: IP65 Certification: CE

Components & Diagnostics

Sensing diaphragm, force balance mechanism, nozzle baffle assembly, pneumatic supply port and signal output port. Common faults: diaphragm damage, zero drift, supply air blockage, unstable pneumatic output.

Product Brief

11DM-DS2 pneumatic differential pressure transmitter, Foxboro process spare widely used in chemical, oil and gas pneumatic control system.
