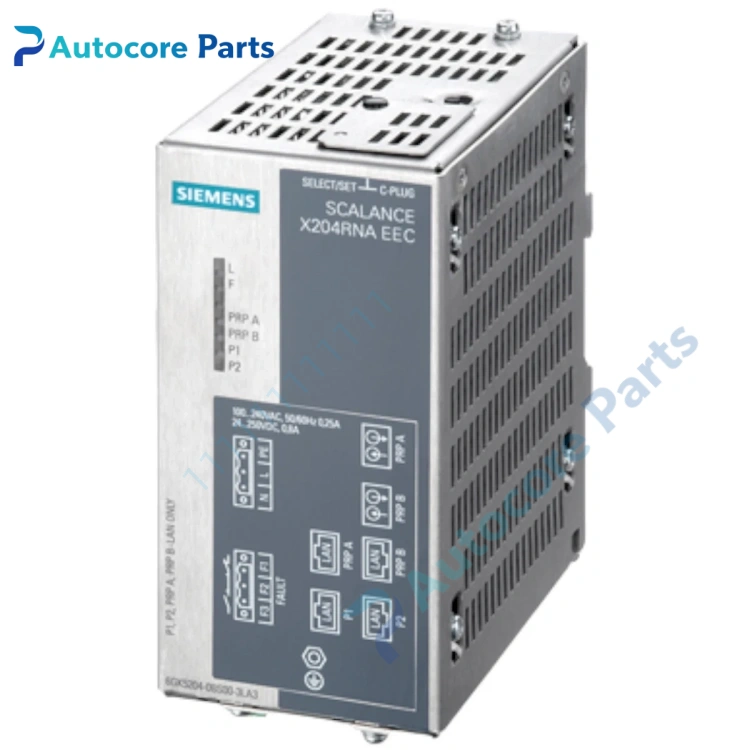

Siemens 6GK5204 Industrial Managed Switch

Feature & Principle

It is Siemens SCALANCE X200 series managed industrial Ethernet switch. It supports PROFINET IO communication, HRP high-speed ring redundancy, MRP media redundancy protocol, and can build stable ring industrial network. It can realize data forwarding between PLC, HMI, servo and other automation equipment, support C-PLUG memory card for quick configuration backup and clone. With fault relay alarm contact, it can upload network fault signal to PLC, suitable for high real-time industrial control scenarios.

Specifications

Model: 6GK5204 (SCALANCE X204 series) Brand: Siemens Series: SCALANCE X204 Rate: 10/100 Mbps Power supply: 24VDC, redundant power input Protocol: PROFINET, Modbus TCP, IEEE802.1Q VLAN Redundancy: MRP, HRP Configuration: Web page, PST tool, C-PLUG optional Mounting: DIN rail installation Lifecycle: Discontinued legacy spare, replacement XC206 series Application: Automobile production line, packaging machine, DCS control cabinet, PROFINET network Certification: CE, UL

Components & Diagnostics

Switch main board, RJ45 / optical port module, status LED indicator, fault signal relay, C-PLUG card slot, metal shell. Common faults: port no link, ring network break alarm, configuration loss, power supply failure, PROFINET communication interrupt.

Product Brief

6GK5204 managed industrial ethernet switch, Siemens SCALANCE X204 network spare widely used for old PROFINET automation cabinet overhaul and replacement.
