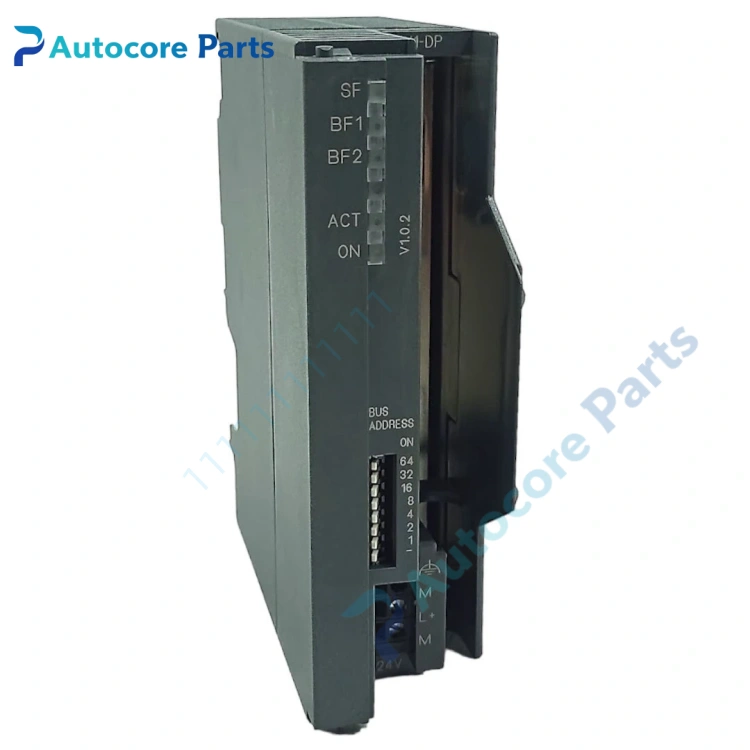

Siemens 6ES7153 Interface Module

Feature & Principle

It is the core PROFIBUS DP interface module of Siemens ET200M remote I/O station. It acts as a DP slave station on the PROFIBUS bus, exchanges data with the main S7-300 PLC, and communicates with S7-300 signal modules through the backplane bus of ET200M rack. IM153-1 supports up to 8 I/O modules, IM153-2 high feature version supports up to 12 modules, and some models support redundant configuration, isochronous mode and module hot swap, which can realize flexible distributed signal collection and output.

Specifications

Model: 6ES7153 (IM153-1 / IM153-2 series) Brand: Siemens Series: SIMATIC ET200M Bus protocol: PROFIBUS DP Transmission speed: Up to 12Mbps Power supply: 24VDC I/O capacity: IM153-1 max 8 modules; IM153-2 max 12 modules Optional function: Redundancy, hot swap, isochronous Mounting: DIN rail installation Lifecycle: Discontinued legacy spare Application: Water treatment, chemical, power plant, packaging machine distributed I/O control Certification: CE, UL

Components & Diagnostics

DP communication mainboard, PROFIBUS D-Sub connector, backplane interface, status LED indicators. Common faults: DP communication interruption, station cannot be online, module fault alarm, backplane contact failure.

Product Brief

6ES7153 IM153 interface module, Siemens ET200M remote I/O spare widely used for S7-300 distributed control cabinet overhaul and replacement.
