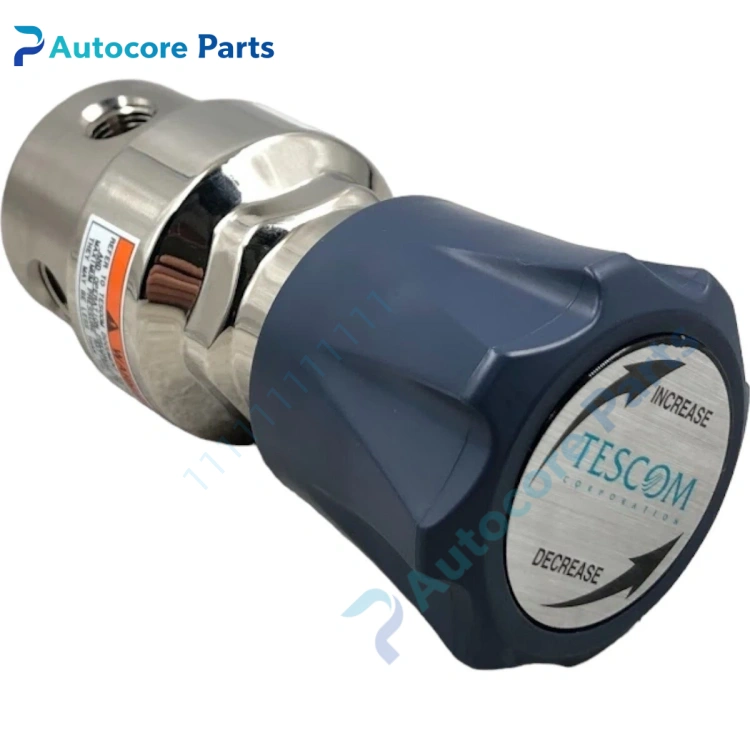

Tescom SG1P5142 Pressure Regulator

Feature & Principle

It belongs to Tescom SG1 series single-stage precision pressure reducing regulator. It uses spring-diaphragm balance principle, stabilizes fluctuating inlet pressure to constant outlet pressure. The internal diaphragm sensing outlet pressure, automatically adjusts the valve opening to compensate pressure change. 316 stainless steel wetted parts, good corrosion resistance, suitable for high-purity and special process gas, manual knob adjusts set pressure, no power supply required.

Specifications

Model: SG1P5142 Brand: Tescom (Emerson) Series: SG1 Body material: 316 Stainless steel Port thread: 1/4 NPT Working medium: High purity gas, inert gas, corrosive gas Adjust mode: Manual knob adjustment Design type: Single stage regulator Mounting: Panel or surface mounting Application: Semiconductor gas cabinet, analytical instrument, laboratory gas pipeline Certification: CE

Components & Diagnostics

Stainless steel valve body, diaphragm assembly, valve seat, adjustment spring, handwheel, sealing gasket. Common faults: outlet pressure unstable, internal leakage, seat damage, diaphragm rupture, pressure cannot be adjusted.

Product Brief

SG1P5142 pressure regulator, Tescom high purity gas pressure control spare widely used for semiconductor and gas supply system overhaul and replacement.
