Siemens EM11T I/O Module

Feature & Principle

It is a dedicated high-speed I/O card for Siemens SIMADYN D control system. It collects analog process signals, digital switching signals and SSI absolute encoder signals, and transmits them to the main processor via rack backplane bus. It also outputs analog control signals and digital switching signals to actuators. It features fast sampling cycle to meet the dynamic regulation requirements of turbines and generators, widely used for power generation set speed, excitation and load closed-loop control.

Specifications

Model: 6DD1640-0AD0 (EM11T) Brand: Siemens Applicable system: SIMADYN D DI: 16 channels, DC24V DO: 8 channels, DC24V AI: 4 channels, ±10V / 0-10V AO: 4 channels, ±10V Encoder interface: Support SSI absolute encoder Power supply: Rack backplane + external 24VDC Mounting: Standard subrack plug-in card Lifecycle: Discontinued legacy spare Application: Power plant turbine, generator excitation control cabinet Certification: CE

Components & Diagnostics

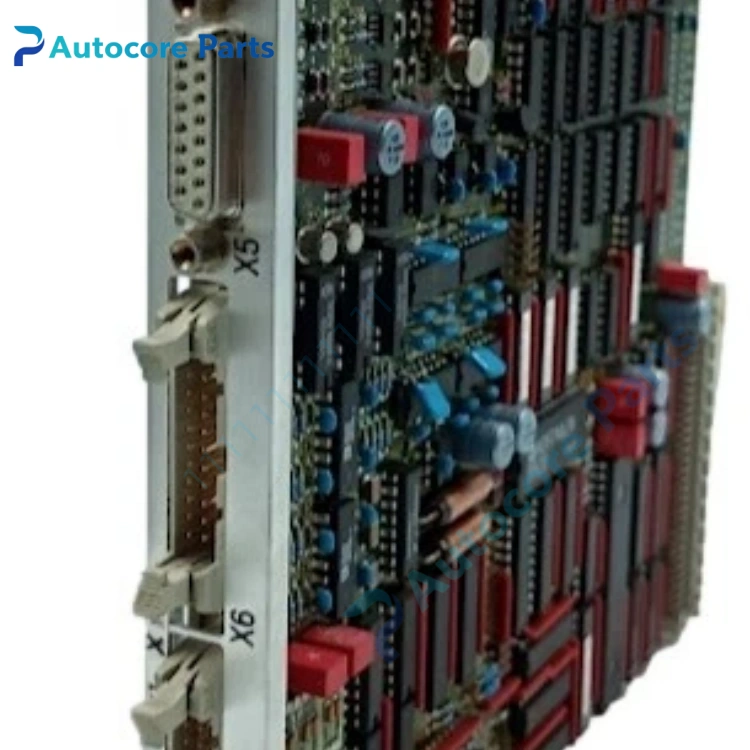

Main signal PCB, analog sampling circuit, encoder interface circuit, backplane gold-plated connector, status LED indicators. Common faults: channel signal loss, encoder reading abnormal, backplane contact poor, board burnout caused by overvoltage.
