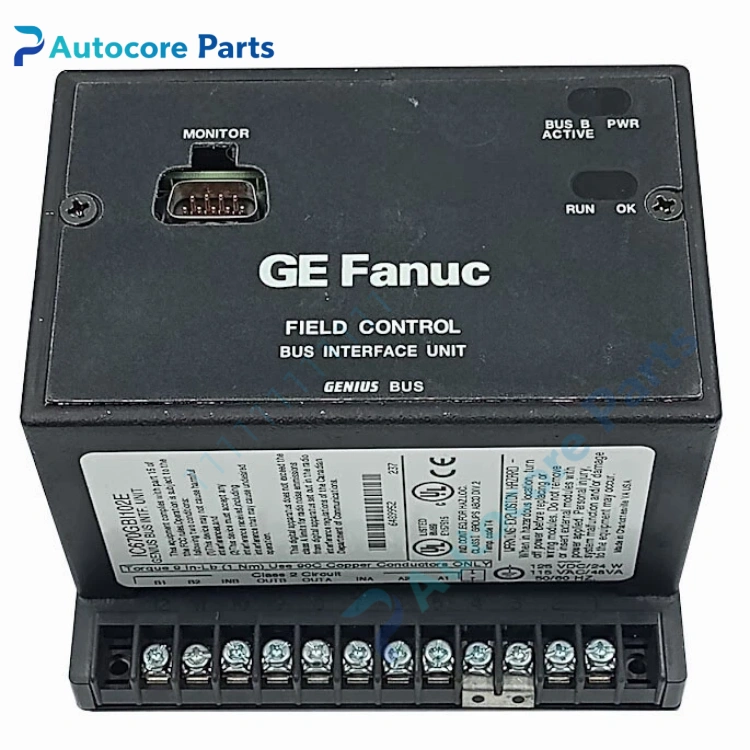

GE Fanuc IC670GBI102E Bus Interface Module

Feature & Principle

It is a Genius bus interface module of GE Fanuc Field Control distributed I/O series. It acts as the communication gateway between Genius field bus and local I/O modules. It collects digital and analog signals from connected I/O modules and transmits data to the host PLC via Genius bus, and distributes control commands from CPU to field I/O. It supports redundant bus wiring, reserved HHP handheld programmer debugging port, and provides communication status diagnosis for distributed control system.

Specifications

Model: IC670GBI102E Brand: GE Fanuc Series: Field Control Bus type: Genius Bus Max connected I/O modules: 8 units Communication rate: 153.6K / 76.8K / 38.4 baud optional Debug port: 9-pin D-Sub for HHP programmer Power supply: 24VDC Mounting: DIN rail installation Lifecycle: Discontinued legacy spare Application: Water treatment, petrochemical, old factory distributed I/O control cabinet Certification: CE, UL

Components & Diagnostics

Communication main PCB, Genius bus terminal block, D-Sub debug port, status LED indicators, plastic housing. Common faults: Genius bus communication interruption, module offline, unable to identify I/O modules, terminal loose contact.

Product Brief

IC670GBI102E Genius bus interface module, GE Fanuc distributed I/O spare widely used for old automation control cabinet overhaul and replacement.
