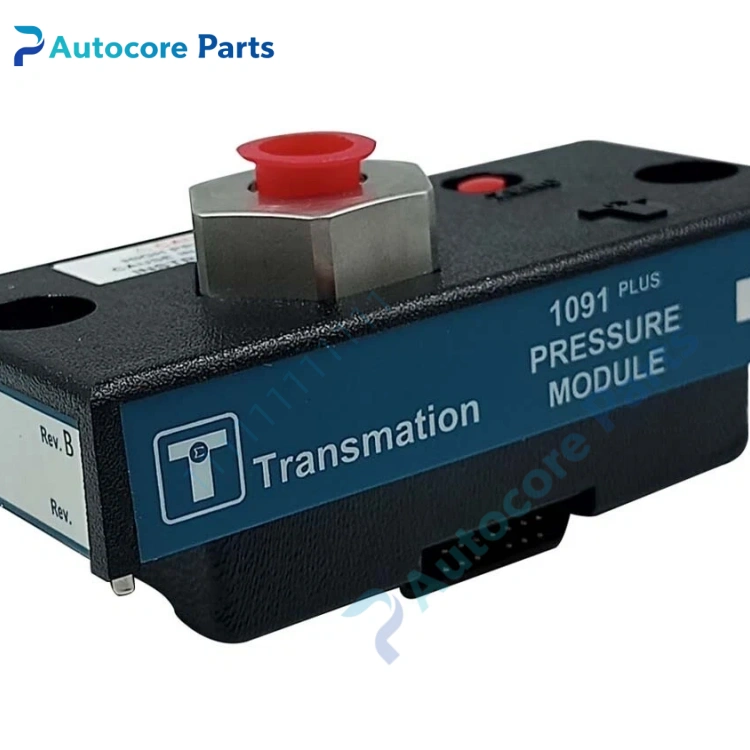

Transmation PPGI0033 Pressure Module

Feature & Principle

It is a dedicated isolated pressure measurement module made by Transmation, compatible with the 1091PLUS multifunction pressure calibrator. It adopts internal isolation structure to avoid medium contamination to the calibrator host. It converts pressure signal into standard digital signal for the calibrator to read, supports automatic zero adjustment, and can switch multiple engineering units. It is mainly used for field calibration of pressure transmitters, pressure switches and gauges in process industries.

Specifications

Model: PPGI0033 Brand: Transmation Measurement range: 0 ~ 33 PSI Accuracy: 0.05% full scale Compatible host: 1091PLUS pressure calibrator Pressure port: 1/4"NPT Structure: Isolated sensor design Application: Petrochemical, power plant pressure instrument calibration Certification: CE

Components & Diagnostics

Pressure sensing core, isolation diaphragm, signal conditioning PCB, threaded pressure connector, sealing assembly. Common faults: zero drift, pressure response slow, internal diaphragm damage, leakage at thread joint.

Product Brief

PPGI0033 isolated pressure module, Transmation calibration instrument spare widely used for pressure transmitter calibration and maintenance.
