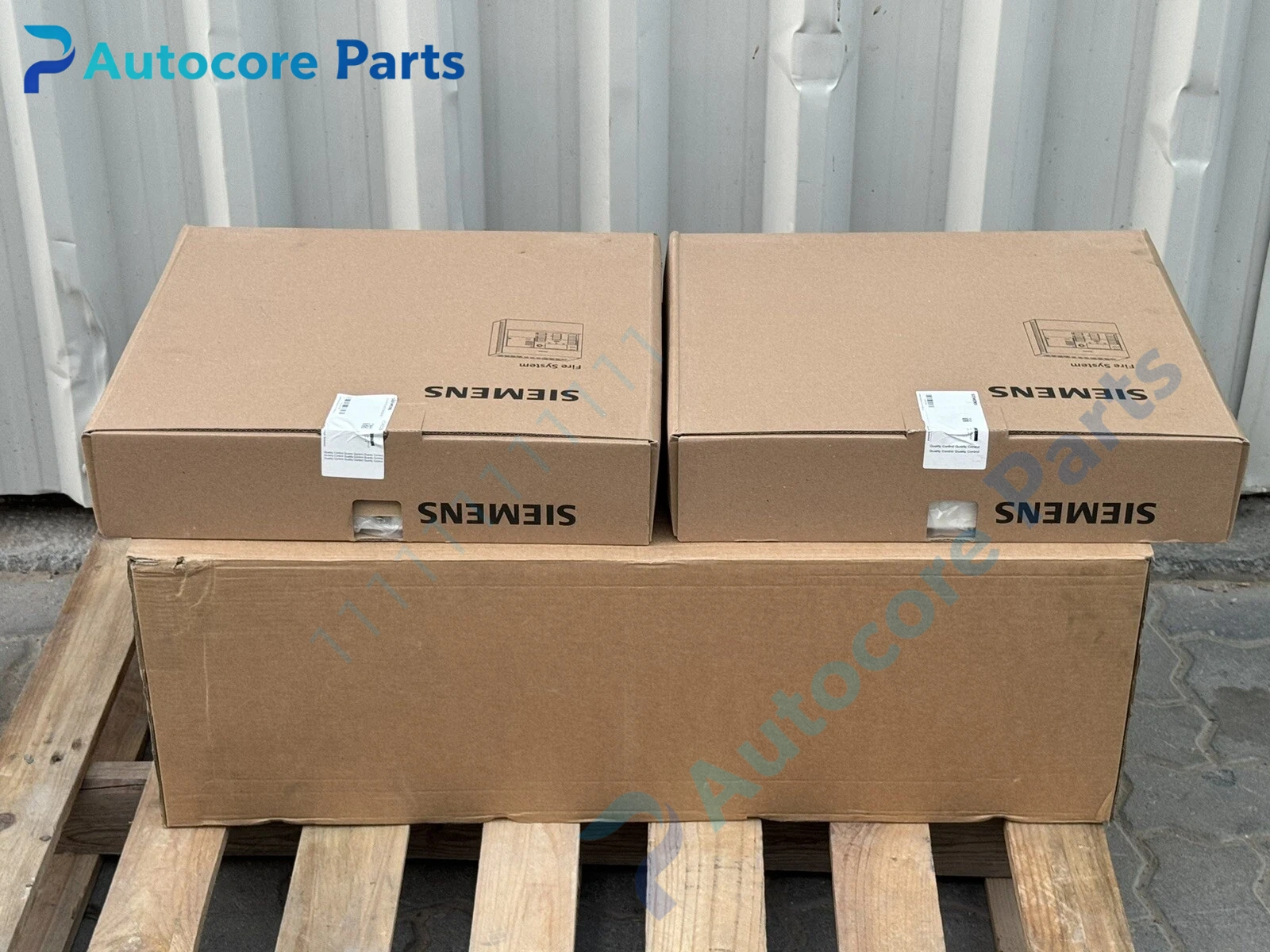

Siemens FC2060-AA Fire Control Panel Unit

Module Feature

FC2060-AA belongs to Siemens Sinteso series modular fire alarm control panel, order cross code A5Q00023048.

It is equipped with integrated operation display unit and 150W built-in power supply, the base unit carries 4 FDnet addressable detector loops, can be expanded to maximum 28 loops through optional line cards. It reserves 5 slots for expansion modules, compatible with FDnet loop card, collective signal card, programmable I/O card and horn control card. It supports FCnet/SAFEDLINK network interconnection with other fire panels, can realize fire signal collection, alarm display, relay interlock and fire equipment linkage output. Widely applied in large industrial plants, office buildings, logistics warehouses and other large fire monitoring projects.

Working principle

The panel communicates with addressable smoke detectors, heat detectors and manual call points on FDnet loops, polls each device address and reads status and concentration data.

When fire alarm or fault signal is received, the host triggers local sound-light alarm, records event log and outputs linkage signal to fire fan, shutter and fire pump interlock circuit. It continuously monitors loop short circuit, open circuit and device failure fault.

Onboard components

Main control motherboard, loop communication circuit, operation display panel, 150W power supply unit, battery charging circuit, relay output module, large metal cabinet housing, expansion card cage.

LED indicators

Front panel LEDs indicate power status, fire alarm, fault, isolation, pre-alarm and linkage action status.

Hardware self‑diagnosis

Power-on self-test and continuous diagnosis detect loop open/short, device offline, battery fault, power supply anomaly and internal module failure, store alarm and fault records.

Programming softwareSinteso engineering configuration software, used for device mapping, zone configuration, linkage logic editing, parameter download and event log export.

Electrical & Process Parameters

Model:FC2060-AA Brand:Siemens Device type:Modular addressable fire alarm control panel Built-in power:150W Base loop:4 FDnet loops, expandable up to 28 loops Max address:1512 addresses Battery:Support 2×12V 45Ah backup battery Function:Fire signal acquisition, alarm indication and fire equipment linkage control

Mechanical & Structure

Mounting:Wall mounted cabinet installation Protection class:IP30 Housing:Metal large cabinet 430mm × 796mm × 260mm

Environmental

Operating temperature:-5℃ ~ +40℃ Storage temperature:-20℃ ~ +60℃ Ambient humidity:5~95% non‑condensing Certification:CE, TÜV fire safety certification Status:Siemens original fire alarm host

Installation

Fix the cabinet on solid wall, connect main AC power and backup storage battery.

Wire FDnet detector loops and linkage control cables strictly according to fire drawing, set device address and zone information by configuration software, complete alarm and interlock function test after commissioning. Regularly test battery health and loop line insulation.

Interface

FDnet loop terminals, monitored I/O linkage terminals, AC power terminal, battery terminal, FCnet network communication port.

Diagnostic

Loop fault alarm: Line short circuit / open circuit, detector damaged.

Battery trouble: Battery aging, charging circuit failure.

Cannot communicate on network: FCnet cable broken, network parameter mismatch.

No linkage output: Interlock logic not configured, relay output damaged.

Product BriefSiemens FC2060-AA Sinteso modular fire alarm control panel, large addressable fire host for factory and commercial building fire detection and linkage system.
