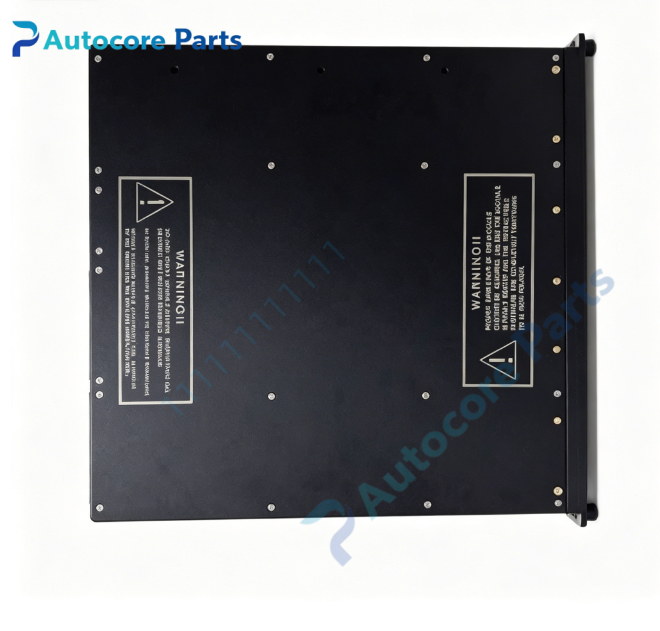

Triconex 3721 TMR Analog Input Module

Technical Specifications

Model:3721

Brand:Triconex

Product Type:TMR triple modular redundant analog input module

Channel Count:32 differential DC‑coupled analog input channels

Input Range:0‑5VDC,‑5~+5VDC;support 0‑20mA with 250Ω external shunt resistor

Resolution:12‑bit /14‑bit programmable

Update Rate:10 ms

Accuracy:＜0.15%FSR (0℃‑60℃)

Input Impedance:10MΩ minimum DC

Over‑range Protection:150VDC continuous,115VAC continuous

Isolation:800VDC field‑to‑system isolation

Architecture:2‑out‑of‑3 TMR hardware voting,three independent signal processing paths

Safety Level:SIL3 IEC61508 TÜV certified

Feature:Hot‑swap support,comprehensive channel self‑diagnosis,front‑panel PASS/FAULT/ACTIVE/FIELD LED indicator

System Compatibility:Tricon SIS V10.2 and above rack

Remark:Must install inside Tricon rack,match Tricon CPU,power supply and backplane;legacy EOL spare component

Module Form:Standard rack plug‑in module

Weight:3.70 kg

Dimension:490 mm×453 mm×68 mm

Protection Grade:IP20

Certification:SIL3,TÜV,CE

Working Temperature:‑40℃ ~ +70℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,oil & gas,power plant ESD safety interlock system,collect pressure,temperature,flow analog process signals,system maintenance and spare‑part replacement.

Product Details

3721 is high‑density TMR triple‑modular‑redundant analog input module for Triconex Tricon safety instrumented system. It acquires 32‑point differential analog field signals,adopts 2oo3 hardware voting mechanism,each signal processed by three independent circuit paths,single‑path fault will not affect safety signal acquisition.

Supports voltage signal 0‑5V /‑5~+5VDC,can receive 0‑20mA current signal by adding external 250Ω shunt resistor. Resolution can be switched between 12‑bit and 14‑bit,10ms fast update rate meets high‑speed process variable collection requirement. 800VDC field‑system isolation improves anti‑interference performance.

Hot‑swap design allows module replacement without SIS system shutdown. Front‑panel multi‑LED indicates module running,fault and field channel status. Widely deployed in petrochemical,oil‑gas,thermal‑power SIS safety interlock racks for pressure,temperature,flow safety‑related analog signal acquisition.

Note:This is legacy EOL spare component,widely used for safety system spare‑part replacement.
