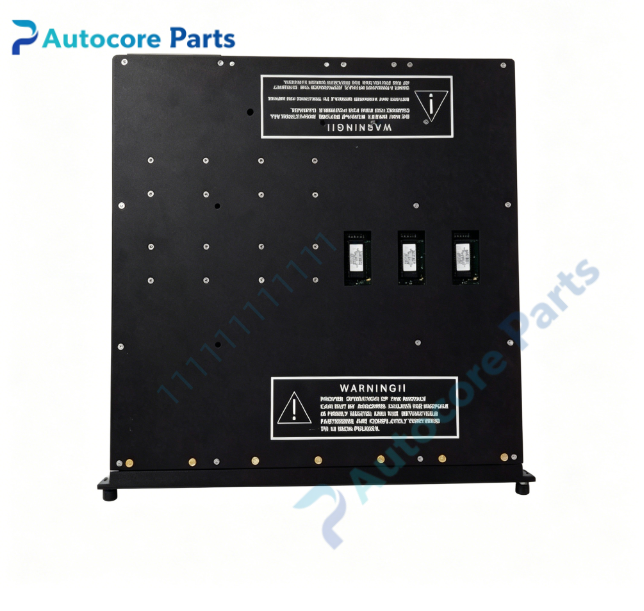

Triconex 3604E TMR Digital Output Module

Technical Specifications

Model:3604E

Brand:Triconex

Product Type:TMR triple modular redundant digital output module

Channel Count:16 isolated non‑commoned digital output channels

Output Voltage:22‑45 VDC(Nominal 24VDC)

Current Rating:2A continuous per channel;10A surge for 10ms

Isolation:1500VDC channel‑to‑channel & channel‑to‑system isolation

Architecture:2‑out‑of‑3 TMR hardware voting,three independent signal processing paths

Diagnosis:Loop read‑back,open‑circuit,short‑circuit,fuse fault detection

Safety Level:SIL3 IEC61508 TÜV certified

Feature:Hot‑swap support,on‑board thermal fold‑back protection,front‑panel LED status & fault indicator

System Compatibility:Tricon SIS safety system rack

Remark:Must install inside Tricon rack,match Tricon CPU,power supply,backplane and external termination panel;legacy EOL spare component

Module Form:Standard rack plug‑in module

Weight:3.65 kg

Dimension:490 mm×453 mm×68 mm

Protection Grade:IP20

Certification:SIL3,TÜV,CE

Working Temperature:‑40℃ ~ +70℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,oil & gas,power plant ESD emergency shutdown,BMS burner management,F&G fire‑gas safety interlock system,drive solenoid valves,relays,alarm devices,system maintenance and spare‑part replacement.

Product Details

3604E is high‑density TMR triple‑modular‑redundant digital output module for Triconex Tricon safety instrumented system. It provides 16‑point independent non‑commoned 24VDC field driving capacity,adopts 2oo3 hardware voting mechanism,each output controlled by three independent circuit paths,single‑path fault will not trigger unsafe output state.

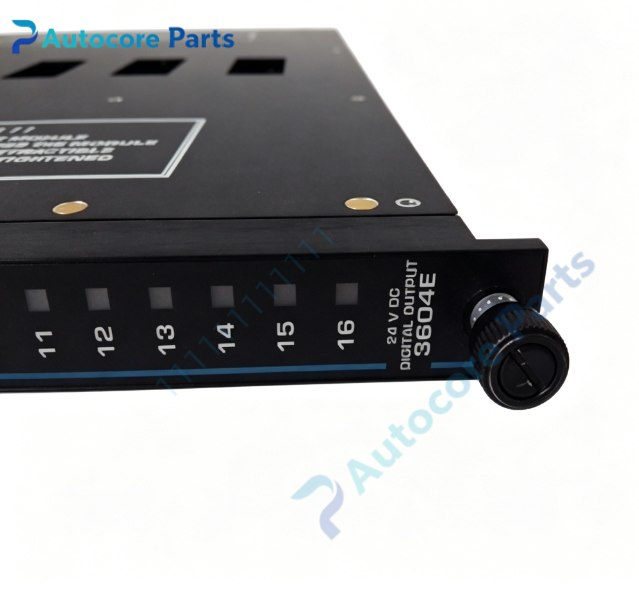

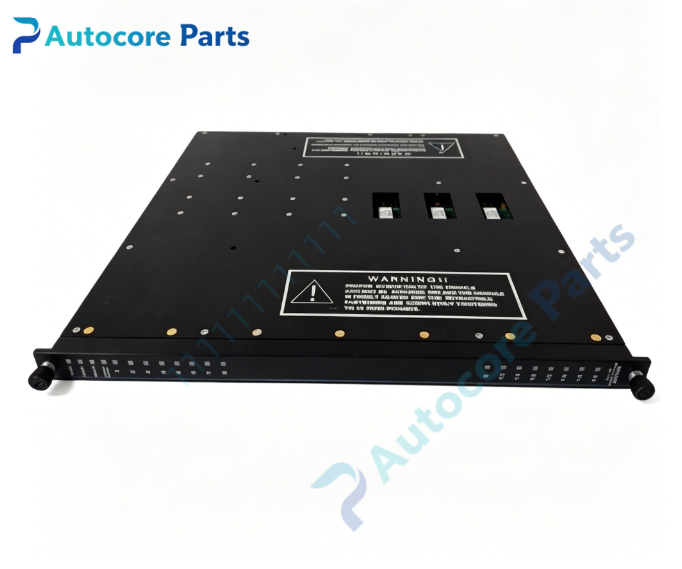

Each channel supports 2A continuous driving current and 10A short‑time surge current,suitable for directly driving solenoid valves without intermediate relay. Built‑in loop read‑back diagnosis function,can detect open‑circuit,short‑circuit and fuse fault of field loop. Thermal fold‑back protection reduces output current automatically under over‑temperature condition. Hot‑swap design allows module replacement without SIS system shutdown. Front‑panel LED displays PASS,FAULT and channel status,needs to cooperate with external termination panel for field wiring.

Mainly used for safety‑critical loop output of ESD,BMS,F&G systems to control safety valves,interlock relays and on‑site alarm units. Widely deployed in petrochemical,oil‑gas,thermal‑power SIS safety interlock racks.

Note:This is legacy EOL spare component,widely used for safety system spare‑part replacement.
