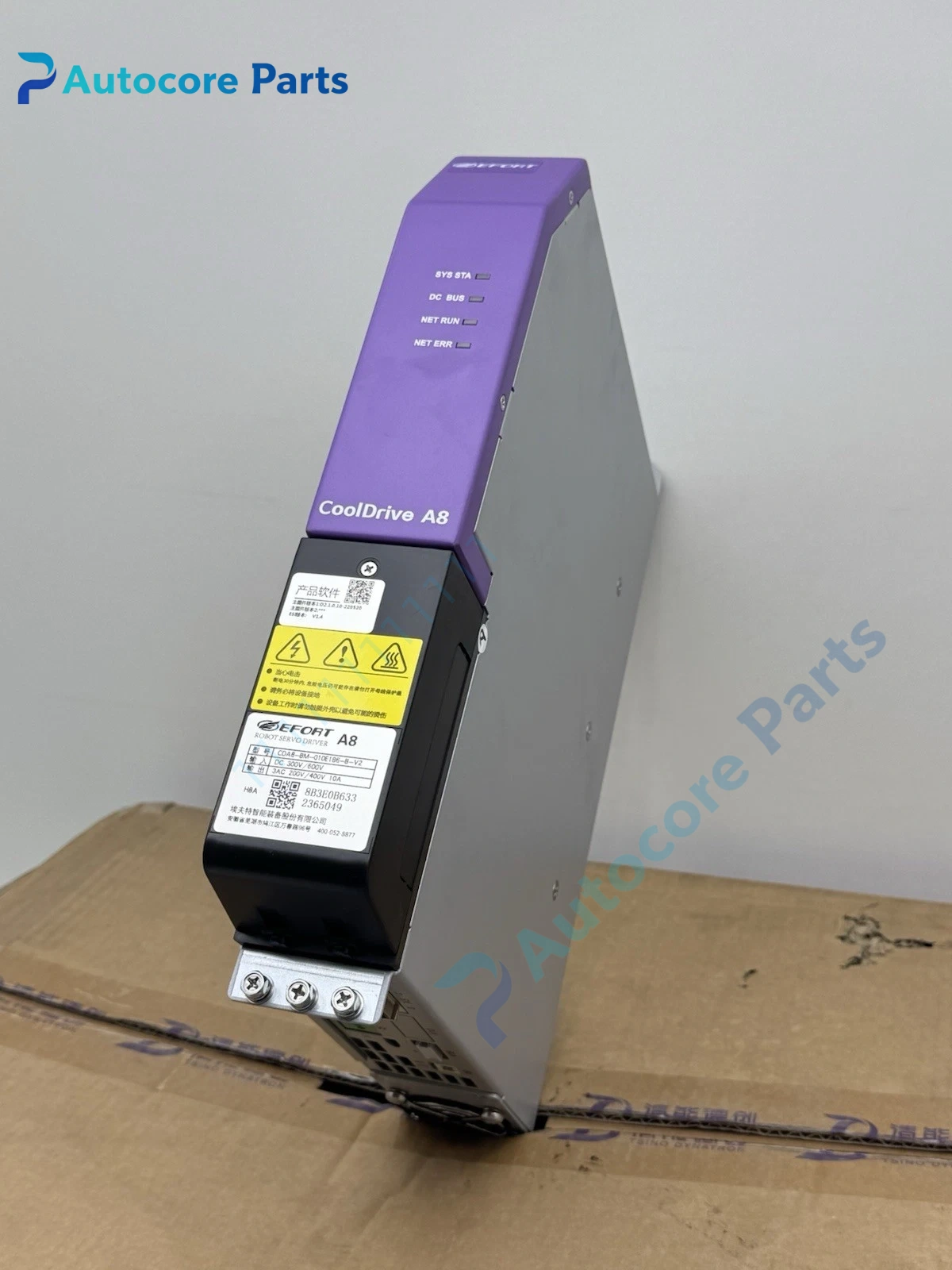

Tsino Dynatron CDA8-BM-010E1B6-B-V2 CoolDrive A8 Servo Drive Unit

Feature & Principle

This book-style servo drive adopts high-speed current loop control, receives position command via EtherCAT bus. It outputs three-phase AC to drive robot joint servo motor, supports high-precision position, speed and torque control. Built-in overcurrent, overvoltage, overheat and encoder fault protection, compact stacked installation design for robot control cabinet.

Specifications

Model: CDA8-BM-010E1B6-B-V2 Brand: Tsino Dynatron (Qingneng Dechuang) Series: CoolDrive A8 Bus: EtherCAT Power supply: DC 300–600V Output: 3AC 200/400V Mounting: DIN rail stacked installation Enclosure: IP20 Certification: CE

Components & Diagnostics

IGBT power board, main control board, EtherCAT communication interface, encoder port, power terminal and status LED. Common faults: EtherCAT communication dropout, overload alarm, encoder signal loss, over-temperature alarm and power module damage.

Product Brief

CDA8-BM-010E1B6-B-V2 servo drive, Tsino Dynatron robot drive spare widely used for EFORT multi-joint industrial robot joint axis replacement and maintenance.
