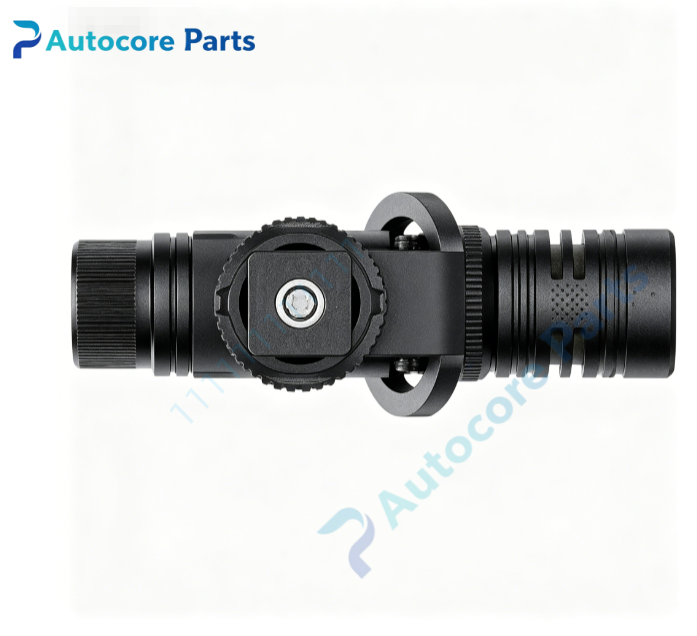

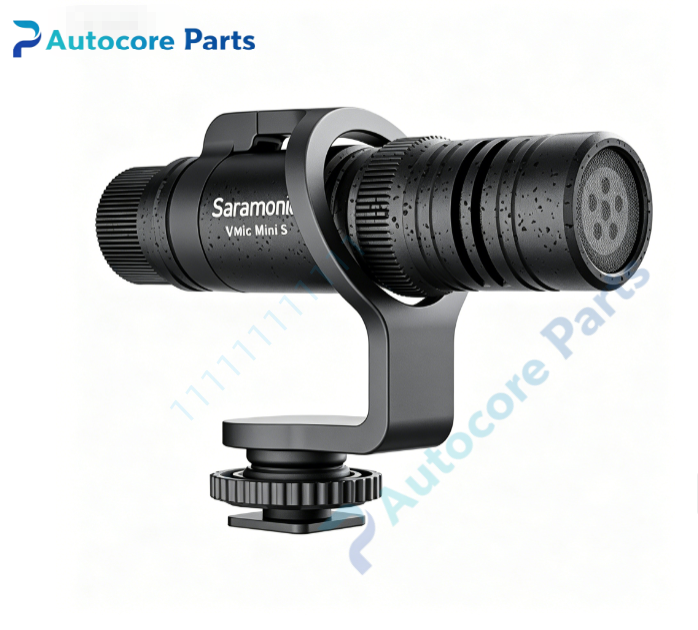

VMIC VMICMINI On-Camera Shotgun Microphone

Module Feature

VMICMINI is a compact lightweight on-camera shotgun condenser microphone developed by Saramonic. It adopts supercardioid directional pickup pattern to suppress side and rear ambient noise and focus on front sound source. Pure plug-and-play design,built-in preamplifier and no internal battery needed,powered directly by camera or smartphone audio interface. Integrated shock mount isolates mechanical vibration and handling rumble noise. Equipped with soft foam windscreen to reduce wind interference for outdoor recording. Two gold-plated 3.5 mm coiled cables are included: TRS for cameras/camcorders and TRRS for smartphones/tablets. Rugged all-aluminum alloy housing,shock and vibration screened for field mobile shooting environment,widely used in field interview,documentary,vlog and portable hardware-in-loop test system audio acquisition.

Working principle

Sound waves enter microphone capsule and convert acoustic signals into weak analog electrical signals. Onboard preamplifier amplifies audio signal to matched output level. Supercardioid acoustic tube attenuates off-axis background noise. Integrated shock mount cuts vibration transmission from camera body. Analog audio signal transmits via 3.5 mm TRS/TRRS cable to recording device.

Onboard components

Condenser microphone capsule,built-in preamplifier circuit,acoustic interference tube,integrated shock mount assembly,foam windscreen,3.5 mm TRS and TRRS coiled output cables,all metal aluminum housing.

LED indicators

No LED indicators,powered passively from host device.

Hardware self-diagnosis

Visual inspection of housing,capsule and cables;audio signal output continuity test;3.5 mm connector pin contact verification.

Programming software

No driver or configuration software required,pure plug-and-play hardware operation.

Electrical & Process Parameters

Model: VMICMINI Brand: Saramonic Device type: Compact on-camera supercardioid shotgun condenser microphone Polar pattern: Supercardioid Frequency response:75 Hz ~ 20 kHz Sensitivity:-35 dB +/-3 dB (0 dB=1 V/Pa @1 kHz) Power supply: Phantom power from camera/phone audio jack,no built-in battery Audio interface:3.5 mm TRS (camera),3.5 mm TRRS (mobile) Control mode: Passive plug-and-play,integrated shock mount vibration isolation,foam windscreen wind noise reduction Cooling: Natural convection cooling Protection: Metal housing mechanical protection Mounting: Standard camera hot shoe locking mount Protection class: Aluminum alloy body with foam windscreen

Mechanical & Structure

Mounting: Camera hot shoe mount with integrated shock mount Protection class: Compact aluminum alloy body

Environmental

Operating temperature:-10℃ ~ +50℃ Storage temperature:-40℃ ~ +70℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: Saramonic compact plug-and-play on-camera mini shotgun microphone

Installation

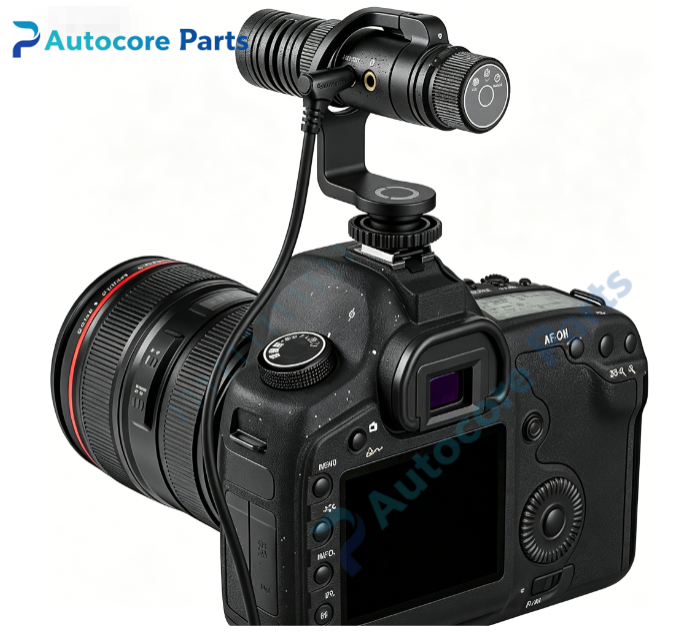

Align integrated shock mount with camera hot shoe and tighten locking knob. Install foam windscreen over microphone head. Select matched cable: TRS for camera,TRRS for smartphone. Insert cable 3.5 mm plug into microphone and recording device audio input. Start recording and test audio signal before formal capture.

Interface

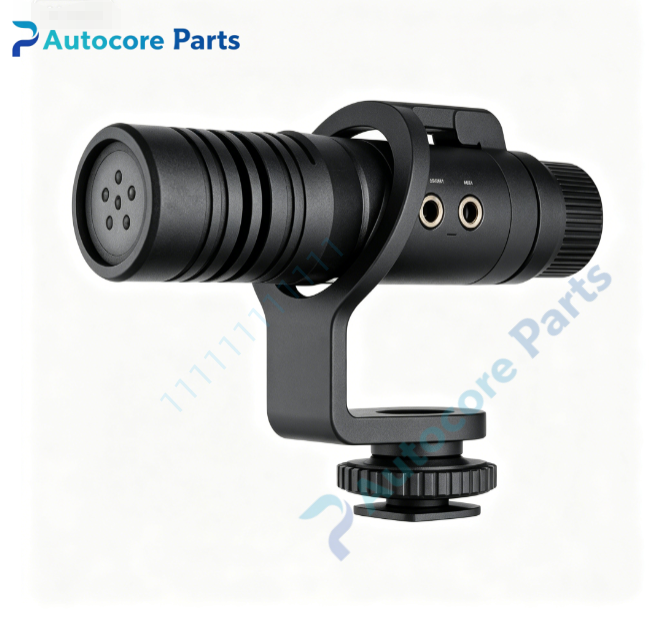

3.5 mm microphone audio input socket,TRS & TRRS coiled output cables.

Diagnostic

No audio output: incompatible TRS/TRRS cable or poor jack contact. Heavy wind noise: foam windscreen missing or damaged. Vibration rumble: shock mount loose or over-tightened mounting screw. Muffled sound: capsule blocked by dust or windscreen deformation.

Product Brief

Saramonic VMICMINI compact on-camera shotgun microphone,supercardioid pickup,passive plug-and-play without battery,integrated shock mount and dual TRS/TRRS cables,lightweight aluminum body for portable field interview and mobile test system audio collection.
