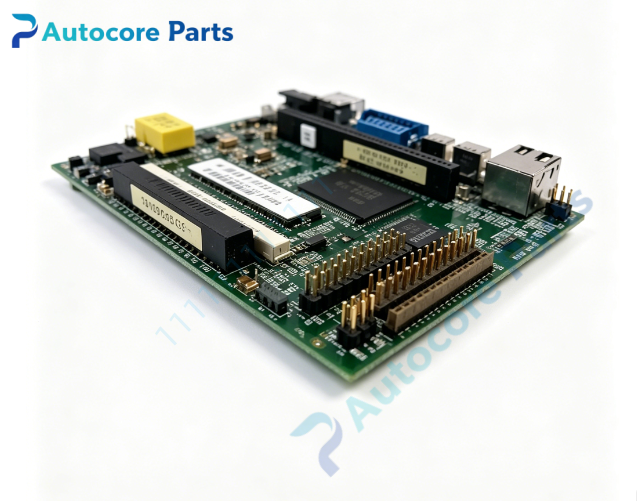

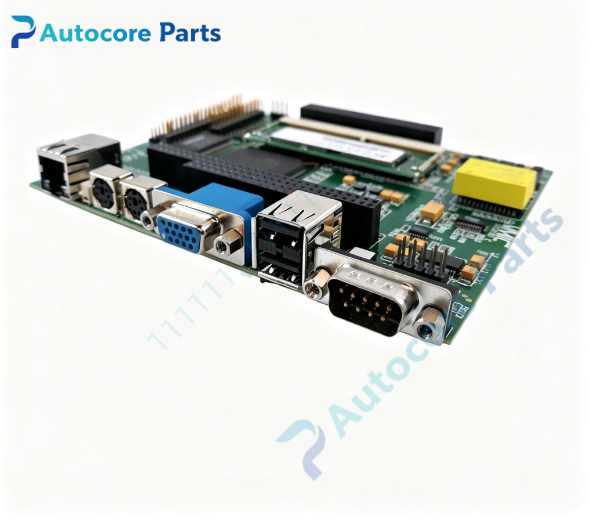

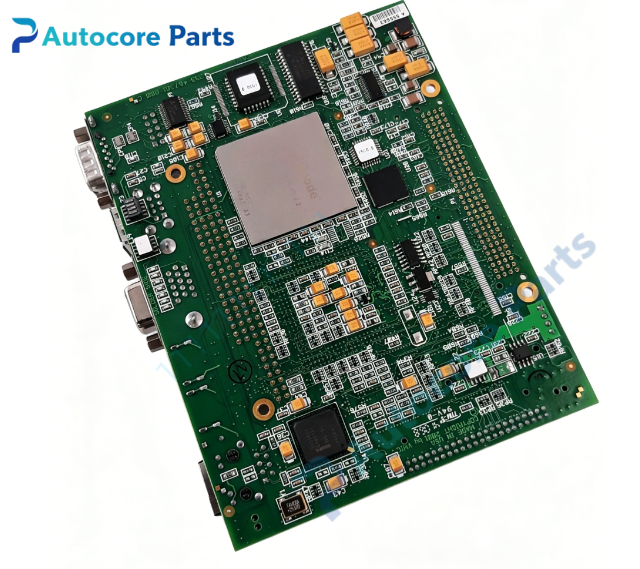

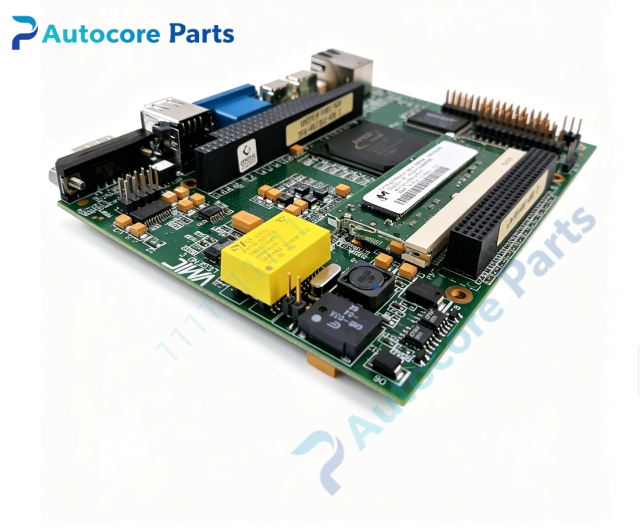

VMIC VMIPC4-7301 Embedded Single Board Computer

Module Feature

VMIC VMIPC4-7301 Legend B is a compact low-power X86 embedded single board computer built around National Semiconductor Geode GX1 processor delivering Pentium MMX equivalent performance. Low power consumption eliminates requirement for active fan cooling. Integrated onboard peripherals including graphics controller, Ethernet interface, serial UART ports, IDE storage interface and keyboard/mouse controller. Flash BIOS supports in-field firmware upgrade. Rugged PCB construction with excellent shock and vibration tolerance, designed for space-constrained embedded control, data acquisition, test & measurement and aerospace applications.

Working principle

The Geode GX1 processor executes embedded operating system and user application code. System memory and onboard peripheral controllers are mapped into the CPU address space. Integrated graphics unit drives display output; Ethernet and serial controllers handle external communication. Flash memory stores BIOS firmware for system boot. Hardware watchdog timer automatically resets the board upon software lockup to improve system reliability.

Onboard components

National Semiconductor Geode GX1 CPU, onboard SDRAM, integrated graphics controller, Ethernet PHY chip, multi-channel UART, flash BIOS chip, watchdog timer circuit, front panel I/O connectors, status LED indicators.

LED indicators

Front panel LED indicators for power status, CPU heartbeat, Ethernet link and activity, system fault warning.

Hardware self-diagnosis

Visual inspection of PCB, front panel connectors and solder joints; power-on POST self-test; memory read/write cyclic test; Ethernet loopback verification; serial port communication test; BIOS and watchdog function validation.

Programming software

Supports VxWorks, Linux, Windows embedded OS; VMIC board configuration utility, diagnostic firmware and driver package.

Electrical & Process Parameters

Model: VMIPC4-7301 Device type: Compact embedded single board computer Processor: National Semiconductor Geode GX1 Memory: Onboard SDRAM Control mode: X86 architecture, hardware watchdog Power supply: +5 V input Cooling: Passive convection cooling Protection: Over current, ESD protection, watchdog reset Mounting: Compact board mounting for embedded chassis Protection class: Conformal coating optional

Mechanical & Structure

Mounting: Compact embedded single board Protection class: PCB with optional conformal coating

Environmental

Operating temperature: 0℃ ~ +65℃ Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: VMIC Legend B low power embedded SBC

Installation

Follow ESD safety procedure before handling. Power off embedded chassis completely. Secure board inside chassis with mounting fasteners. Connect front panel display, Ethernet, serial and keyboard/mouse cables. Power on chassis and enter BIOS to configure boot sequence and watchdog settings. Install operating system and VMIC drivers, run full board diagnostic before commissioning.

Interface

10/100 Ethernet port, RS232 serial ports, analog video output, PS/2 keyboard and mouse, IDE storage connector, general purpose I/O pins.

Diagnostic

Board fails POST: faulty SDRAM, defective CPU, abnormal input power. Ethernet no link: damaged cable, PHY hardware fault, wrong network configuration. Watchdog not triggering: incorrect BIOS watchdog setup. Serial port communication error: wrong baud rate, parity or connector damage.

Product Brief

VMIPC4-7301 VMIC Legend B low power X86 embedded single board computer,Geode GX1 CPU,passive cooling,for compact industrial control,data acquisition and aerospace embedded systems.
