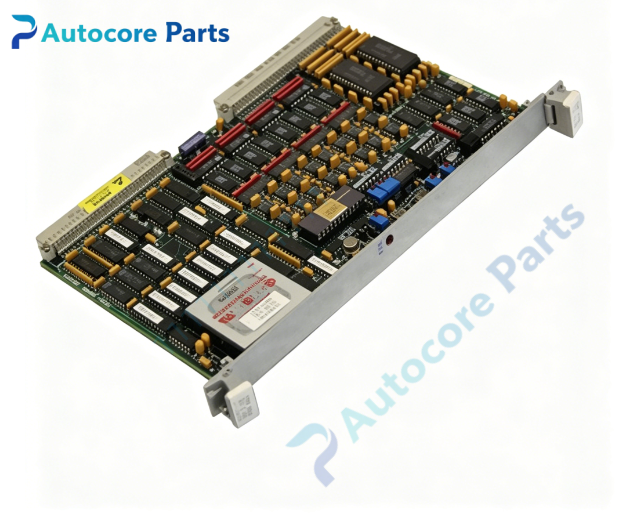

VMIC 602937-04 Analog I/O PCB Assembly

Module Feature

VMIC 602937-04 is the PCB assembly for VMIVME-4512 VMEbus process analog I/O board, specially designed for semiconductor SVG wafer processing equipment. It provides multi-channel high-precision analog input and analog output signals for pressure, temperature, flow and gas valve closed-loop control. Onboard signal conditioning circuit for noise filtering and overvoltage protection, with high channel isolation to suppress crosstalk between different process loops. Rugged board construction, suitable for continuous operation in semiconductor fabrication environment. Widely used for analog measurement and control in wafer coating and track systems.

Working principle

External process analog signals pass through front-end signal conditioning and isolation circuit, then converted to digital data by high-resolution ADC for VME bus host reading. Digital commands from VME master are converted to standard analog voltage/current signals via DAC to drive field actuators. Onboard FPGA manages channel sequencing, data buffering and VMEbus interface handshake, supporting synchronous sampling for multi-parameter process control.

Onboard components

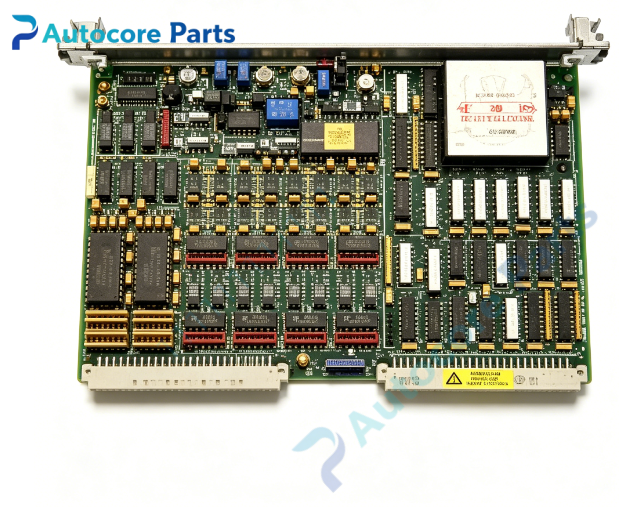

Multi-channel high precision ADC & DAC, analog signal conditioning amplifier, isolation circuit, anti-EMI filter, FPGA logic chip, VMEbus transceiver, channel status register, status LED array, external field signal connector.

LED indicators

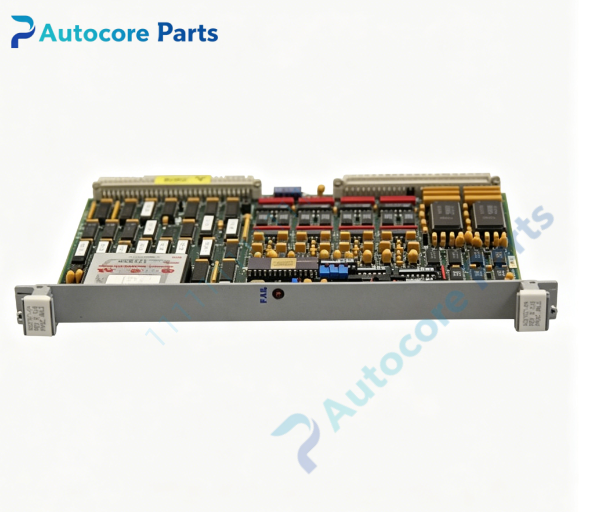

Front panel LED indicators for board power, channel active status, analog signal fault and VME bus communication status.

Hardware self-diagnosis

Visual inspection of PCB, connectors and soldering joints; board ID register readback test; ADC/DAC loopback test for each channel; analog range calibration verification; VME read/write communication test; channel isolation resistance measurement.

Programming software

VMIC VME device driver library, analog channel configuration and calibration utility, compatible with VxWorks, Linux real-time operating systems.

Electrical & Process Parameters

Model: 602937-04 (VMIVME-4512 PCB) Device type: VMEbus multi-channel analog I/O module Bus standard: VMEbus Signal type: Analog input / analog output Control mode: VME master/slave access, synchronous sampling Power supply: +5 V / ±15 V from VME backplane Cooling: Convection cooling Protection: Over voltage, over current, ESD and channel isolation protection Mounting: Standard 6U VME front panel locking Protection class: Conformal coating optional

Mechanical & Structure

Mounting: Standard 6U VME single slot Eurocard Protection class: PCB with optional conformal coating

Environmental

Operating temperature: 0℃ ~ +65℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: VMIC VMIVME-4512 analog I/O PCB assembly

Installation

Follow ESD safety procedure before handling. Fully power off VME chassis. Insert board into vacant 6U VME slot and lock front panel ejector latches. Connect field analog sensor and actuator wiring to front panel I/O connector. Load VMIC driver, run channel calibration and loopback test before putting into process operation.

Interface

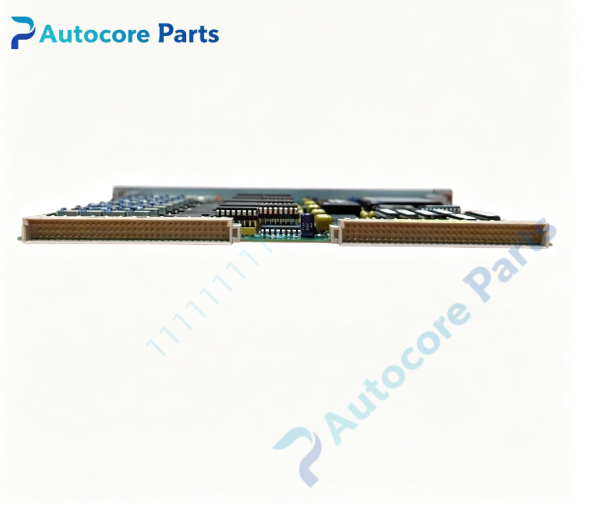

VME J1/J2 backplane connector, multi-channel analog field I/O terminal, fault status signal pins.

Diagnostic

Board not recognized: poor VME backplane contact, damaged edge connector, power supply abnormality. Analog channel offset error: calibration drift, signal conditioning circuit aging, wiring ground loop interference. Channel no output: DAC hardware fault, broken field wiring, over-range protection triggered. VME communication timeout: bus termination error, FPGA firmware mismatch.

Product Brief

602937-04 VMIC VMIVME-4512 analog I/O PCB,high precision multi-channel analog input and output,for semiconductor SVG wafer track process measurement and closed-loop control systems.
