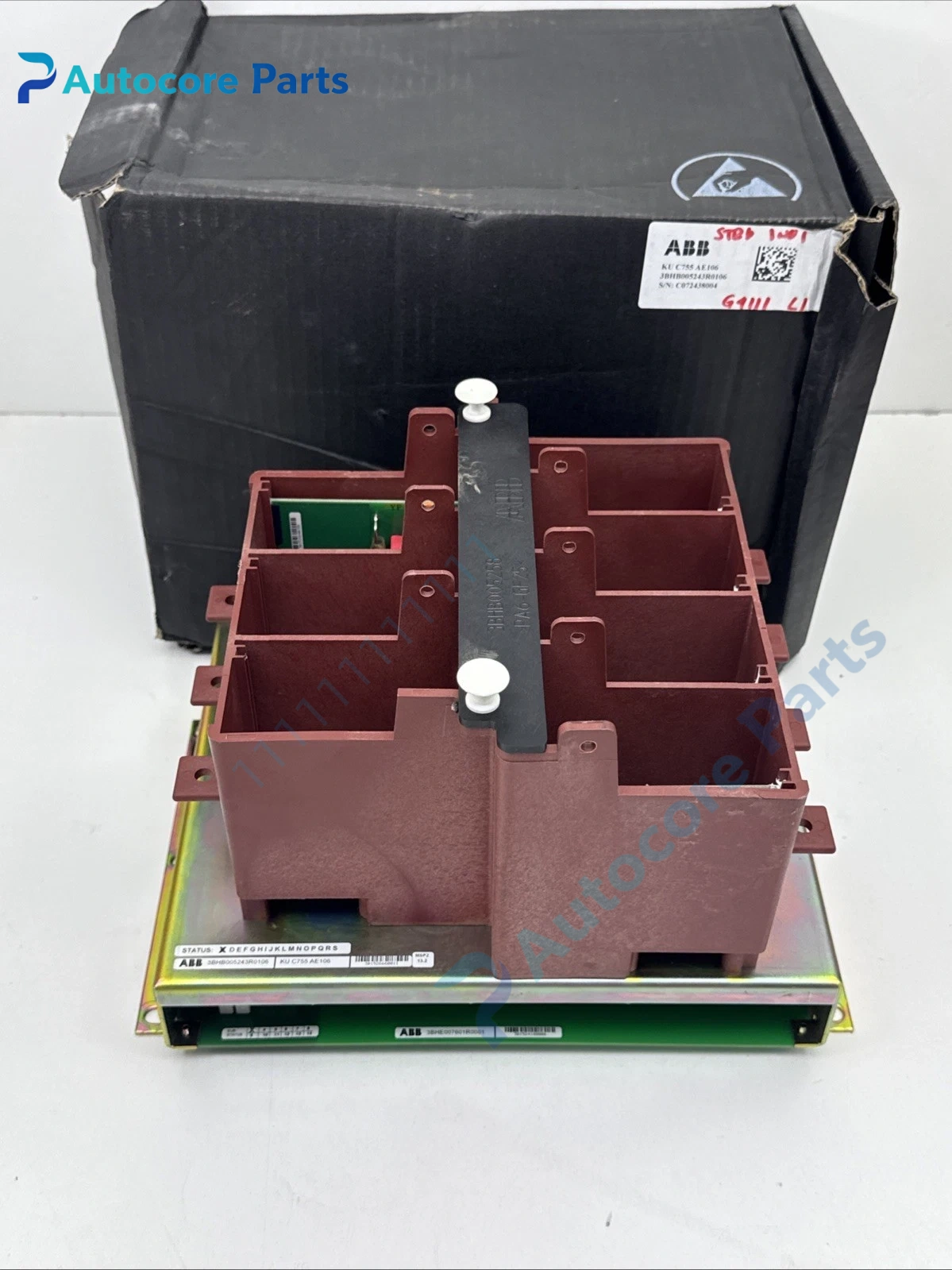

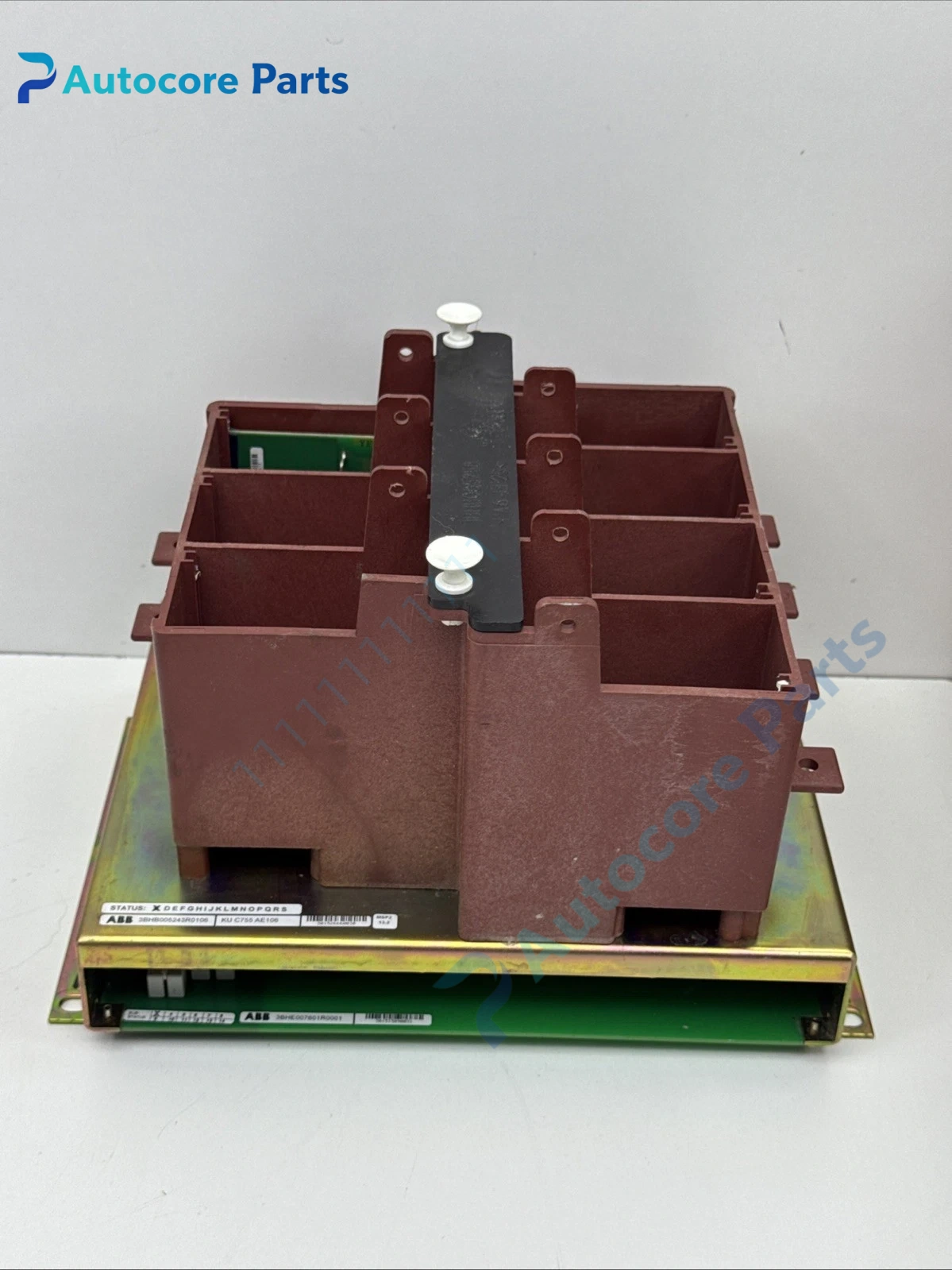

ABB 3BHB005243R0106 KUC755AE106 Gate Unit Power Supply Module

Feature & Principle

Special power supply module for ACS6000 medium voltage frequency converter, provides stable power for IGBT gate drive unit, isolates and distributes drive power to control power semiconductor switching.

Specifications

Model: 3BHB005243R0106 Brand: ABB Code: KUC755AE106 Series: ACS6000 Type: GUSP Gate Unit Power Supply Mounting: Rack installation Certification: CE

Components & Diagnostics

Power conversion board, isolation transformer, status LED, terminal connector and protection circuit. Common faults: output voltage abnormal, overheat alarm, gate drive power loss.

Product Brief

3BHB005243R0106 power module, ABB ACS6000 medium voltage drive gate power supply spare for heavy industry variable speed control.
