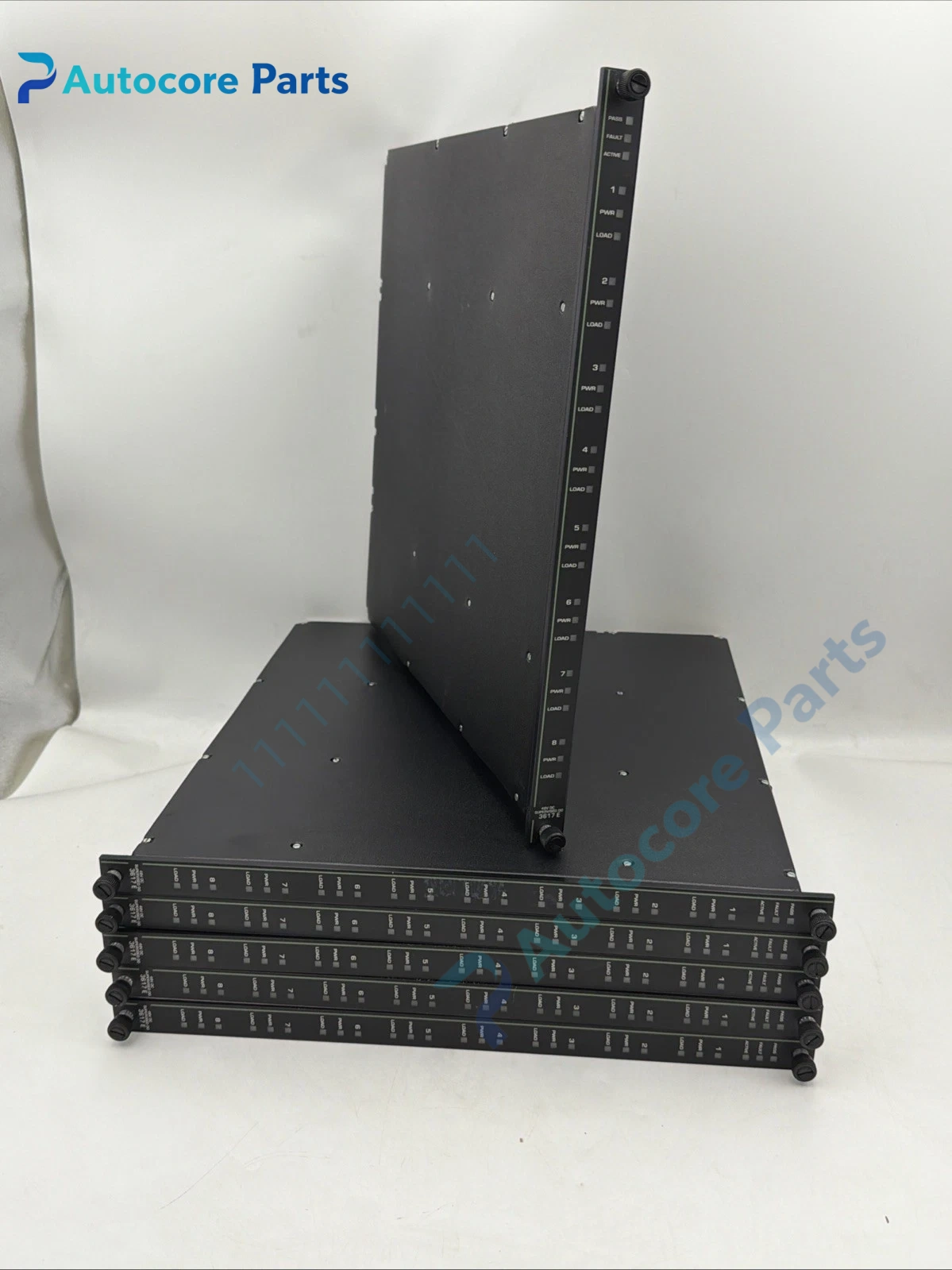

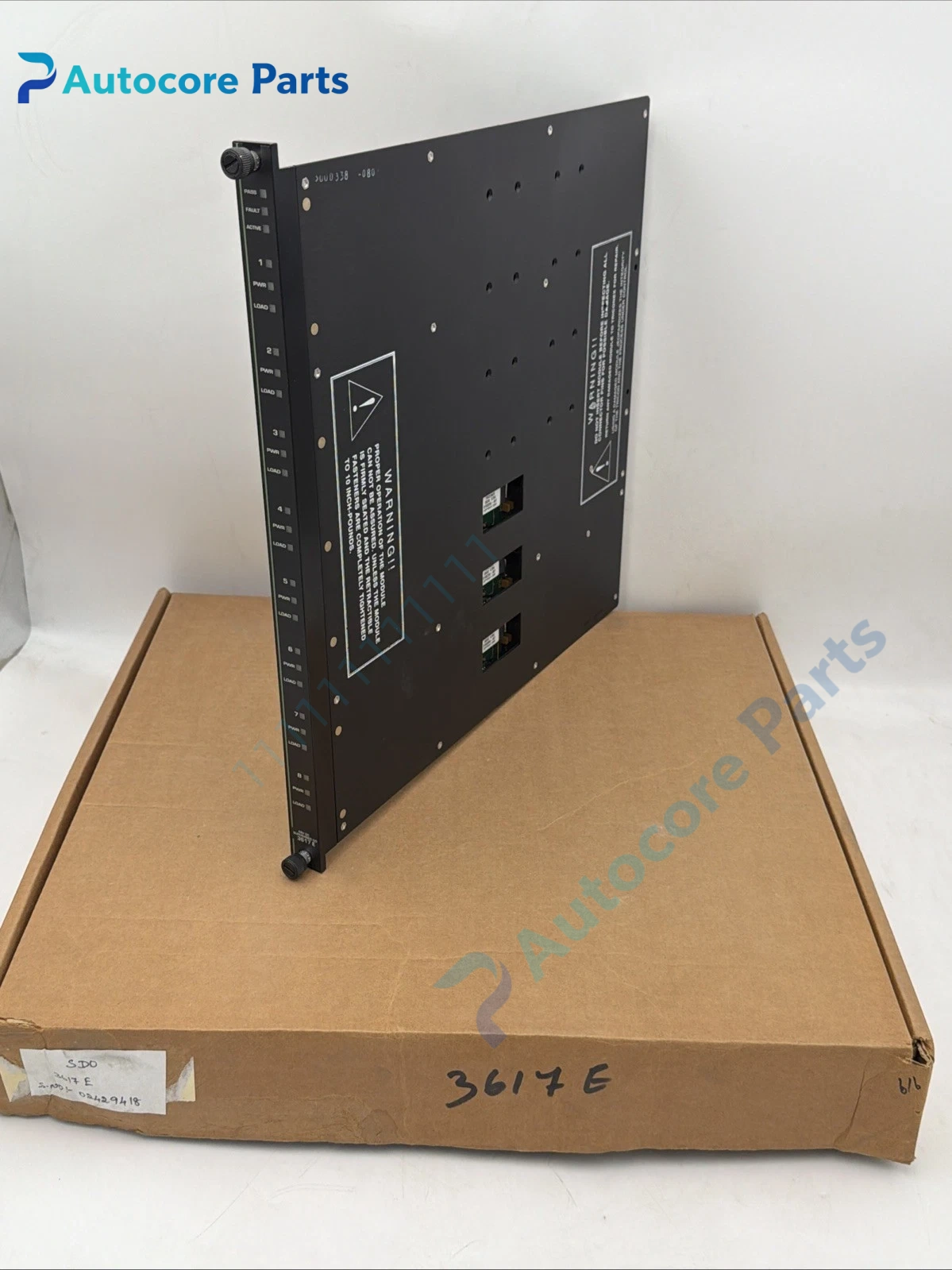

Triconex 3617E Supervised Digital Output Module Unit

Feature & Principle

Adopts triple modular redundant TMR architecture, supervised digital output channel, supports 48V DC field load, monitors circuit wire break and short circuit to ensure safety trip function.

Specifications

Model: 3617E Brand: Triconex Architecture: TMR Rated Voltage: 48V DC Type: Supervised Digital Output System: Tricon SIS Certification: SIL3, CE

Components & Diagnostics

Three redundant control boards, output drive circuit, status LED and field terminal connector. Common faults: channel short circuit, open circuit alarm, TMR voting mismatch.

Product Brief

3617E output module, Triconex Tricon SIS safety instrumented system spare for petrochemical and power safety interlock control.
