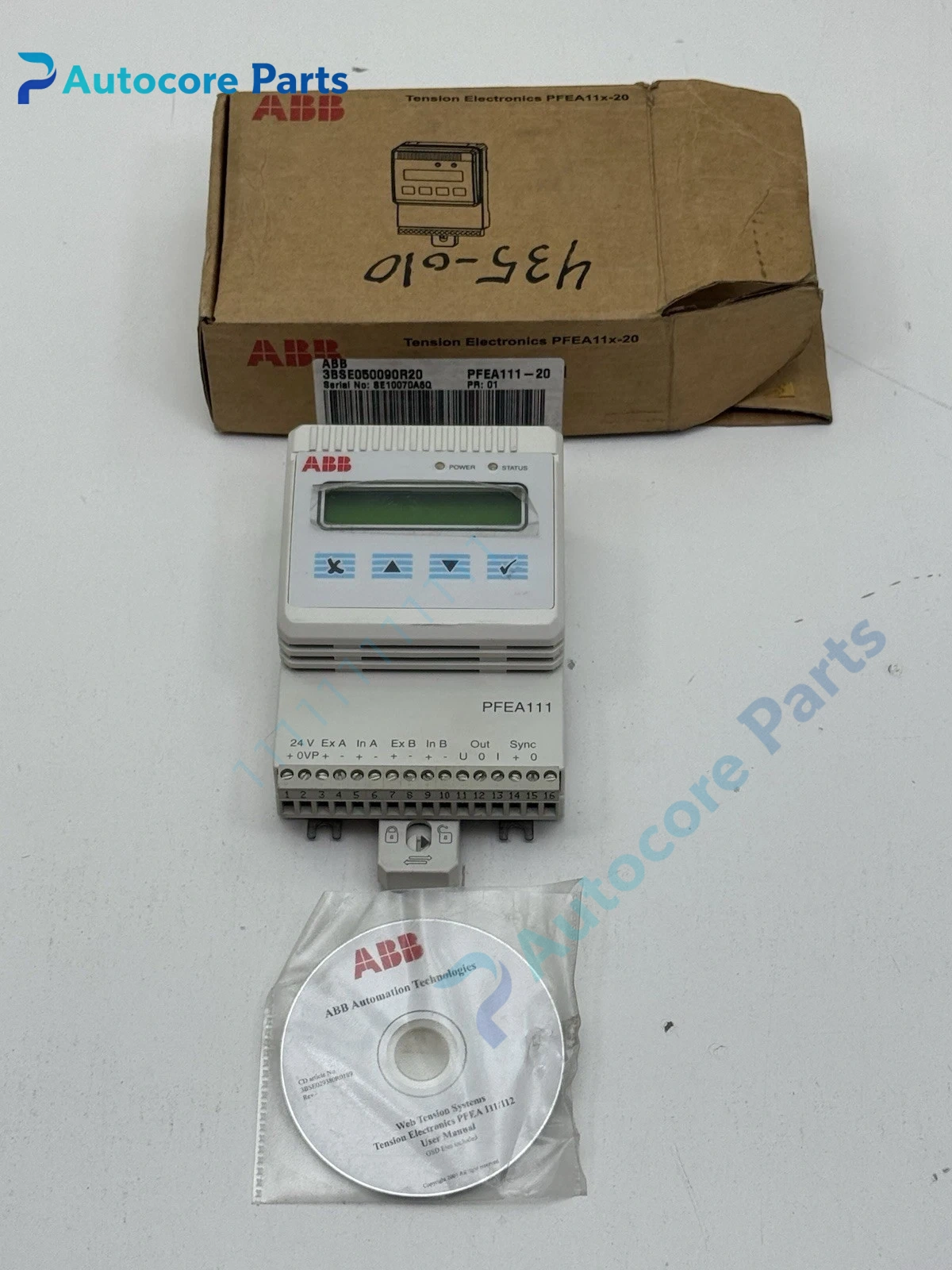

ABB 3BSE050090R20 PFEA111-20 Tension Control Electronic Unit

Feature & Principle

High precision tension electronic module, receives signal from two tension load cells, calculates tension value and outputs analog signal with adjustable filtering, used to stabilize tension for unwinding and rewinding process.

Specifications

Model: 3BSE050090R20 Brand: ABB Type: PFEA111-20 Input: 2 load cell channels Output: 0-10V, 4-20mA Power: 24V DC Mounting: DIN rail Certification: CE

Components & Diagnostics

Signal processing board, LCD display, operation keypad, terminal block and status LED. Common faults: load cell signal drift, analog output deviation, display no response.

Product Brief

3BSE050090R20 tension electronics, ABB PFEA111-20 tension measuring spare used for paper, film, textile and printing winding machines.
