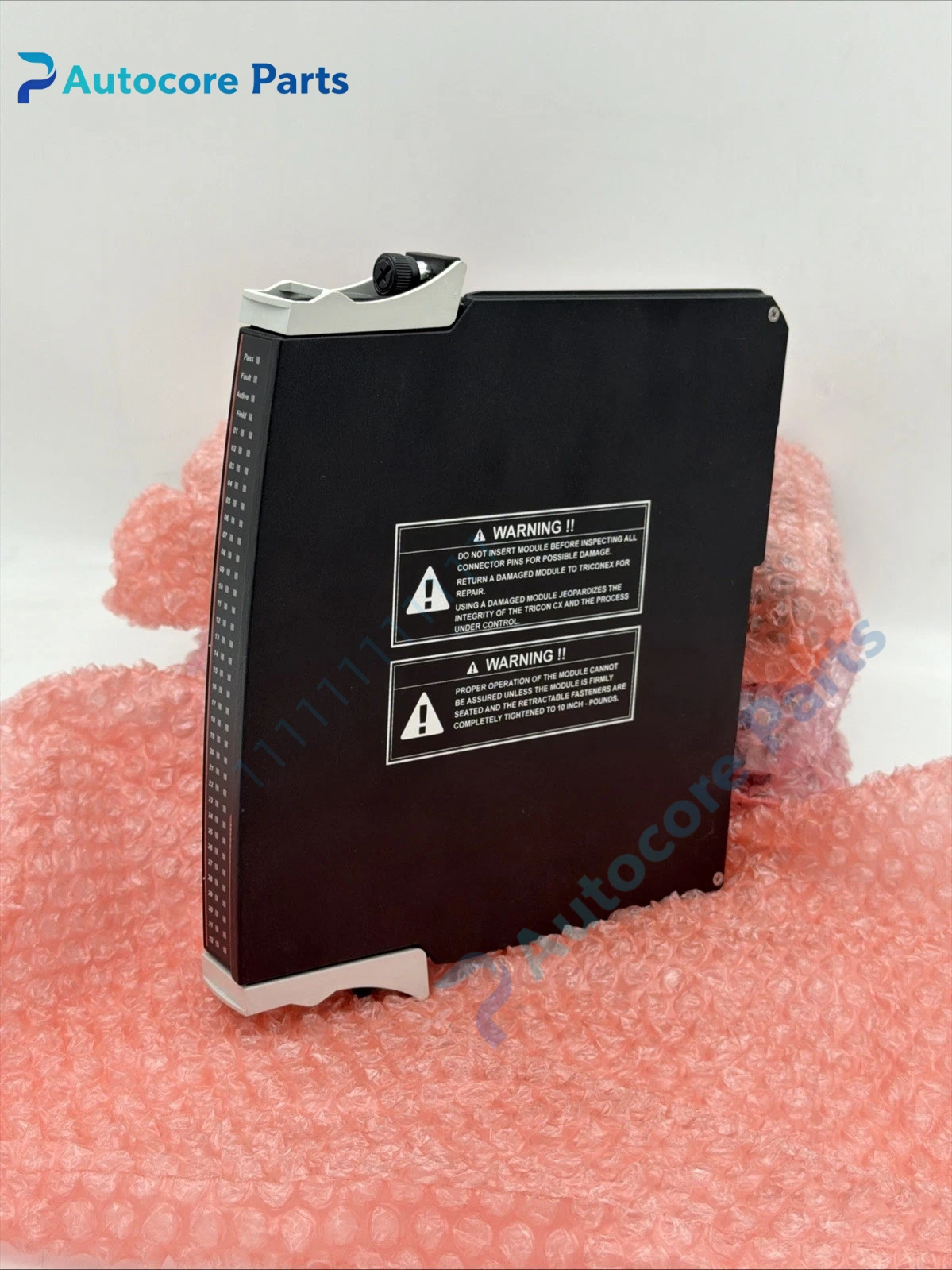

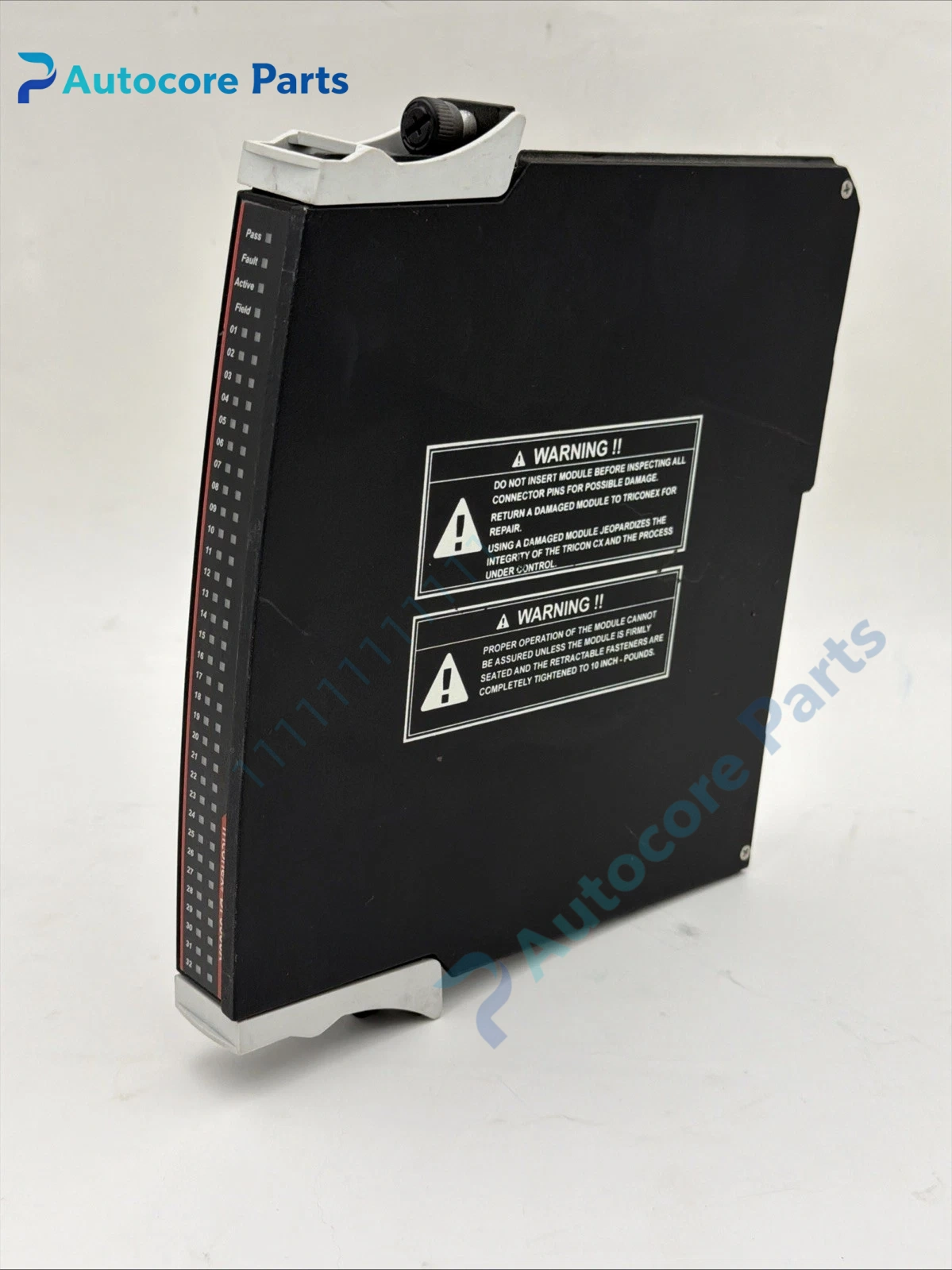

Triconex 3506X 32CH Digital Input Module Unit

Feature & Principle

Triple modular redundant digital input module, collects 24VDC discrete field signals, adopts three-channel voting logic, supports wiring fault supervision to guarantee safety signal acquisition.

Specifications

Model: 3506X Brand: Triconex Channels: 32 Input Voltage: 24V DC Architecture: TMR System: Tricon CX Certification: SIL3, CE

Components & Diagnostics

Three redundant input boards, channel status LED, backplane connector and D-Sub field port. Common faults: channel open/short alarm, voting mismatch, signal sampling abnormal.

Product Brief

3506X input module, Triconex Tricon CX SIS safety instrumented system spare for petrochemical and power interlock monitoring.
