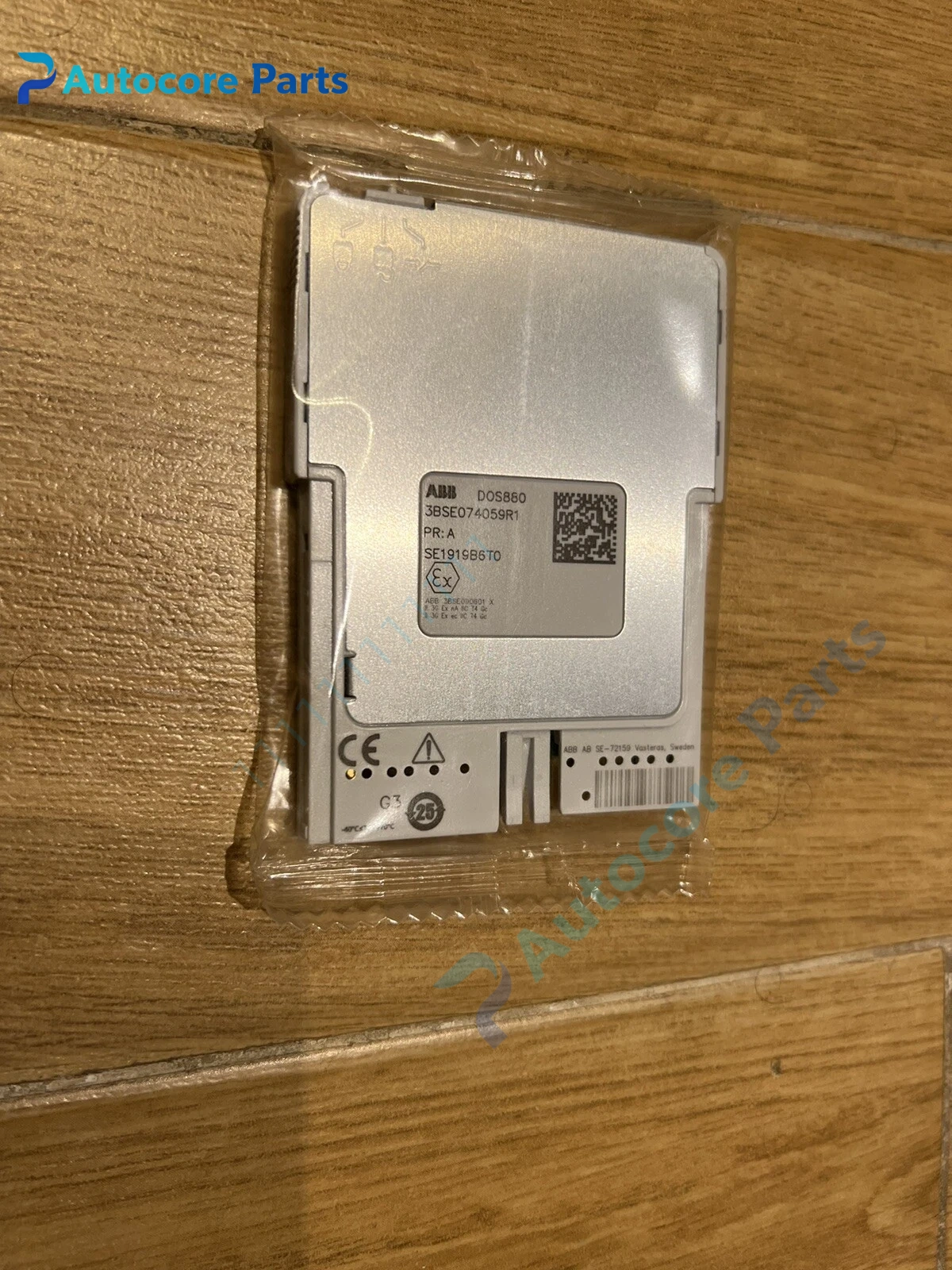

ABB 3BSE074059R1 DOS880 SIL3 Digital Output Module Unit

Module Feature

3BSE074059R1 is the part number of ABB DOS880 high integrity digital output module under Select I/O family, compatible with ABB Ability System 800xA DCS platform.

It provides one 24V DC, 0.6A current-sourcing output channel for 2-wire field safety devices. It is certified to IEC61508 SIL3, suitable for safety instrumented system control loops. It supports hot-swap replacement, channel short-circuit protection with electronic current limiting, built-in freewheeling diode for inductive load suppression. Galvanic isolation is adopted to improve anti-interference capability. It can be configured for redundant application, and is widely stocked as maintenance spare for petrochemical, power plant and oil & gas SIS safety cabinet.

Working principle

The module receives safety command from the 800xA controller via Select I/O Ethernet bus.

When output is activated, the channel outputs 24V DC driving current to energize field solenoid valve, trip relay or other 2-wire safety equipment. Continuous loop diagnosis detects short circuit, overload and wiring fault, and uploads diagnostic information to the controller and HMI. If a dangerous fault is detected, the module will go to safe state automatically.

Onboard components

Bus communication transceiver, safety logic CPU, galvanic isolation circuit, current limiting drive circuit, inductive load suppression diode, fault diagnosis circuit, status LED indicators, terminal block and coated PCB.

LED indicators

Green LED: module power and run status Yellow LED: channel active Red LED: fault / diagnostic trouble

Hardware self‑diagnosis

Built-in supervision detects bus communication loss, channel short circuit, overload, internal hardware fault and power supply abnormality. Configuration and fault diagnosis are completed by ABB Control Builder M.

Programming softwareControl Builder M, used for safety logic assignment, channel parameter setting, SIL mode configuration and diagnostic log reading.

Electrical & Process Parameters

Model:3BSE074059R1 Brand:ABB Device type:DOS880 SIL3 high integrity digital output module Function:Safety 24V output drive for SIS solenoid valves and safety related field devices

Mechanical & Structure

Mounting:Select I/O rack plug-in installation Protection class:IP20 Housing:Flame retardant plastic housing with metal front plate

Environmental

Operating temperature:-40℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC61508 SIL3, IEC61131 Status:Original ABB SIS safety I/O spare

Installation

Lock the safety loop and follow SIS work procedure before replacement. Confirm 24V field wiring polarity, download safety configuration, test output action and wiring fault detection function after commissioning.

Interface

Select I/O Ethernet bus terminals, 24V DC field output wiring terminals.

Diagnostic

Trouble alarm: output short circuit, overload, wiring fault. No action response: bus offline, safety logic interlock blocked, module hardware failure. Offline fault: communication loss, backplane contact poor.

Product Brief

3BSE074059R1 module, ABB DOS880 SIL3 single-channel safety digital output spare for System 800xA Select I/O SIS cabinet replacement.
