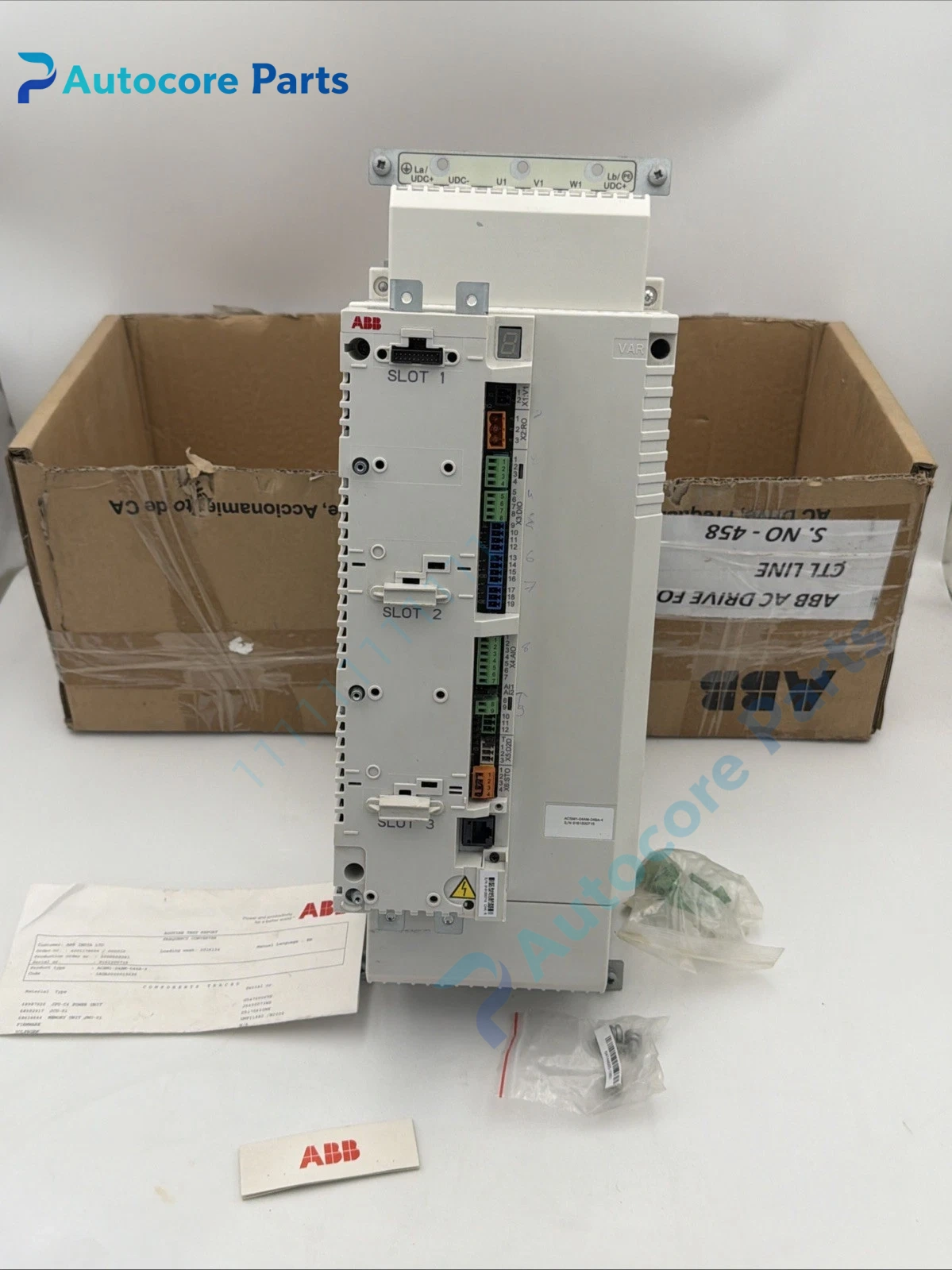

ABB ACSM1-04AM-046A-4 Motion Control Drive Unit

Feature & Principle

ABB ACSM1 series drive for high precision motion applications, supports speed, torque and position control, fast response and built-in safety functions.

Specifications

Model: ACSM1-04AM-046A-4 Brand: ABB Power: 22 kW Rated current: 46 A Input: 3AC 380~480V Mounting: Wall mounted Protection: IP20 Certification: CE

Components & Diagnostics

Power module, control board, cooling fan and status LED panel. Common faults: overcurrent from motor short circuit, overheat caused by blocked fan, communication failure from loose wiring.

Product Brief

ACSM1-04AM-046A-4 drive, ABB ACSM1 22kW motion converter spare for CNC and packaging equipment.
