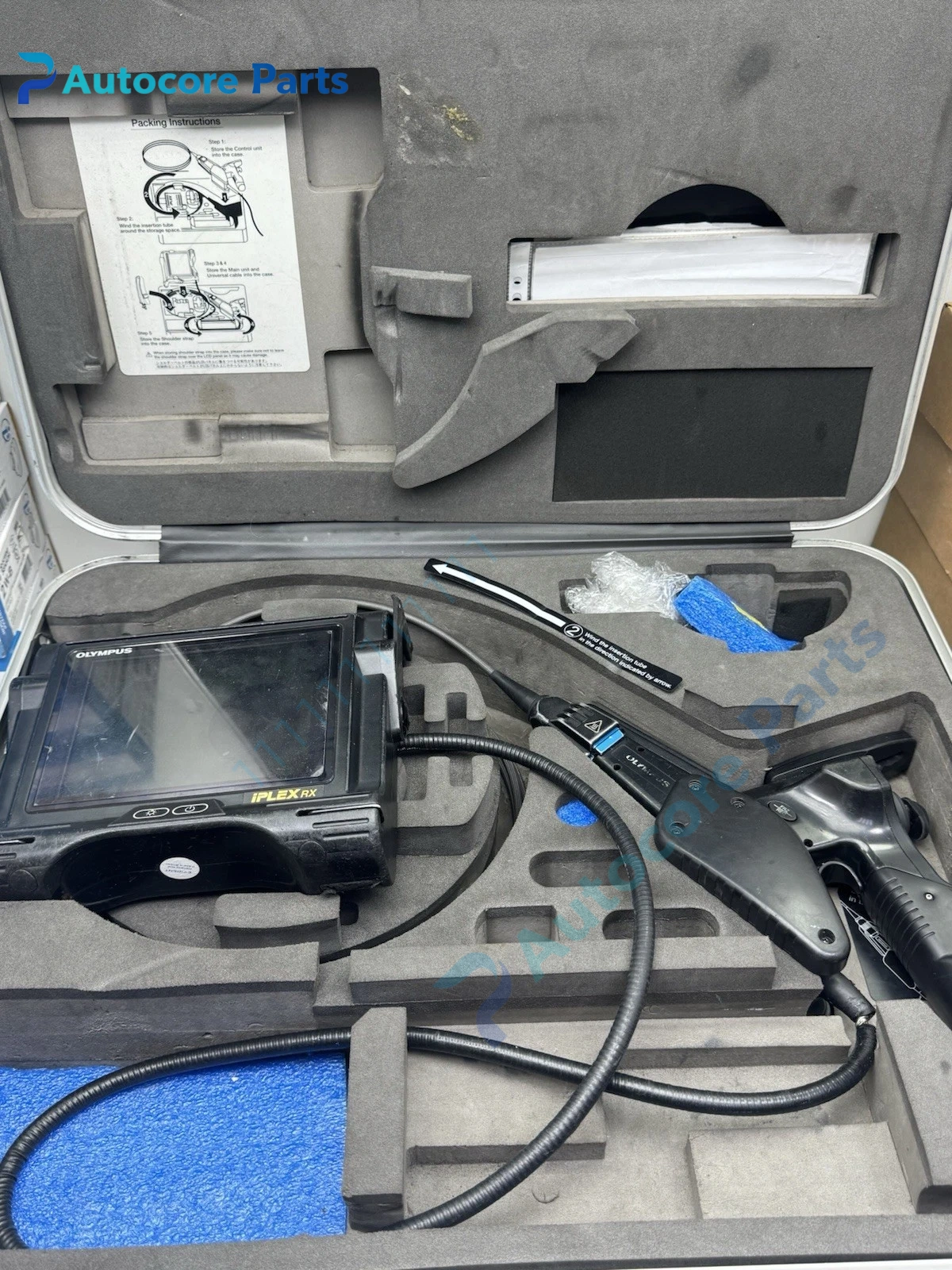

Olympus IV9635RX IPLEX RX Industrial Videoscope Unit

Feature & Principle

Portable Olympus IPLEX RX videoscope with tungsten braided flexible tube. The tip CCD captures images with LED lighting, joystick controls articulation to reach hidden cavities, supports photo, video capture and defect measurement.

Specifications

Model: IV9635RX Brand: Olympus Probe OD: 6.0 mm Working length: 3.5 m Articulation: 130° four-way Light: Built-in LED Protection: IP65 for probe Temp range: -10℃ ~ +40℃ Certification: CE

Components & Diagnostics

Includes camera head, LED module, articulation motor, flexible tube and main controller. LEDs show power and fault status. Common issues: no image from broken probe cable, stiff articulation from jammed tube, dim view from aging LED.

Product Brief

IV9635RX Olympus IPLEX RX videoscope, used for power, aerospace and pressure vessel visual inspection.
