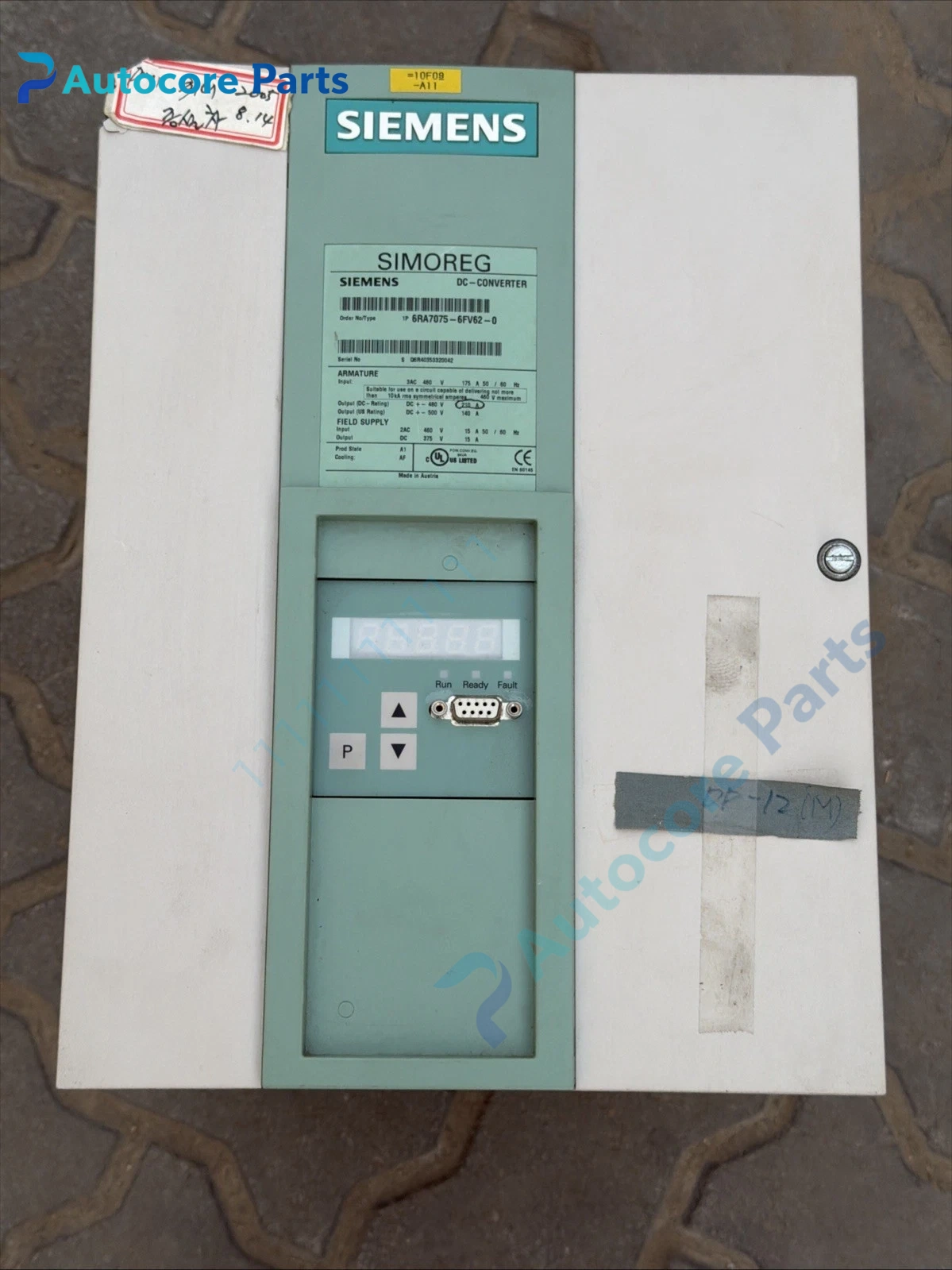

Siemens 6RA7075-6FV62-0 SIMOREG DC MASTER DC Drive Unit

Module Feature

6RA7075-6FV62-0 belongs to Siemens discontinued 6RA70 DC MASTER series high-performance digital thyristor converter.

It adopts B6A+B6C anti-parallel thyristor bridge for four-quadrant operation, can realize forward/reverse rotation and electric feedback braking. It integrates armature control loop and field weakening regulation logic, supports motor auto-tune, rich free function blocks and internal connector technology for flexible logic configuration. It is compatible with optional Profibus communication board, analog setpoint and pulse encoder feedback. Built-in comprehensive protection including overcurrent, field loss, armature overvoltage, thyristor commutation failure and overtemperature. Widely stocked as spare for metallurgical rolling line, paper making, plastic extrusion and material handling DC drive cabinets.

Working principle

Three-phase AC power supplies the thyristor rectifier bridge, the microprocessor adjusts thyristor firing angle to get variable DC voltage for armature.

The microprocessor compares measured current with preset current reference, calculates adjustment quantity and outputs firing pulse to thyristor rectifier bridge. When abnormal operating condition is detected, it triggers protection signal to protect DC motor and converter equipment. Fault codes and operation records are stored onboard for later review.

Onboard components

Thyristor power stack, pulse trigger board, main CPU control board, current/voltage sampling circuit, field rectifier module, cooling fan, watchdog circuit, EEPROM parameter memory and metal rack tray housing.

LED indicators

Front LEDs indicate power, run, active, alarm and fault status; numeric display shows alarm code.

Hardware self‑diagnosis

Unit monitors AC input, armature output, field circuit, fan speed and internal temperature. Regulation parameters and protection thresholds can be downloaded via DriveMonitor.

Programming software

DriveMonitor, used for parameter editing, motor auto-tune, waveform capture and fault log reading.

Electrical & Process Parameters

Model: 6RA7075-6FV62-0 Brand: Siemens Device type: Four-quadrant digital DC converter Input: 3AC 480V, 50/60Hz Armature output: DC 420V, 210A Field output: 325V DC, 15A Control mode: Speed, torque, voltage closed-loop Function: DC motor speed regulation, torque control and regenerative braking

Mechanical & Structure

Mounting: Wall mounting inside control cabinet Protection class: IP20 Housing: Metal sheet enclosure with forced cooling fan

Environmental

Operating temperature: 0℃ ~ +55℃ (derate above 40℃) Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non‑condensing

Certification

CE

Status

Original Siemens DC drive spare

Installation

Cut off three-phase AC and excitation power before replacement.

Wire line supply, DC armature, field winding and encoder/command signal terminals, run motor auto-identification, test speed regulation and protection function after commissioning.

Interface

3-phase AC input terminals, armature DC output terminals, field winding terminals, analog setpoint terminals, encoder port, digital I/O terminals, Profibus expansion slot, auxiliary power terminals.

Diagnostic

F001 overcurrent: Armature short circuit, cable breakdown or current loop saturation.

F005 field fault: Excitation cable open, field loss.

F031 commutation fault: Line voltage distortion, poor thyristor or reactor mismatch.

Overheat alarm: Fan failure or air vent blocked.

Product Brief

6RA7075-6FV62-0 converter, Siemens SIMOREG DC MASTER 210A four-quadrant DC drive spare for rolling mill, paper and extrusion DC motor control system replacement.
