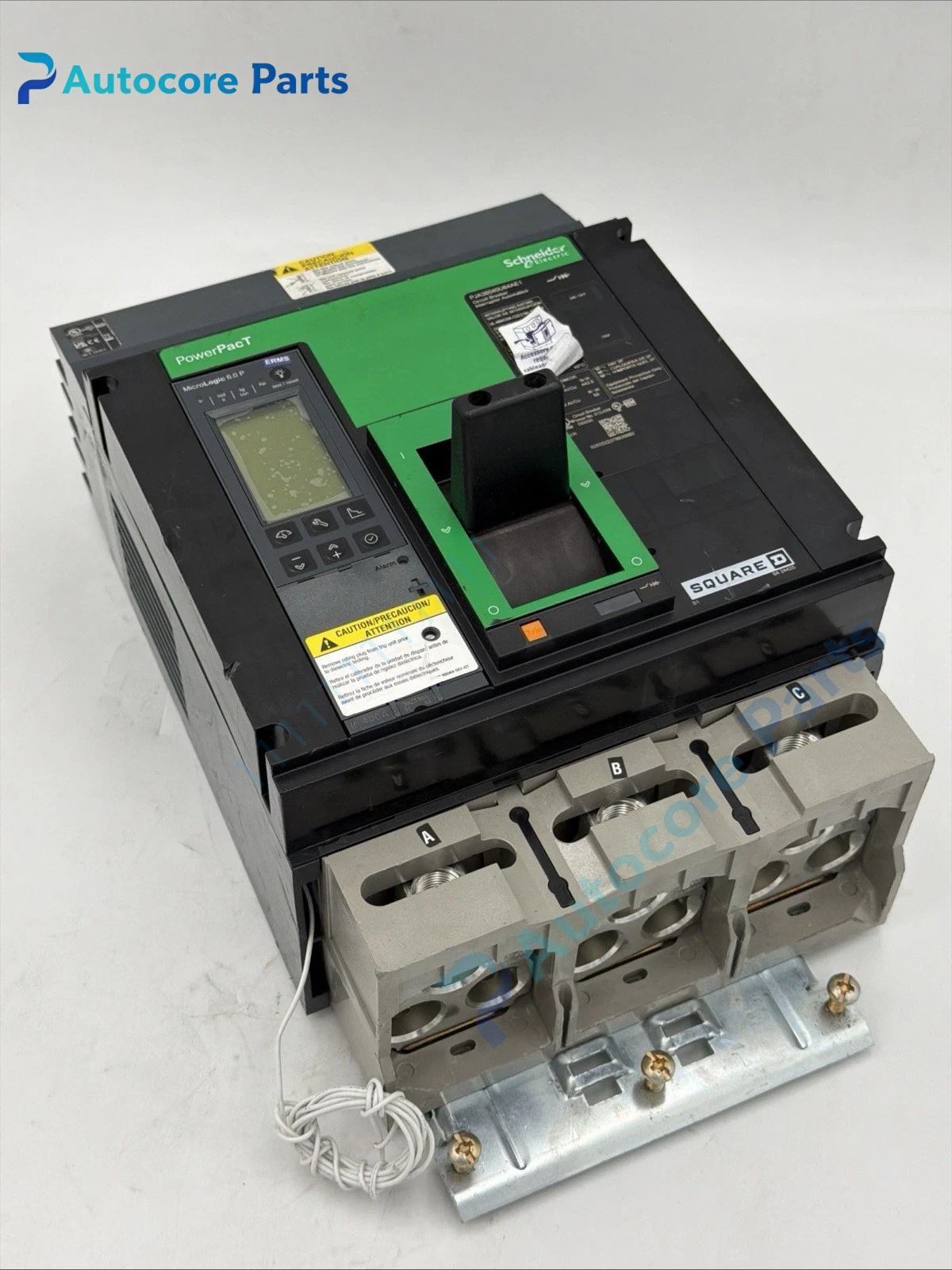

Square D PJA36040U64AE1 PowerPact P MCCB Unit

Module Feature

PJA36040U64AE1 belongs to Square D PowerPact P series molded case circuit breaker. It adopts I-Line plug-in connection for Square D I-Line bus system. Equipped with Micrologic 6.0P electronic trip unit supporting full LSIG protection functions: long-time overload, short-time delay, instantaneous short-circuit and ground fault protection. Built-in Modbus communication interface for power data uploading, metering and remote diagnosis. Frame rating 400A, 3-pole, 600VAC, 25kA interrupting capacity at 600VAC. Auxiliary contact, alarm switch, shunt trip and undervoltage release can be installed on site. Widely stocked as spare for factory switchgear, commercial distribution and power monitoring system cabinets.

Working principle

Three-phase CT samples current signals and transmits data to Micrologic 6.0P trip controller. The processor compares measured current with preset protection thresholds. Overload triggers inverse long delay trip; short-time fault triggers adjustable short-delay trip; high short-circuit triggers instantaneous trip; ground fault leakage signal activates GF protection. Trip unit collects voltage, current, power and energy data, uploads to SCADA/power management system via Modbus bus. Auxiliary and alarm contacts output breaker ON/OFF and trip status dry contacts.

Onboard componentsCurrent transformer group, Micrologic 6.0P LSIG electronic trip unit, main contact assembly, arc extinguishing chamber, spring operating mechanism, I-Line plug connector, load side terminal lugs, Modbus communication module, operation handle and reinforced insulated housing.

LED indicatorsFront LEDs indicate power, communication active, alarm and trip status; mechanical markers show ON, OFF and tripped position; trip unit LCD displays current, power and fault codes.

Hardware self‑diagnosisTrip unit continuously monitors CT circuit integrity, internal power, ground fault channel and Modbus link. Protection curves, pickup values and alarm thresholds can be configured locally or remotely.

Programming softwareEcoStruxure Power Commission, used for protection setting, power metering configuration, parameter backup and fault record query.

Electrical & Process Parameters

Model: PJA36040U64AE1 Brand: Square D (Schneider Electric) Device type: Molded case circuit breaker Frame rating: 400 A Pole: 3P Rated voltage: 600 VAC Icu: 25 kA @600VAC Trip unit: Micrologic 6.0P (LSIG + metering + Modbus) Mounting: I-Line plug-in Function: Overload, short-circuit and ground fault protection with power metering and Modbus communication for low voltage distribution feeders

Mechanical & Structure

Mounting: I-Line plug-in mounting inside LV switchgear Protection class: IP40 front panel Housing: Reinforced insulated plastic enclosure

Environmental

Operating temperature: -25℃ ~ +60℃ Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non‑condensing

Certification: UL489, CSA, CE Status: Original Square D electrical distribution spare

Installation

Cut off upstream power supply before replacement. Align breaker with I-Line bus and lock to connected position, tighten load side lug bolts, wire auxiliary, alarm and Modbus communication cables, configure LSIG protection parameters, test close, open and protection trip function after commissioning.

Interface

I-Line plug-in line terminals, load side lug terminals, auxiliary/alarm contact terminals, shunt / undervoltage trip terminals, Modbus communication port.

Diagnostic

Overload trip: Continuous load current exceeds long delay setting. Short-time trip: Downstream short-circuit fault within short delay window. Ground fault alarm: Insulation leakage to earth. Modbus communication loss: Communication wiring loose or bus address conflict.

Product Brief

PJA36040U64AE1 breaker, Square D PowerPact P 3P 400A I-Line plug-in MCCB spare with Micrologic 6.0P LSIG Modbus trip unit for industrial low voltage feeder protection replacement.
