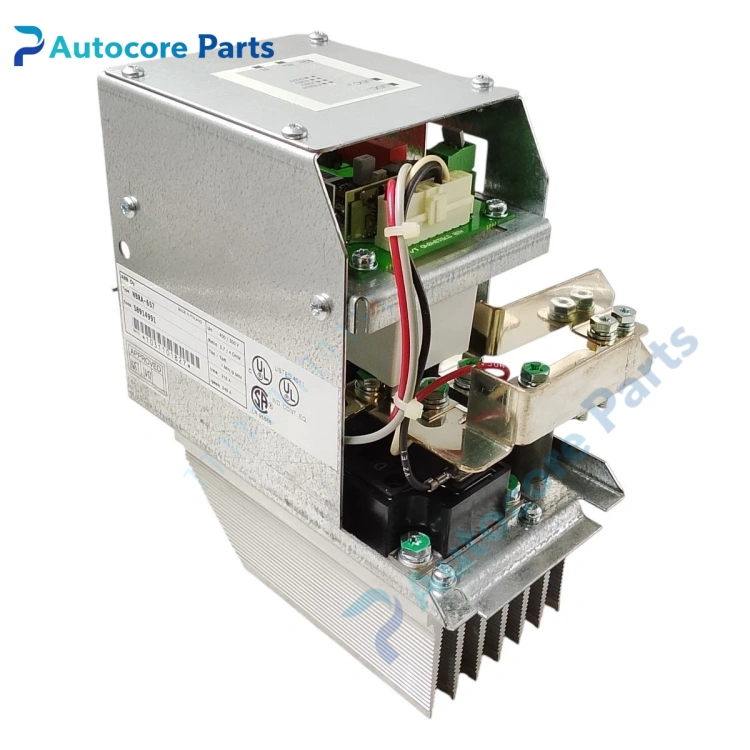

ABB NBRA-657 Braking Chopper

Feature & Principle

It is an external dynamic braking chopper for ABB high-power inverters. When the motor decelerates, the motor feeds back regenerative electric energy to the DC bus of the frequency converter. This chopper controls the on-off of the power IGBT, guides the excess energy to the external braking resistor for heat dissipation, stabilizes the DC link voltage and avoids overvoltage trip of the drive. It supports multiple choppers synchronous parallel connection to meet large power braking demand.

Specifications

Model: NBRA-657 Brand: ABB Applicable inverter: ACS600, ACS800 series Function: Regenerative energy dissipation, dynamic braking Cooling mode: Air cooling Installation: Cabinet wall mounting Matching accessory: External brake resistor Application: Crane, hoist, elevator, centrifuge and other high inertia load Certification: CE, UL

Components & Diagnostics

IGBT power module, drive control board, current sampling circuit, heat sink, power terminal. Common faults: IGBT breakdown, chopper no action, overheating alarm, poor wiring contact.

Product Brief

NBRA-657 braking chopper, ABB inverter brake spare widely used for crane and high inertia load frequency conversion cabinet overhaul and replacement.
