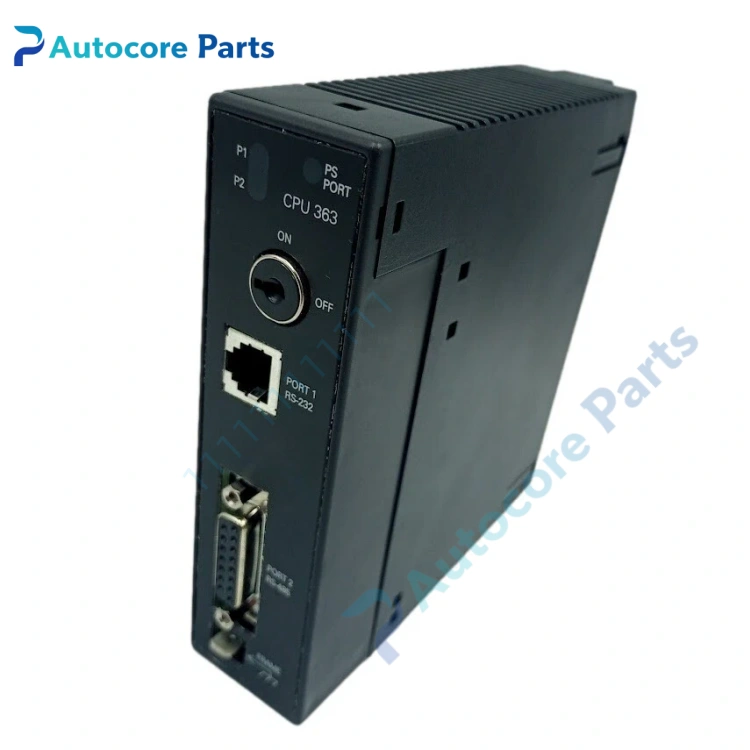

GE Fanuc IC693CPU363 CPU Module

Feature & Principle

It is the core CPU module of GE Fanuc 90-30 PLC series. It executes user ladder logic program, completes logic operation, PID closed-loop calculation and data processing. It communicates with I/O modules through the backplane bus, exchanges data with upper host computer or HMI via built-in RS232 interface. It supports online program monitoring and fault diagnosis, widely used for medium-sized automation control systems.

Specifications

Model: IC693CPU363 Brand: GE Fanuc Series: 90-30 PLC Memory: User logic memory, register memory Communication port: RS232 serial port I/O capacity: Match 90-30 rack I/O modules Power supply: Powered by backplane Mounting: Plug-in rack installation Lifecycle: Discontinued legacy spare Application: Water treatment, packaging machinery, old production line control cabinet Certification: CE, UL

Components & Diagnostics

Main control PCB, flash memory chip, serial communication circuit, backplane gold-plated connector, status LED indicators. Common faults: program loss, communication failure, module cannot run, backplane contact poor.

Product Brief

IC693CPU363 PLC CPU module, GE Fanuc 90-30 series control spare widely used for old automation equipment overhaul and replacement.
