ABB SDCS-PIN48-SD Trigger Board

Feature & Principle

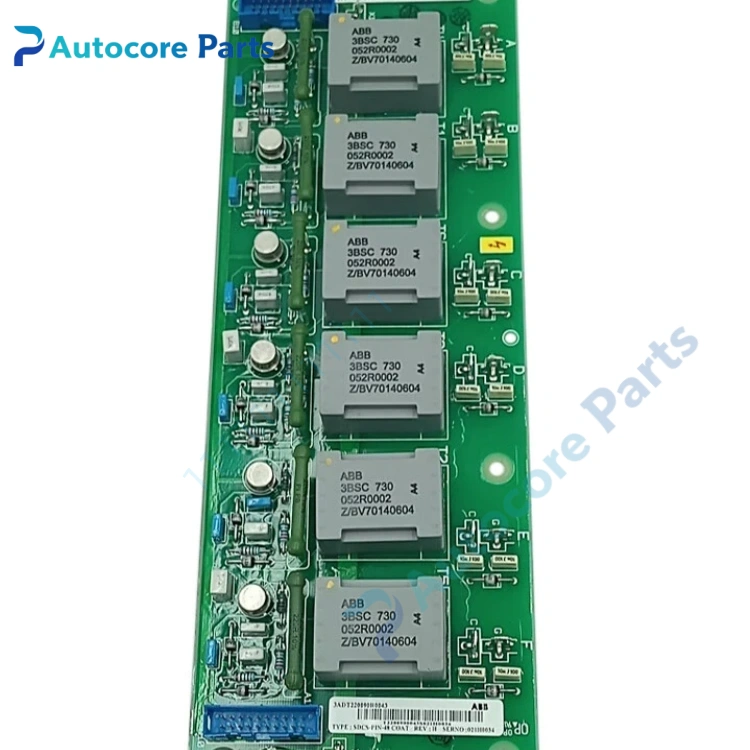

It is a special pulse trigger board for ABB DCS800 DC speed regulating drive. It receives control pulse signals from the main control board, isolates and amplifies signals through built-in pulse transformers, and sends stable firing pulses to each thyristor of the power unit. It realizes electrical isolation between the low-voltage control circuit and high-voltage power loop, suppresses interference, and ensures the thyristor turns on and off in strict phase sequence, which is the core trigger accessory for DC rectifier control.

Specifications

Model: 3BSE004939R1012 (SDCS-PIN48-SD) Brand: ABB Applicable drive: DCS800 series DC drive Function: Thyristor pulse isolation and trigger output Weight: 0.328 kg Dimension: 265 mm × 282 mm × 40 mm Lifecycle: Discontinued legacy spare Application: Steel rolling mill, paper machine, heavy industry DC drive cabinet Certification: CE, UL

Components & Diagnostics

Pulse transformer group, signal conditioning circuit, terminal connector, PCB substrate. Common faults: transformer damage, no trigger pulse output, poor signal isolation, board burnout caused by overvoltage.

Product Brief

3BSE004939R1012 pulse transformer trigger board, ABB DCS800 DC drive spare widely used for heavy-duty DC speed control cabinet overhaul and replacement.
