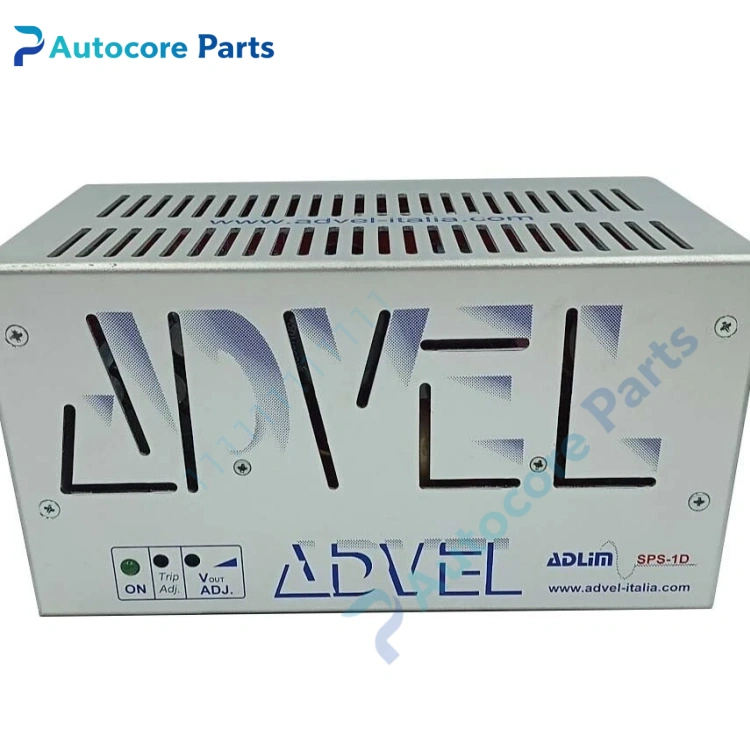

ADVEL SPS251DZ1-88 Power Supply Unit

Feature & Principle

It is a switching power supply of ADVEL SPS251 series. It converts alternating current into stable direct current through high-frequency rectification and transformation. The 88 represents the wide input range version 88~264VAC. It adopts compact metal housing design, high efficiency and low heat generation. It integrates multi-protection circuit, automatic recovery after fault elimination, suitable for continuous power supply of PLC, sensors and control boards in industrial cabinets.

Specifications

Model: SPS251DZ1-88 Brand: ADVEL Series: SPS251 Input range: 88~264VAC Power rating: 250W Mounting: DIN rail mounting Protection: Overvoltage, overcurrent, short circuit, overtemperature Output: Multiple DC options (12V / 24V / 110V) Application: Packaging machine, textile machine, general automation control cabinet Certification: CE

Components & Diagnostics

High frequency transformer, rectifier bridge, electrolytic capacitor, PWM control circuit, terminal block, metal enclosure. Common faults: no DC output, low output voltage, capacitor bulge, no start after power on.

Product Brief

SPS251DZ1-88 switching power supply, ADVEL industrial power spare widely used for automation control cabinet overhaul and replacement.
