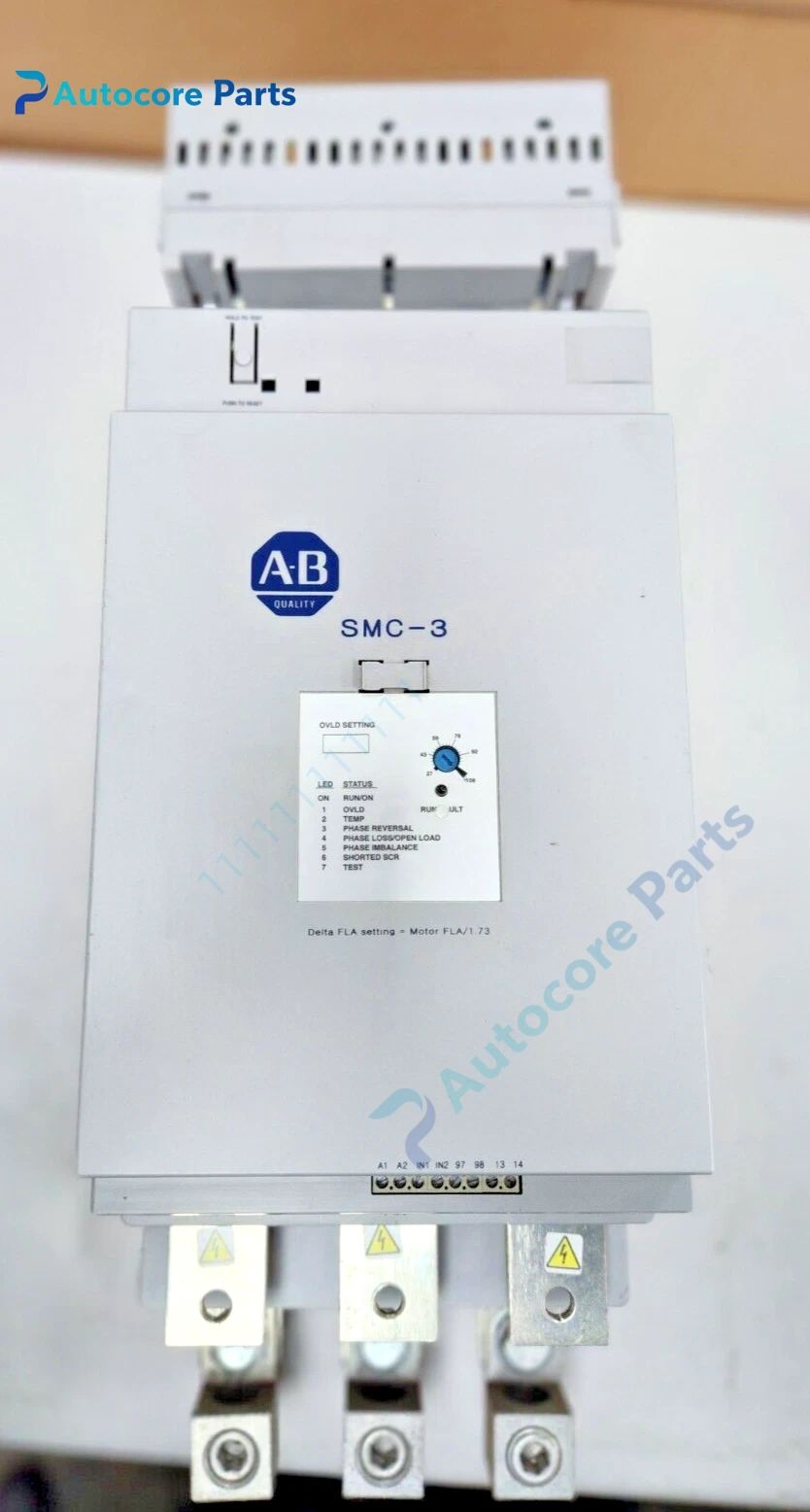

Allen-Bradley 150-C108NBD SMC-3 Soft Starter Unit

Module Feature

150-C108NBD belongs to SMC-3 series smart solid-state motor controller manufactured by Allen-Bradley (Rockwell Automation). Rated operating current 108A,compatible with 55kW motor at 400V three phase. It supports soft start,current limit start,kick start and soft stop functions. Integrated electronic motor overload protection,phase loss detection and built-in bypass contactor. Equipped with digital I/O terminals for start/stop and fault relay output. Widely used in fans,water pumps,conveyors and general induction motor starting systems.

Working principle

Three-phase AC power passes through thyristor power modules. The controller adjusts thyristor firing angle to smoothly ramp up motor voltage and limit starting inrush current. After motor reaches full speed,the internal bypass contactor closes to bypass semiconductor elements and reduce heat loss. It continuously monitors motor current and temperature for protection.

Onboard components

Thyristor power modules,integrated bypass contactor,current transformers,main control PCB,LED status indicator,power terminal block,control I/O terminal block,temperature monitoring circuit.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overcurrent,overtemperature,phase loss,current imbalance,overload,underload,thyristor fault detection.

Programming software

Connected Components Workbench software,supports parameter configuration,real-time current monitoring and fault log reading.

Electrical & Process Parameters

Model:150-C108NBD Brand:Allen-Bradley Device type:SMC-3 Smart Motor Controller / Soft Starter Rated current:108A Main circuit voltage:200 ~ 460VAC three phase Control supply:100~240VAC Input frequency:50/60Hz Function:Soft start,current limit start,kick start,soft stop Protection:Electronic overload,phase loss,over temperature,over current,current imbalance protection Cooling:Forced air cooling

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal frame open type

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification:CE,UL compliant Status: Allen-Bradley SMC-3 soft starter for induction motor gentle starting and protection

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation gap.Separate power cables and signal cables to reduce EMI interference.Connect three-phase mains to L1/L2/L3 terminals and motor cable to T1/T2/T3 terminals.Set motor full load current parameter before commissioning.

Interface

Main power terminal,motor output terminal,digital I/O terminal,fault relay terminal.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Phase loss:input mains phase missing or loose wiring. Failed soft start:incorrect starting ramp time or motor parameter setup.

Product Brief

Allen-Bradley 150-C108NBD SMC-3 smart motor soft starter,108A,200-460V three phase input,with soft start/soft stop and integrated bypass contactor,built-in electronic overload protection for fan, pump and conveyor motor starting control.
