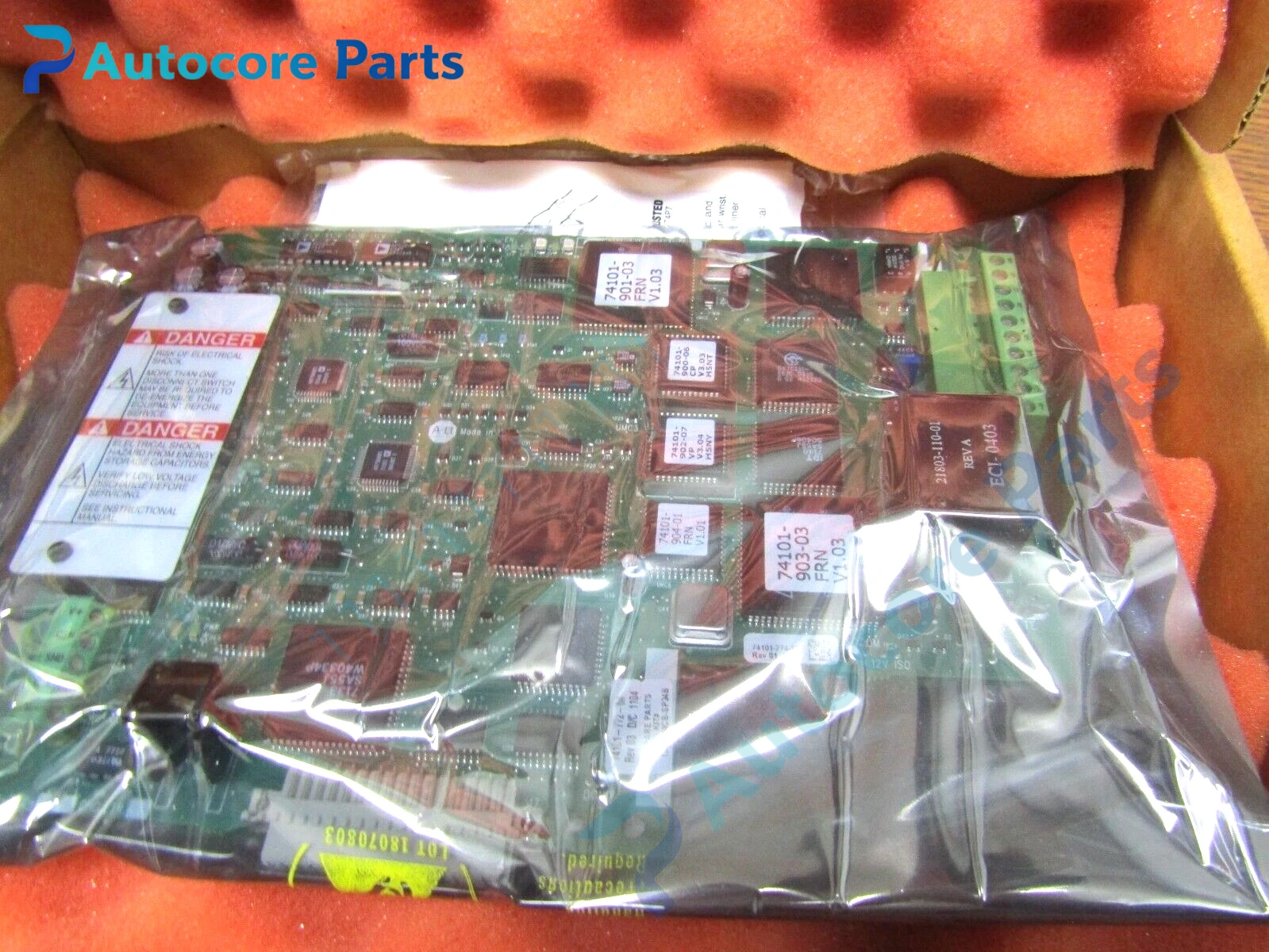

Allen-Bradley 1336T-MCB-SP Main Control Board Unit

Module Feature

1336T-MCB-SP is the main control board manufactured by Allen-Bradley (Rockwell Automation),designed exclusively for 1336 FORCE series AC variable frequency drives. It executes V/F and vector control algorithms,processes analog and digital I/O signals,stores drive parameter sets and records fault history. Equipped with communication interface for optional fieldbus adapters and keypad connection port. Widely used as spare replacement part for conveyor,fan,pump and process control 1336T drive maintenance.

Working principle

Receives speed/torque command signals and feedback data,calculates PWM reference signals to control power module switching. Continuously monitors bus voltage,output current and temperature feedback from power section,triggers protection actions once abnormal conditions are detected. It communicates with operator keypad and optional network adapter for parameter setup and status upload.

Onboard components

Main microprocessor chip,non-volatile parameter memory,analog signal sampling circuit,digital I/O logic circuit,serial communication interface,LED status indicator circuit,connector terminals for power board and keypad.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Internal memory check,communication circuit test,analog reference signal detection,I/O port diagnosis,watchdog fault detection.

Programming software

DriveExplorer software,supports parameter upload/download,real-time drive status monitoring and fault log reading.

Electrical & Process Parameters

Model:1336T-MCB-SP Brand:Allen-Bradley Device type:1336 FORCE Main Control PCB Board Supply voltage:5VDC / 24VDC from drive power supply Function:Vector control algorithm,I/O handling,parameter storage,fault monitoring Compatible drive:1336T FORCE series AC drive Communication:Interface for keypad and optional fieldbus adapter Protection:Onboard overvoltage,overcurrent and ESD protection Cooling:Natural convection cooling

Mechanical & Structure

Mounting:Install inside 1336T drive cabinet Protection class:Conformal coated PCB Housing:PCB with metal mounting bracket

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification:CE,UL compliant Status: Allen-Bradley 1336 FORCE main control spare board for inverter repair and replacement

Installation

Follow strict ESD safety procedure before handling.Power off and lockout the drive before board replacement.Align connectors carefully and fasten mounting screws securely.Confirm all cable connections,restore parameters and perform power-on test.Complete motor auto-tune before putting into operation.

Interface

Power connector,control signal connector,keypad port,fieldbus adapter connector,power stage feedback connector.

Diagnostic

Board communication failure:poor connector contact or PCB damage. Parameter loss:memory chip failure. Drive cannot run:control logic fault or I/O circuit damage. Keypad no display:board power supply abnormality.

Product Brief

Allen-Bradley 1336T-MCB-SP main control PCB board,core control spare part for 1336 FORCE series AC variable frequency drive,responsible for vector control operation,parameter storage and fault monitoring,for industrial drive maintenance and replacement.
