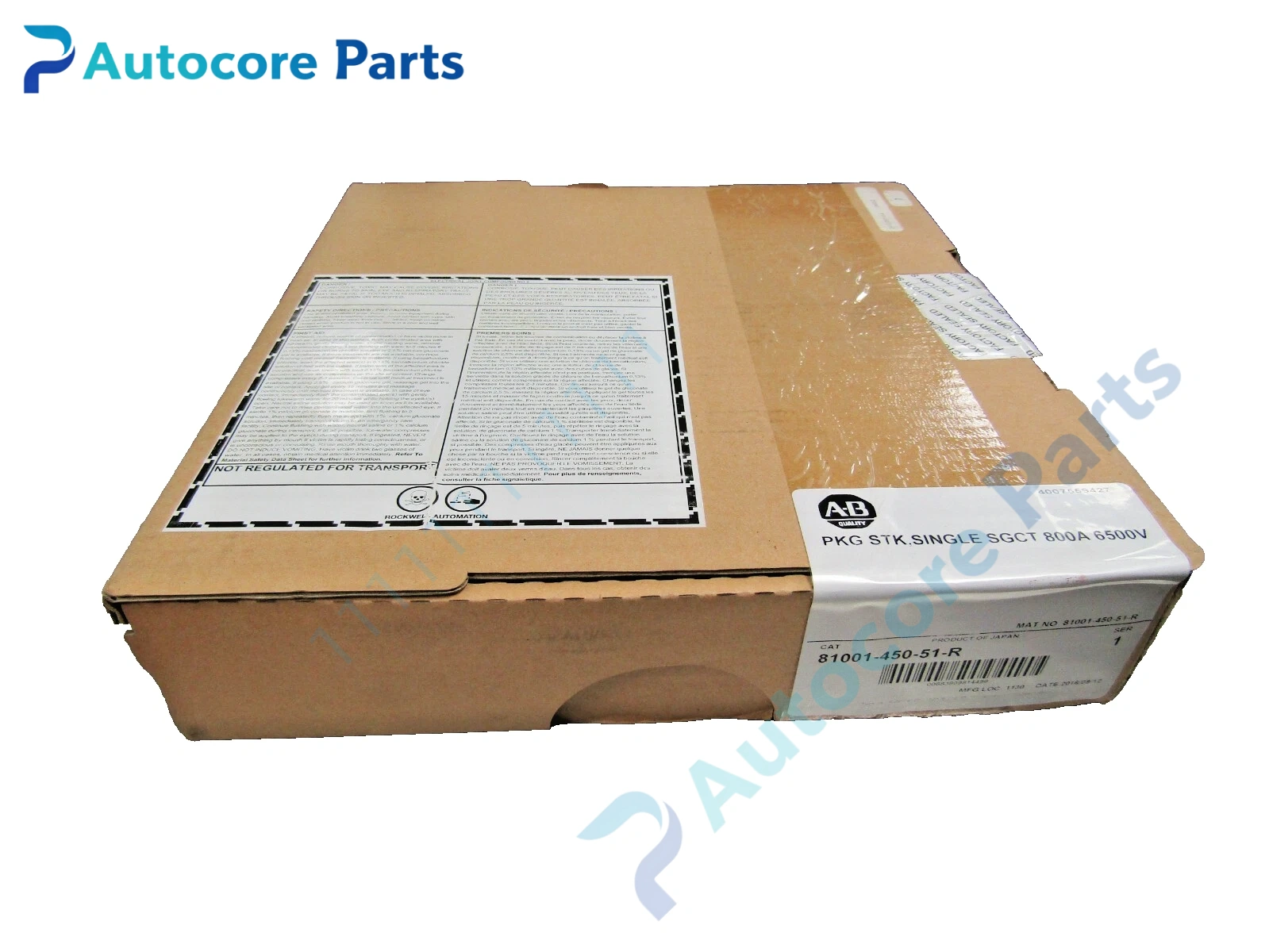

Allen-Bradley 81001-450-51-R SGCT Power Stack Module Unit

Module Feature

81001-450-51-R belongs to 8100 series high-power SGCT (Symmetrical Gate Commutated Thyristor) packaged power stack manufactured by Allen-Bradley (Rockwell Automation). Rated 800A,6500V single SGCT assembly. It is designed for high-power medium voltage drive and power conversion equipment. This part has been officially discontinued by Rockwell Automation. The module integrates SGCT chip,gate drive interface and heat transfer base plate. Widely applied in large medium voltage VFD,grid power conversion and heavy process power control systems.

Working principle

SGCT is a high-power semiconductor switching device. The gate drive signal controls turn-on and turn-off of the SGCT chip. It handles high-voltage and large-current power switching for DC link and power inversion inside medium voltage drives. The metal base plate transfers heat generated during switching operation to external heat sink.

Onboard components

SGCT semiconductor chip,gate trigger interface circuit,metal base plate,insulation layer,power terminal studs,gate signal terminal block.

LED indicators

No built-in LED indicators; status monitoring depends on external drive control board.

Hardware self-diagnosis

Gate drive signal integrity check,insulation resistance test,thermal resistance measurement,short circuit detection between power terminals.

Programming software

No dedicated programming software; controlled by medium voltage drive main control system.

Electrical & Process Parameters

Model:81001-450-51-R Brand:Allen-Bradley Device type:SGCT Symmetrical Gate Commutated Thyristor Power Stack Rated current:800A Rated voltage:6500V Device:Single SGCT Cooling:External heat sink required Protection:Over temperature,over current,over voltage protection from external drive controller

Mechanical & Structure

Mounting:Mounted on external heat sink with torque controlled fasteners Protection class:IP00 bare power assembly Housing:Metal insulated base plate,unpackaged power stack

Environmental

Operating temperature:-20℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Allen-Bradley discontinued high power SGCT power stack for medium voltage power conversion

Installation

Follow strict ESD safety procedure before handling. Torque the power stack evenly onto qualified heat sink. Connect main high-current power studs and gate control wiring. Perform insulation test before high voltage power commissioning.

Interface

High power main terminal studs,gate drive signal terminal.

Diagnostic

Gate signal failure:gate wire loose or drive board fault. Over temperature:poor thermal contact or insufficient heat sink cooling. Insulation breakdown:surface contamination or device internal damage.

Product Brief

Allen-Bradley 81001-450-51-R SGCT high power semiconductor stack module,800A,6500V single symmetrical gate commutated thyristor assembly,discontinued original part for medium voltage variable frequency drive and industrial power conversion.
