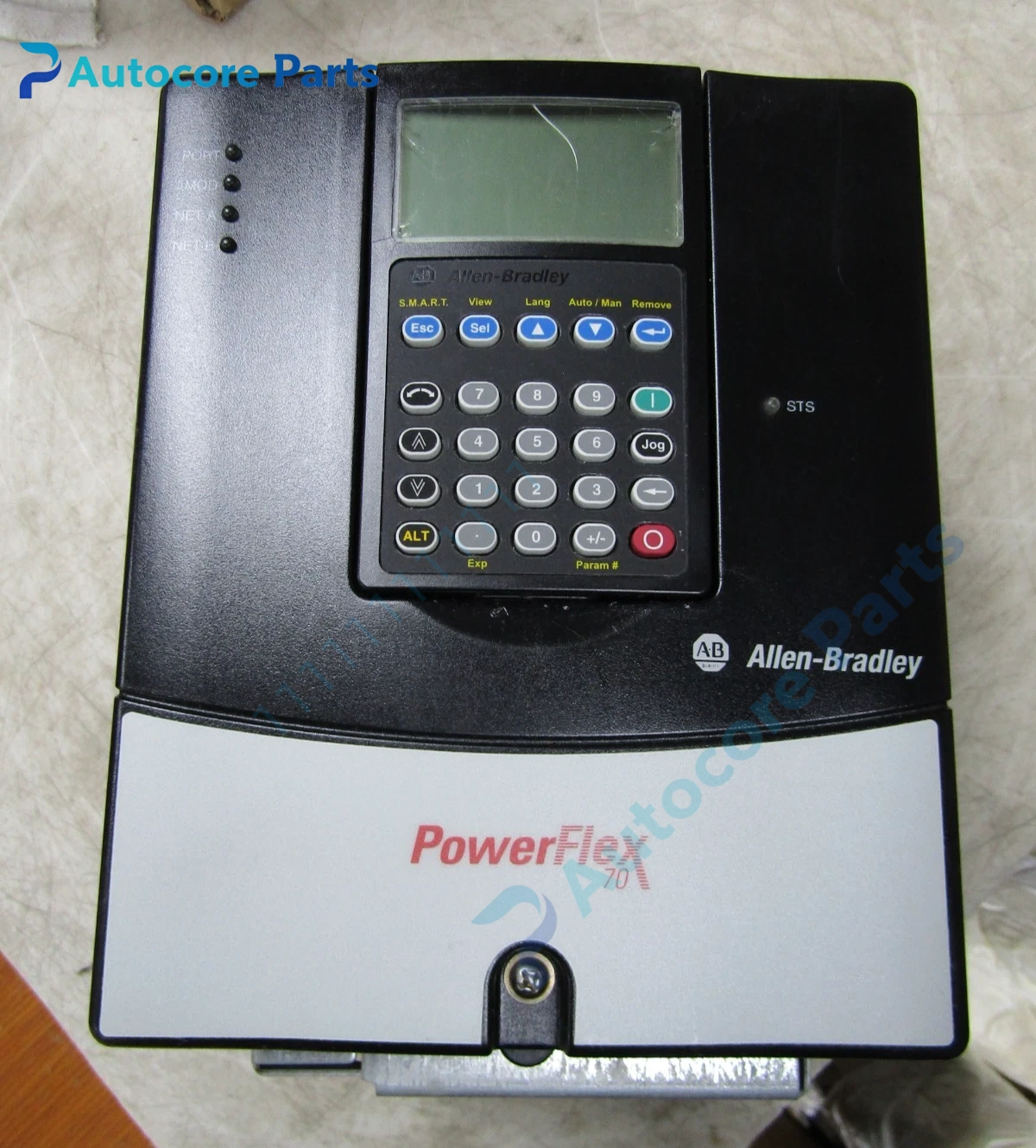

Allen-Bradley D8P0A0AYNNNNN PowerFlex70 AC Drive Unit

Module Feature

D8P0A0AYNNNNN belongs to PowerFlex70 high-performance AC drive manufactured by Allen-Bradley (Rockwell Automation). Rated output current 8A,5HP normal duty /3HP heavy duty,380~480V three phase input. It supports V/Hz, sensorless vector and FORCE vector control,optional encoder feedback for high precision speed/torque regulation. Integrated brake IGBT,standard IP20 panel mount housing,blank front plate without HIM keypad. Reserved DPI expansion slot for optional communication adapters such as DeviceNet,ControlNet and EtherNet/IP. Widely used for small extruders,packaging machines,small conveyors and general factory automation equipment.

Working principle

Three-phase AC mains power is rectified into DC bus voltage. IGBT power stage outputs adjustable voltage and frequency PWM waveform to control induction motor speed and torque. FORCE vector algorithm provides high starting torque across wide operating range. Built-in braking IGBT consumes regenerative energy generated by motor deceleration; external brake resistor must be matched and wired separately. The drive continuously monitors DC bus voltage,output current and internal temperature for protection.

Onboard components

Input rectifier bridge,IGBT power module,main control PCB,blank front panel,dynamic brake IGBT,temperature controlled cooling fan,power terminal block,control I/O terminal block,DPI communication adapter expansion slot.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,ground fault,phase loss,motor overload,option module communication fault detection.

Programming software

DriveExplorer software,supports motor auto-tune,real-time speed/torque monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:D8P0A0AYNNNNN Brand:Allen-Bradley Device type:PowerFlex70 Series AC Variable Frequency Drive Input voltage:380 ~ 480VAC three phase Input frequency:50/60Hz Output current:8A Normal duty rating:5HP Heavy duty rating:3HP Control mode:V/F,sensorless vector,FORCE vector control Dynamic brake:Built-in brake IGBT (external brake resistor required) Communication:Expandable via optional DPI adapter card Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss,motor overload protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 / NEMA Type1 Housing:Metal reinforced plastic housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Allen-Bradley PowerFlex70 compact high-performance inverter for small 380-480V industrial motor control applications

Installation

Follow strict ESD safety procedure before handling.Mount vertically and reserve ventilation clearance.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Complete motor auto-tune and parameter commissioning before running operation.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,DPI option module slot,HIM keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Under voltage:input mains fluctuation or missing phase. Unstable speed:incorrect motor parameters or poor cable shielding. Brake fault:brake IGBT failure or resistor wiring error.

Product Brief

Allen-Bradley D8P0A0AYNNNNN PowerFlex70 AC variable frequency drive,380-480V three phase input,8A output,5HP ND /3HP HD,supports FORCE vector control,with built-in brake IGBT and DPI communication expansion slot for small industrial automation applications.
