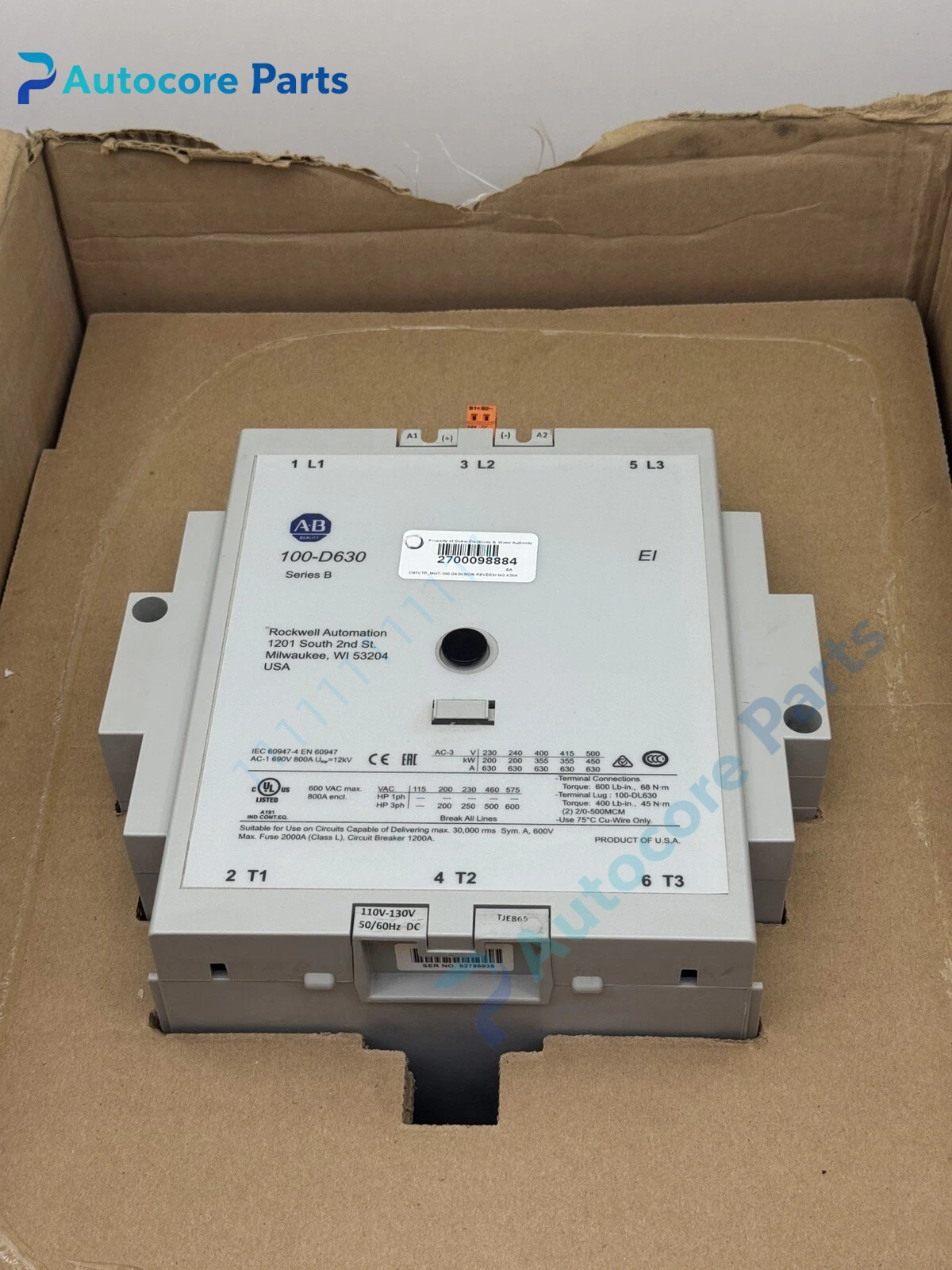

Allen‑Bradley 100-D630ED11 Power Contactor Unit

Module Feature

100-D630ED11 belongs to Allen‑Bradley Bulletin 100-D large frame IEC contactor family under Rockwell Automation.

It is rated 630A continuous, three main power poles, equipped with low-power electronic wide-range coil supporting 110‑130V AC and DC control supply. It comes with built-in 1 normally open and 1 normally closed auxiliary contact for status feedback and interlock logic. It supports add-on accessories including auxiliary contact blocks, surge suppressors, mechanical interlocks and terminal shrouds. This model is end-of-life and discontinued since 2019, widely stocked as spare for legacy MCC, pump, fan and conveyor motor control circuits.

Working principle

When control voltage is applied to the electronic coil, electromagnetic force pulls the moving contact bridge closed.

The three main poles conduct current to the motor or load. When coil power is removed, internal contact spring separates main contacts and breaks the power circuit. Auxiliary contacts change state synchronously to send running or open feedback signal to PLC or protection relays.

Onboard components

Silver alloy main contact assembly, arc quenching chamber, electronic coil driver module, magnet yoke and armature, contact pressure spring group, auxiliary contact block, power terminal lugs, insulating frame.

LED indicators

Not applicable.

Hardware self‑diagnosis

No onboard electronic diagnostic function. Condition inspection relies on external monitoring relay or power monitoring module, detecting contact wear, coil burnout and abnormal heating.

Programming software

Not applicable.

Electrical & Process Parameters

Model:100-D630ED11 Brand:Allen‑Bradley (Rockwell Automation) Device type:3-pole IEC AC power contactor Function:Switching control for large induction motors and low voltage feeder loads

Mechanical & Structure

Mounting:DIN rail or backplate screw mounting Protection class:IP20 Housing:Flame retardant thermoset insulated housing

Environmental

Operating temperature:-25℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, UL, CSA, IEC

Status:Discontinued legacy Allen‑Bradley motor control spare

Installation

Mount vertically with adequate clearance for heat dissipation.

Tighten main power lugs and auxiliary wiring, test coil pull-in and contact action before energizing main circuit.

Interface

Main L1/L2/L3 power terminals, coil control terminals, 1NO+1NC auxiliary signal terminal block.

Diagnostic

Failure to pull in: Coil supply voltage missing, coil winding burnout or mechanical jamming.

Contact overheating: Insufficient tightening torque, contact surface burning or overload exceeding rating.

Auxiliary signal abnormal: Auxiliary contact pitting or wiring open circuit.

Product Brief

Allen‑Bradley 100-D630ED11 contactor, 3P 630A Bulletin 100-D IEC heavy-duty motor switching contactor spare for legacy low voltage MCC cabinet replacement.
