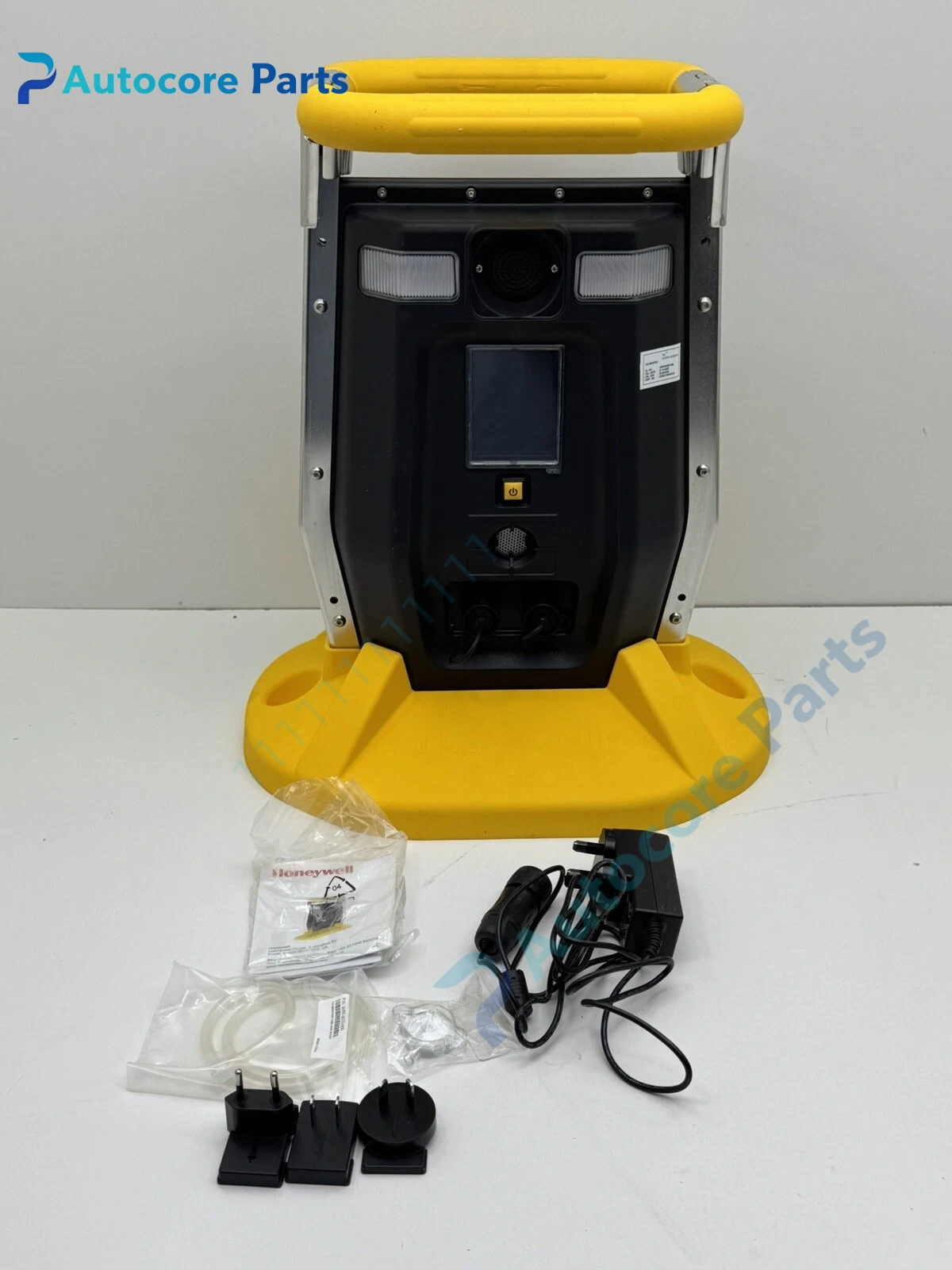

Honeywell BWRR100P-B-C Gas Monitor Unit

Module Feature

BWRR100P-B-C belongs to Honeywell BW RigRat portable area gas monitor series, BWRR100P stands for pumped sampling configuration.

It supports maximum 6 interchangeable sensor slots for LEL, O2, CO, H2S, VOC, SO2 and other toxic and combustible gases. It integrates 3.5-inch color TFT display, one-button operation, on-board data logging, Bluetooth, Wi-Fi and Mesh wireless networking. It is certified for ATEX / IECEx Zone 0 and CSA Class 1 Division 1 hazardous locations, with optional noise sensor and GPS module, widely deployed for temporary perimeter monitoring during plant shutdown, confined space entry and maintenance work.

Working principle

The built-in sampling pump draws gas sample from remote points through tubing into sensor chamber.

Each electrochemical or catalytic bead sensor converts gas concentration into electrical signal. The main control board processes readings, triggers visual, audible and wireless alarm when concentration exceeds preset threshold. It synchronizes real-time gas data to mobile App or Honeywell Touchpoint Plus host system.

Onboard components

Internal sampling pump, multi-sensor mounting base, main control PCB, TFT color display, rechargeable lithium battery pack, high-decibel buzzer, tri-color alarm LED, wireless communication module, rubber protective enclosure.

LED indicators

Front LEDs indicate normal status, pre-alarm, high alarm and fault warning.

Hardware self‑diagnosis

Built-in supervision detects sensor fault, pump stall, low battery, communication dropout and internal circuit anomaly. Diagnostic information and fault codes are displayed on the local screen and uploaded wirelessly.

Programming software

Honeywell BW mobile App / Touchpoint Plus software, used for alarm setpoint adjustment, calibration, data log download and network configuration.

Electrical & Process Parameters

Model:BWRR100P-B-C Brand:Honeywell Device type:Pumped transportable multi-gas area monitor Function:Continuous hazardous gas concentration detection and alarm for temporary hazardous industrial work zones

Mechanical & Structure

Mounting:Free standing portable placement Protection class:IP67 Housing:Rugged reinforced rubberized plastic enclosure

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:ATEX, IECEx, CSA

Status:Original Honeywell BW gas detection spare

Installation

Place the unit at the monitoring zone and fix sampling tubing inlet at target test point.

Power on, verify pump flow and sensor warm-up, set alarm thresholds before entering confined space.

Interface

Sample inlet port, exhaust port, charging port, wireless antenna.

Diagnostic

Pump fault alarm: Tubing blockage, filter clogging or pump motor failure.

Sensor drift: Sensor aging, contamination or overdue calibration.

Wireless offline: Weak signal, wrong Mesh network ID or communication module fault.

Product Brief

Honeywell BWRR100P-B-C gas monitor, pumped BW RigRat multi-gas area detector for hazardous industrial confined space and perimeter gas safety monitoring.
