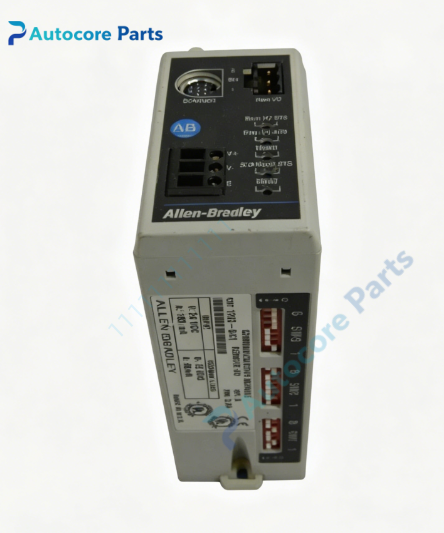

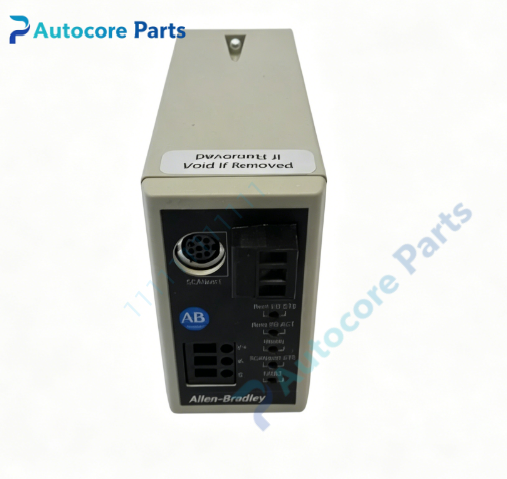

Allen‑Bradley 1203‑GK1 Adapter Module

Technical Specifications

Model:1203‑GK1

Brand:Rockwell Allen‑Bradley

Product Type:RIO‑SCANport communication adapter module

Communication interface:Remote I/O(RIO),SCANport

RIO baud rate:57.6K / 115.2K / 230.4K bps,configurable via DIP switch

Station address:0‑31 adjustable

Supported drives:PowerFlex 70,PowerFlex 700 series with SCANport interface

Status indicator:LED status diagnostic lamps

Power supply:Drive SCANport bus powered,no external power required

Weight:0.26 kg

Dimension:123mm×76mm×44mm

Protection Grade:IP20

Operating Temperature:0℃ ~ +60℃

Storage Temperature:-40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Feature:DIP‑switch configuration,RIO network isolation,real‑time drive parameter read‑write,fault diagnosis

System Compatibility:SLC‑500,PLC‑5 Remote I/O system,PowerFlex series SCANport‑type AC drives

Remark:Legacy EOL spare component;no direct factory replacement model;confirm RIO baud rate,station address and drive hardware version before replacement.

Product Details

1203‑GK1 is Rockwell Allen‑Bradley RIO‑SCANport communication adapter.

It realizes protocol conversion between PLC Remote I/O network and SCANport interface of PowerFlex drives,realizing drive start‑stop,frequency setting,fault feedback and parameter access via RIO link. Configurable by DIP switch for baud rate and station address,powered by SCANport bus without extra power supply. Module failure will result in drive communication loss,control failure and production shutdown,widely used for old‑site PowerFlex drive overhaul and spare‑part replacement.
