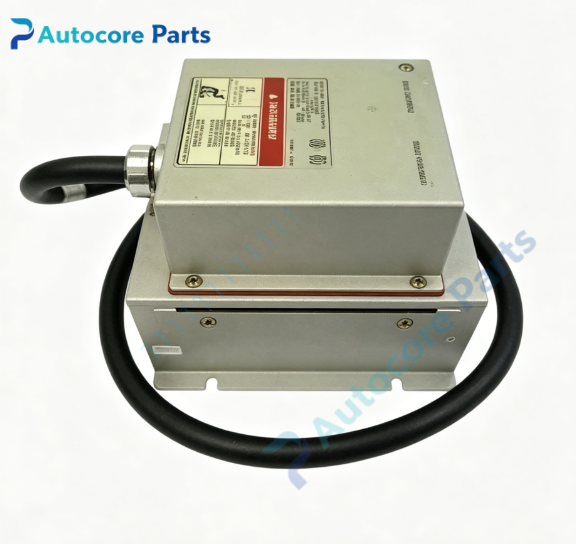

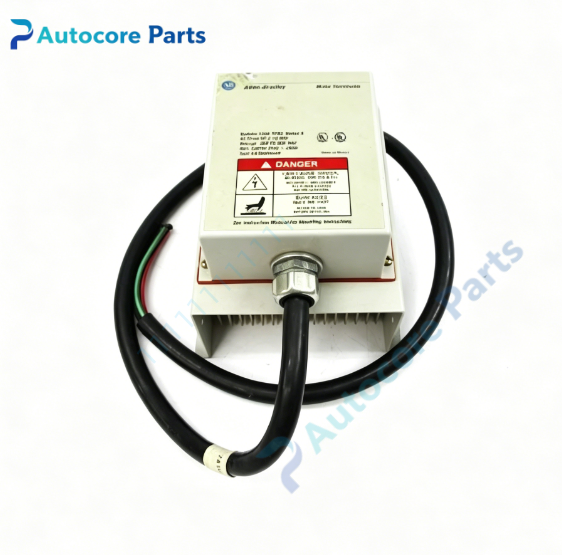

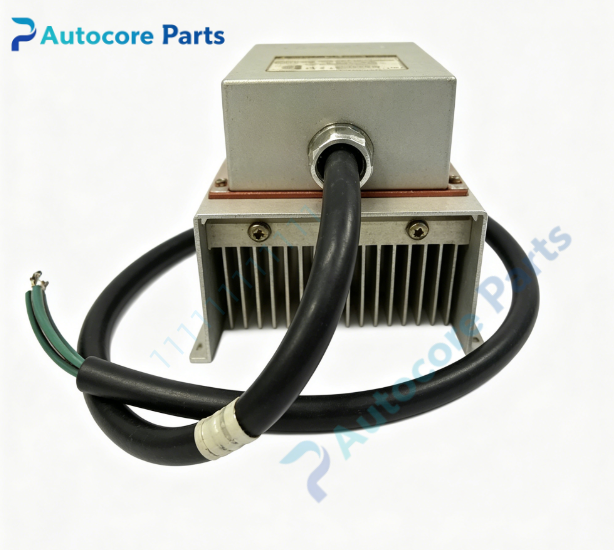

Allen‑Bradley 1204‑TFB2 Motor Terminator

Technical Specifications

Model:1204‑TFB2

Brand:Rockwell Allen‑Bradley

Product Type:Motor terminator,reflected wave suppression device

Rated voltage:380‑600V AC three‑phase

Max carrier frequency:2kHz

Applicable power range:0.5‑600HP

Cable:3m pre‑wired 4‑wire connection cable

Weight:3.86 kg

Dimension:183mm×170mm×156mm

Protection Grade:Type 4X

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Feature:Suppress reflected‑wave voltage spike for long motor lead,protect motor insulation;Class I Division 2 hazardous location certification

System Compatibility:Allen‑Bradley series AC variable frequency drives,long motor cable installation scenarios

Remark:Legacy EOL spare component;must limit drive carrier frequency ≤2kHz;install at motor terminal side,check motor cable length before application.

Product Details

1204‑TFB2 is Rockwell Allen‑Bradley motor terminator.

It is installed at motor terminals,specially used for long‑distance motor cable occasions,effectively suppress high‑voltage reflected‑wave spike generated by PWM output,prevent motor insulation damage caused by voltage overshoot. Maximum allowable inverter carrier frequency is 2kHz,comes with 3‑meter prefabricated connecting cable. Improper matching will cause motor insulation aging,over‑temperature and motor damage,widely used for old‑site drive‑motor system overhaul and spare‑part replacement.
