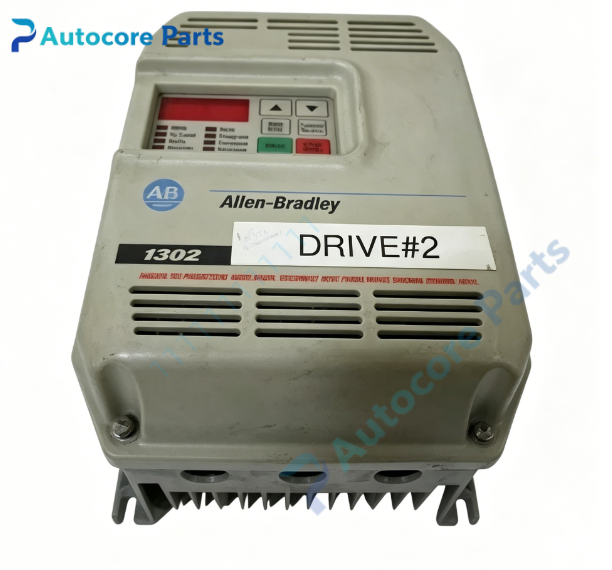

Allen‑Bradley 1302‑C005‑AA AC Drive

Technical Specifications

Model:1302‑C005‑AA

Brand:Rockwell Allen‑Bradley

Product Type:AC variable frequency drive,1302 series

Rated power:5HP

Input voltage:3×575‑600V AC 50/60Hz

Rated output current:7.5A

Output frequency range:0‑120Hz

Control mode:Open‑loop V/F control

Control interface:Analog input/output,digital start‑stop terminal

Enclosure:NEMA1

Weight:9.10 kg

Dimension:368mm×280mm×208mm

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Feature:V/F open‑loop speed regulation,built‑in fault diagnosis,panel local operation,external terminal control

System Compatibility:General‑purpose three‑phase asynchronous motor,pump,fan,conveyor and other old‑generation industrial equipment

Remark:Legacy EOL spare component;AA suffix for NEMA1 housing;confirm supply voltage,motor power and enclosure requirement before replacement.

Product Details

1302‑C005‑AA belongs to Rockwell Allen‑Bradley 1302 series general‑purpose AC drive,AA stands for NEMA1 standard cabinet version.

Adopts open‑loop V/F control,support local panel operation and external terminal analog signal speed setting,applied to fans,pumps,conveyors and other common‑load occasions. Equipped with basic over‑current,over‑voltage,over‑heat protection and fault code display. Drive failure may cause motor no‑run,alarm and equipment stop,mainly used for old‑site equipment overhaul and spare‑part replacement.
