Allen‑Bradley 1305‑AA02A‑HAP AC Drive

Technical Specifications

Model:1305‑AA02A‑HAP

Brand:Rockwell Allen‑Bradley

Product Type:AC variable frequency drive,1305 series,HAP full‑function LCD programmer HIM fitted

Rated power 3‑phase input:0.5HP(0.37kW)

Rated power 1‑phase input:0.25HP(0.19kW)

Input voltage:200‑230V AC 50/60Hz,support single‑phase or three‑phase power supply

Rated continuous output current:2.3A

Output frequency range:0‑400Hz

Control mode:Open‑loop V/F control

Control interface:0‑10V /4‑20mA analog input,digital start‑stop,jog,preset‑speed terminals

Human Interface:HAP full‑function LCD programmer HIM,full‑parameter access,parameter upload/download

Enclosure:NEMA1(IP30)

Weight:1.80 kg

Dimension:152mm×180mm×80mm

Operating Temperature:0℃ ~ +50℃

Storage Temperature:-40℃ ~ +70℃

Humidity:5%‑95% non‑condensing

Feature:Multi‑segment accel/decel,7 preset speeds,DC braking,built‑in electronic motor overload protection,fault code queue display;HAP = full‑feature LCD programmer HIM,support parameter upload‑download

System Compatibility:General‑purpose three‑phase asynchronous motor,conveyors,mixers,small fans and pumps

Remark:Legacy EOL spare component;HAP denotes factory‑installed full‑function LCD programmer HIM;single‑phase input results in power derating;confirm supply mode,motor power before replacement.

Product Details

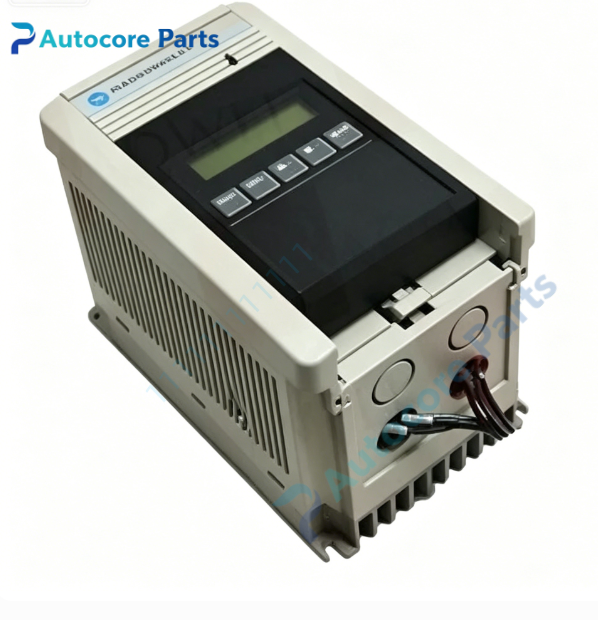

1305‑AA02A‑HAP belongs to Rockwell Allen‑Bradley 1305 compact AC drive series. HAP indicates factory‑mounted full‑function LCD programmer HIM,support full parameter editing,parameter upload and download,fault history query.

It supports single‑phase or three‑phase 200‑230V power input; when powered by single‑phase source, power will be derated to 0.25HP. Adopts open‑loop V/F control,support multi‑ramp acceleration‑deceleration,7 preset speeds and DC braking function. Built‑in electronic motor overload protection,analog and digital terminal control. Widely used for small‑power conveyor,mixer,fan and pump applications. Drive failure will cause motor no‑run,alarm and equipment stop,mainly used for old‑site equipment overhaul and spare‑part replacement.
