Allen‑Bradley 1305‑AA08A AC Drive

Technical Specifications

Model:1305‑AA08A

Brand:Rockwell Allen‑Bradley

Product Type:AC variable frequency drive,1305 series,without HIM keypad

Rated power 3‑phase input:2HP(1.5kW)

Rated power 1‑phase input:1HP(0.75kW)

Input voltage:200‑240V AC 50/60Hz,support single‑phase or three‑phase power supply

Rated continuous output current:8A

Output frequency range:0‑400Hz

Control mode:Open‑loop V/F control

Control interface:0‑10V /4‑20mA analog input,digital start‑stop,jog,preset‑speed terminals,DSI communication port

Enclosure:NEMA1(IP30)

Weight:2.70 kg

Dimension:184mm×226mm×100mm

Operating Temperature:0℃ ~ +50℃

Storage Temperature:-40℃ ~ +70℃

Humidity:5%‑95% non‑condensing

Feature:Multi‑segment accel/decel,7 preset speeds,DC braking,built‑in electronic motor overload protection,fault code display,support external HIM panel via DSI port

System Compatibility:General‑purpose three‑phase asynchronous motor,conveyors,mixers,fans and pumps

Remark:Legacy EOL spare component;unit without HIM keypad,external HIM required for full parameter setting;single‑phase input results in power derating;confirm supply mode,motor power before replacement.

Product Details

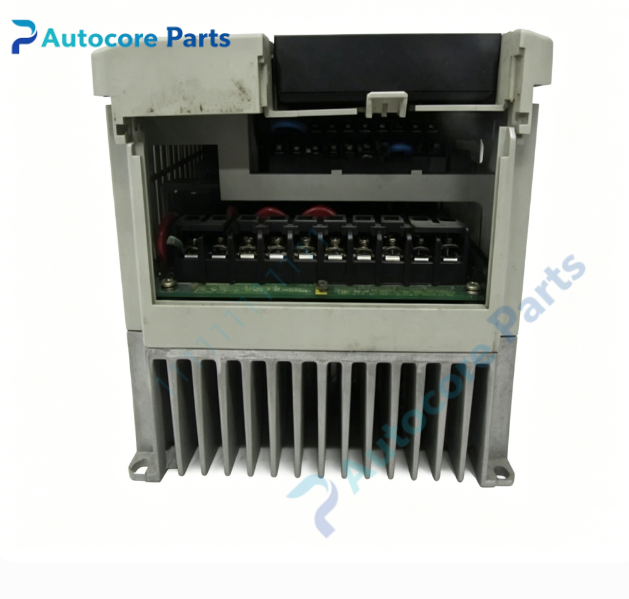

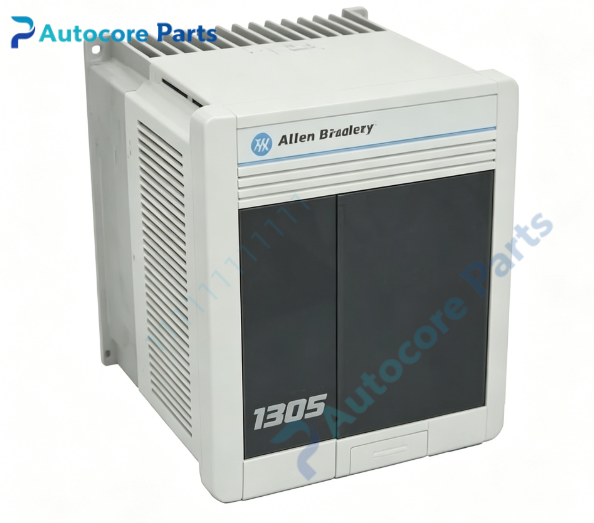

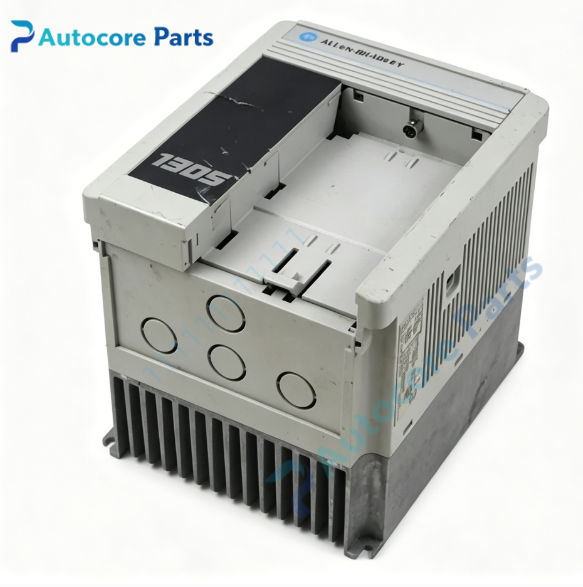

1305‑AA08A belongs to Rockwell Allen‑Bradley 1305 compact AC drive series,keypad HIM is not factory fitted.

It supports single‑phase or three‑phase 200‑240V power input; when powered by single‑phase source, power will be derated to 1HP(0.75kW). Adopts open‑loop V/F control,support multi‑ramp acceleration‑deceleration,7 preset speeds and DC braking function. Built‑in electronic motor overload protection,analog and digital terminal control,DSI port for connecting external HIM operator panel. Widely used for medium‑power conveyor,mixer,fan and pump applications. Drive failure will cause motor no‑run,alarm and equipment stop,mainly used for old‑site equipment overhaul and spare‑part replacement.
