Allen‑Bradley 1336‑B003‑EOD‑L1 3‑HP 460V AC Adjustable Frequency Drive

Technical Specifications

Model:1336‑B003‑EOD‑L1

Brand:Rockwell Allen‑Bradley

Product Type:Complete AC Adjustable Frequency Drive Unit

Applicable Series:1336‑PLUS Constant‑Torque AC Drive

Power Rating:3 HP / 2.2 kW

Input:3‑Phase, 380‑480V AC, 50/60 Hz

Output Rated Current:5.0‑6.0A

Output KVA:3.9‑4.8KVA

Enclosure Type:EOD (IP00 open bare‑chassis, no factory outer metal housing, must install inside customer‑supplied closed control cabinet)

Physical Dimension:26.7cm × 21.6cm ×13.3cm (10.5in ×8.5in ×5.25in)

Weight:13.4kg (29.5lbs)

Factory Options:

‑ L1: L1 +5 V DC TTL‑level logic I/O expansion board, provides additional +5V logic‑level digital input / relay output channels for external interlock and status feedback

Note: Unit does NOT include local HIM operator panel; HIM unit shall be purchased separately for local operation and parameter modification

Control Mode:Sensorless vector control, V/F control

Speed Regulation Accuracy:Open‑loop ±0.5% rated speed

Overload Rating:150% rated current for 1 minute (constant‑torque)

Installation Method:Bare chassis mounting inside customer‑provided closed control cabinet

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Details

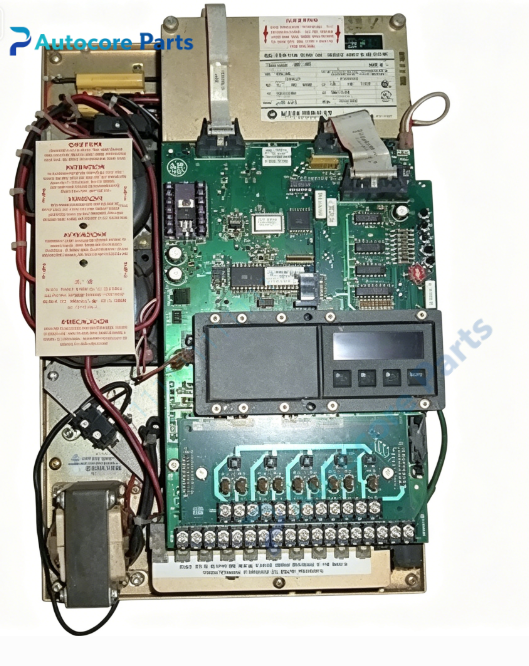

1336‑B003‑EOD‑L1 is factory‑optioned IP00 open bare‑chassis 3‑HP 460V 1336‑PLUS AC drive, not separate PCB boards. Based on base model 1336‑B003‑EOD, factory pre‑installed L1 +5V DC TTL‑level logic I/O expansion board, without local HIM operator panel. This is open‑frame unit without outer protective housing and shall be installed in user‑supplied cabinet.

The L1 option adds expanded +5 V DC TTL‑compatible discrete digital inputs and relay outputs. These +5V logic‑level channels are intended for interfacing with TTL‑based PLC or sensor hardware; supports additional equipment interlock logic, external status feedback, multi‑source dry‑contact command signals. Different from 24V‑level L2 and encoder‑interface L3 option boards. No local keypad is fitted, external HIM accessory is mandatory for on‑site debugging and parameter editing.

Internal hardware integrates rectifier power stack, inverter IGBT power section, main control CPU board, auxiliary power supply, sampling and signal‑conditioning circuits. Supports sensorless vector and V/F control for standard three‑phase induction motors. Retains standard onboard analog/digital hard‑wired base I/O terminals for local hard‑wired start‑stop and speed reference.

Full protection suite: over‑current, over‑voltage, under‑voltage, over‑temperature, input phase‑loss, motor thermal overload, ground‑fault protection. Used for full‑unit replacement when multiple internal assemblies suffer compound damage. When swapping complete drive, back‑up original parameters, verify firmware compatibility and complete motor auto‑tuning. Shielded cables shall be adopted for I/O wiring; strictly separate power cable and signal cable routing. Strict ESD protection required for installation and commissioning.

Typically applied for overhaul of legacy fans, pumps, general conveyors and workshop processing machinery. The drive is mounted inside existing control cabinet, requires extra +5V TTL‑logic interlock I/O, and uses external HIM for operation and parameter setup.

Remark:Legacy EOL complete drive unit;original production discontinued;please confirm motor rating, +5V TTL signal‑level requirement, input voltage, cabinet‑installation dimension and option function matching before purchase.
