Allen‑Bradley 1336‑B003‑EOD‑FA2‑L3 3‑HP 460V AC Adjustable Frequency Drive

Technical Specifications

Model:1336‑B003‑EOD‑FA2‑L3

Brand:Rockwell Allen‑Bradley

Product Type:Complete AC Adjustable Frequency Drive Unit

Applicable Series:1336‑PLUS Constant‑Torque AC Drive

Power Rating:3 HP / 2.2 kW

Input:3‑Phase, 380‑480V AC, 50/60 Hz

Output Rated Current:5.0‑6.0A

Output KVA:3.9‑4.8KVA

Enclosure Type:EOD (IP00 open bare‑chassis, no factory outer metal housing, must install inside customer‑supplied closed control cabinet)

Physical Dimension:26.7cm × 21.6cm ×13.3cm (10.5in ×8.5in ×5.25in)

Weight:13.4kg (29.5lbs)

Factory Options:

‑ FA2: Factory pre‑mounted FA2 local HIM operator panel (local start‑stop push‑buttons, speed potentiometer, running/fault LED indicator lights, local parameter viewing)

‑ L3: L3 encoder feedback option board, supports incremental encoder signal access (differential / single‑ended, max 125kHz pulse frequency), configurable encoder power supply 5V /12‑15V via onboard jumper, realizes closed‑loop vector speed/torque control

Control Mode:Closed‑loop vector control, Sensorless vector control, V/F control

Speed Regulation Accuracy:Open‑loop ±0.5% rated speed; Closed‑loop with encoder ±0.1% rated speed

Overload Rating:150% rated current for 1 minute (constant‑torque)

Installation Method:Bare chassis mounting inside customer‑provided closed control cabinet

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Details

1336‑B003‑EOD‑FA2‑L3 is factory‑optioned IP00 open bare‑chassis 3‑HP 460V 1336‑PLUS AC drive, not separate PCB boards. Based on base model 1336‑B003‑EOD, factory pre‑installed FA2 local human‑interface HIM panel and L3 encoder feedback option board. This is open‑frame unit without outer protective housing and shall be installed in user‑supplied cabinet.

The FA2 HIM supports local on‑unit operation: physical start/stop push‑buttons, analog speed‑setting potentiometer, running/fault LED‑status indication. Operators can view basic drive parameters locally without external HIM accessories.

The L3 option is dedicated encoder feedback interface board. It receives incremental encoder pulse signals from motor shaft, supports differential line‑driver or single‑ended encoder signals, maximum pulse input frequency reaches 125kHz. Encoder supply voltage can be selected 5V or 12‑15V through hardware jumper. It feeds actual motor speed back to main control CPU, enables high‑precision closed‑loop vector speed and torque control. It greatly improves low‑speed torque performance and speed accuracy compared with open‑loop sensorless vector mode. Drive will trigger Encoder Loss Fault Code 60 when encoder signal loss, phase error or quadrature signal abnormality occurs.

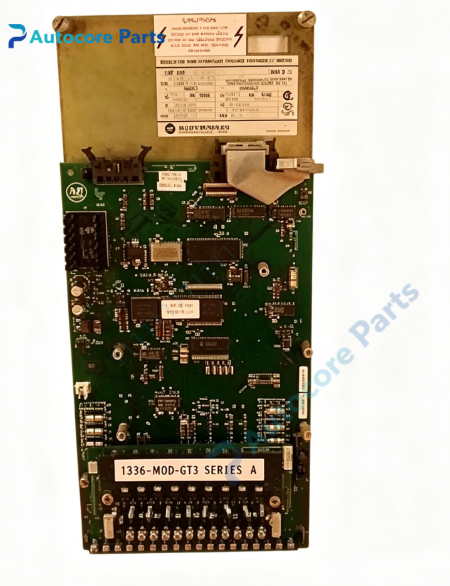

Internal hardware integrates rectifier power stack, inverter IGBT power section, main control CPU board, auxiliary power supply, sampling and signal‑conditioning circuits. Supports closed‑loop vector, sensorless vector and V/F control for standard three‑phase induction motors. Accepts external analog speed reference, discrete start‑stop interlock signals, supports SCANport communication expansion via external option adapters.

Full protection suite: over‑current, over‑voltage, under‑voltage, over‑temperature, input phase‑loss, motor thermal overload, ground‑fault protection, encoder signal loss fault alarm. Used for full‑unit replacement when multiple internal assemblies suffer compound damage. When swapping complete drive, back‑up original parameters, verify firmware compatibility, complete motor auto‑tuning and encoder wiring polarity calibration. Encoder shielded cable is strongly recommended for field wiring; strictly separate power cable and encoder signal cable routing. Strict ESD protection required for installation and commissioning.

Typically applied for overhaul of legacy conveyors, material handling equipment, processing machinery requiring high‑precision closed‑loop speed regulation and local keypad operation, where the drive will be mounted inside existing control cabinet.

Remark:Legacy EOL complete drive unit;original production discontinued;please confirm motor rating, encoder specification(pulse count, signal type, supply voltage), input voltage, cabinet‑installation dimension and option function matching before purchase.
