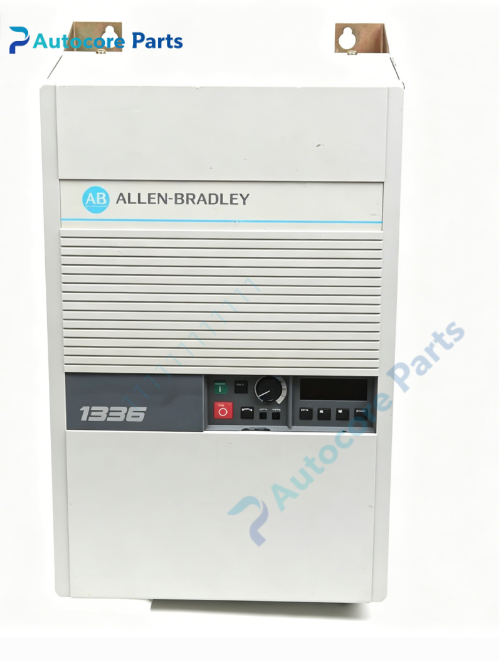

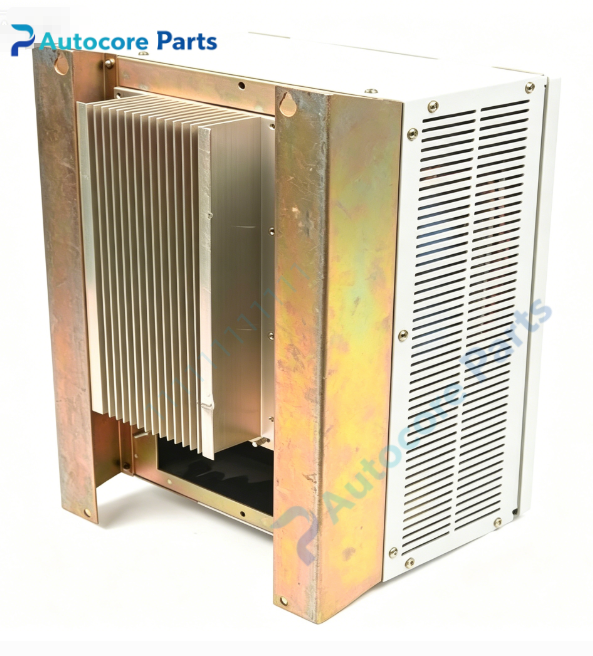

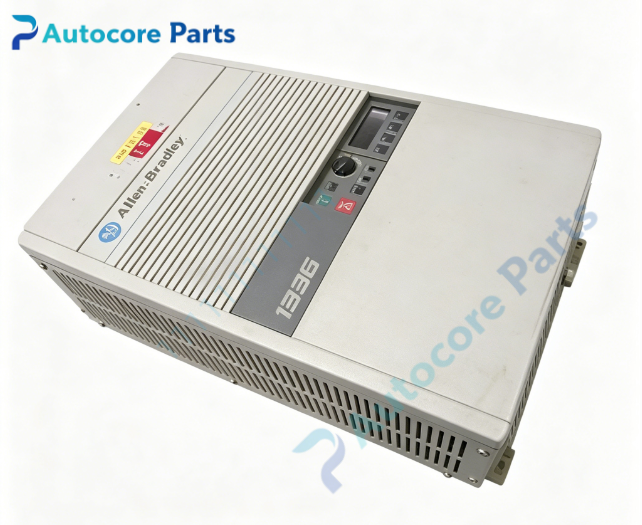

Allen‑Bradley 1336‑B005‑EAD‑FA2‑L3 5‑HP 460V AC Adjustable Frequency Drive

Technical Specifications

Model:1336‑B005‑EAD‑FA2‑L3

Brand:Rockwell Allen‑Bradley

Product Type:Complete AC Adjustable Frequency Drive Unit

Applicable Series:1336‑PLUS Constant‑Torque AC Drive

Power Rating:5 HP / 3.7 kW

Input:3‑Phase, 380‑480V AC, 50/60 Hz

Output Rated Current:8.0‑9.6A

Output KVA:5.3‑6.9KVA

Enclosure Type:EAD (NEMA‑1 / IP20 enclosed metal housing, indoor wall‑mount)

Physical Dimension:27.9cm × 22.9cm ×15.2cm (11.0in ×9.0in ×6.0in)

Weight:17.0kg (37.5lbs)

Factory Options:

‑ FA2: FA2 local HIM operator panel, local start‑stop push‑buttons, speed potentiometer, running/fault LED indicators, local parameter viewing

‑ L3: L3 encoder feedback option board, supports incremental encoder(differential / single‑ended, max 125 kHz), jumper‑selectable encoder supply 5V /12‑15V, enables closed‑loop vector speed/torque control

Control Mode:Closed‑loop vector control, Sensorless vector control, V/F control

Speed Regulation Accuracy:Open‑loop ±0.5% rated speed; Closed‑loop ±0.1% rated speed

Overload Rating:150% rated current for 1 minute (constant‑torque)

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Brief:

1336‑B005‑EAD‑FA2‑L3 is factory‑optioned NEMA‑1 IP20 enclosed 5‑HP 460V 1336‑PLUS full drive unit, not separate PCB boards. Based on base model 1336‑B005‑EAD, factory fitted FA2 local HIM and L3 incremental encoder feedback board.

FA2 HIM supports local manual operation and on‑unit parameter checking without external keypad.

L3 board accepts incremental encoder pulse signals from motor shaft, improves low‑speed torque and speed stability under closed‑loop vector. Fault code 60 will trigger upon encoder signal loss, phase error or quadrature signal abnormality.

Internal hardware includes rectifier power stack, IGBT inverter section, main control CPU board, auxiliary power supply and signal sampling‑conditioning circuits. Retains onboard base analog/digital hard‑wired I/O terminals. Supports SCANport communication via external adapters.

Full protections: over‑current, over‑voltage, under‑voltage, over‑temperature, input phase‑loss, motor thermal overload, ground‑fault plus encoder loss alarm. For full‑unit replacement, backup parameters, verify firmware compatibility and complete motor auto‑tuning together with encoder polarity calibration. ESD protection required for installation and commissioning. Encoder shielded cable is recommended; separate power and signal wiring routes.

Commonly used for legacy conveyors, material‑handling and processing machinery requiring local keypad operation and high‑precision closed‑loop speed regulation.
