Allen‑Bradley 1336‑B005‑EOD‑L3‑S1 5‑HP 460V AC Adjustable Frequency Drive

Technical Specifications

Model:1336‑B005‑EOD‑L3‑S1

Brand:Rockwell Allen‑Bradley

Product Type:Complete AC Adjustable Frequency Drive Unit

Applicable Series:1336‑PLUS Constant‑Torque AC Drive

Power Rating:5 HP / 3.7 kW

Input:3‑Phase, 380‑480V AC, 50/60 Hz

Output Rated Current:9.6A

Output KVA:6.3‑7.6KVA

Enclosure Type:EOD (Open‑Style IP00 open chassis,must be installed inside user‑supplied cabinet)

Physical Dimension:26.0cm × 18.5cm ×16.0cm

Weight:16.4kg

Factory Options:

‑ L3: L3 logic interface board,115V AC logic signal level,supports external interlock,enable and fault contact input signals

‑ S1: S1 serial communication option board,RS‑485 SCANport protocol,supports PLC remote control,parameter access and fault‑code upload

Note: Unit does NOT include local HIM operator panel; external HIM required for local operation and parameter modification

Control Mode:Sensorless vector control, V/F control

Speed Regulation Accuracy:Open‑loop ±0.5% rated speed

Overload Rating:150% rated current for 1 minute (constant‑torque)

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Brief:

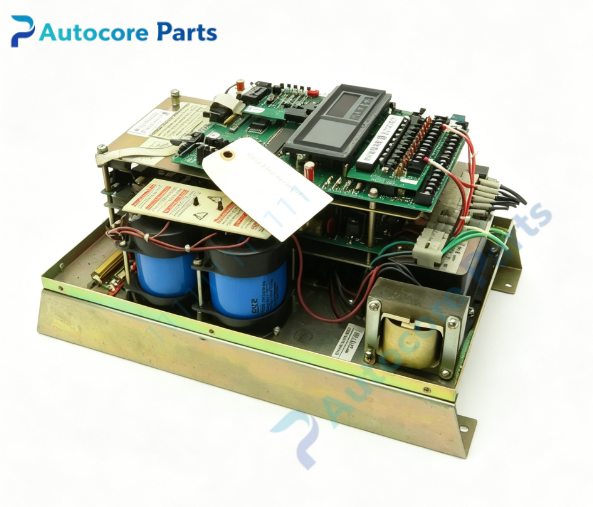

1336‑B005‑EOD‑L3‑S1 is factory‑configured open‑frame IP00 5‑HP 460V 1336‑PLUS full drive unit,not separate PCB boards. Suffix EOD stands for open‑frame chassis without protective housing,must be installed inside customer control cabinet.

L3 logic interface board adopts 115V AC signal level,matches legacy production line 115V AC control loops for external enable,interlock and fault signal input.

S1 communication board provides RS‑485 SCANport interface for Allen‑Bradley PLC system,realizes remote start‑stop,speed reference,parameter read‑write and fault information upload.

There is no built‑in local HIM panel,external HIM device is required for commissioning,parameter editing and manual local operation.

Internal hardware includes rectifier power stack,IGBT inverter section,main control CPU board,auxiliary power supply and signal sampling‑conditioning circuits.Retains onboard base analog/digital hard‑wired I/O terminals.

Full protections: over‑current,over‑voltage,under‑voltage,over‑temperature,input phase‑loss,motor thermal overload,ground‑fault protection.When performing full‑unit replacement,backup original parameters,check firmware compatibility and run motor auto‑tuning.ESD protection required for installation and commissioning.Separate power and signal cables.

Commonly used for overhaul of legacy fans,pumps,conveyors and process machinery;installed inside user cabinet,adapts to equipment with 115V AC interlock control and SCANport network remote operation.
