Allen‑Bradley 1336‑B007‑EOD 7.5‑HP 460V AC Adjustable Frequency Drive

Technical Specifications

Model:1336‑B007‑EOD

Brand:Rockwell Allen‑Bradley

Product Type:Complete AC Adjustable Frequency Drive Unit

Applicable Series:1336‑PLUS Constant‑Torque AC Drive

Power Rating:7.5 HP / 5.5 kW

Input:3‑Phase, 380‑480V AC, 50/60 Hz

Output Rated Current:13A

Output KVA:8.6‑10.4KVA

Enclosure Type:EOD (Open‑Style IP00 open chassis,must be installed inside user‑supplied cabinet)

Physical Dimension:28.5cm × 20.0cm ×17.5cm

Weight:17.5kg

Factory Options:

Note: Unit does NOT include local HIM operator panel; external HIM required for local operation and parameter modification,no extra factory‑installed option boards

Control Mode:Sensorless vector control, V/F control

Speed Regulation Accuracy:Open‑loop ±0.5% rated speed

Overload Rating:150% rated current for 1 minute (constant‑torque)

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Brief:

1336‑B007‑EOD is factory‑configured open‑frame IP00 7.5‑HP 460V 1336‑PLUS full drive unit,not separate PCB boards. Suffix EOD stands for open‑frame chassis without protective housing,must be installed inside customer control cabinet.

Open‑frame structure provides excellent heat dissipation performance. There is no built‑in local HIM panel,external HIM device is required for commissioning,parameter editing and manual local operation.

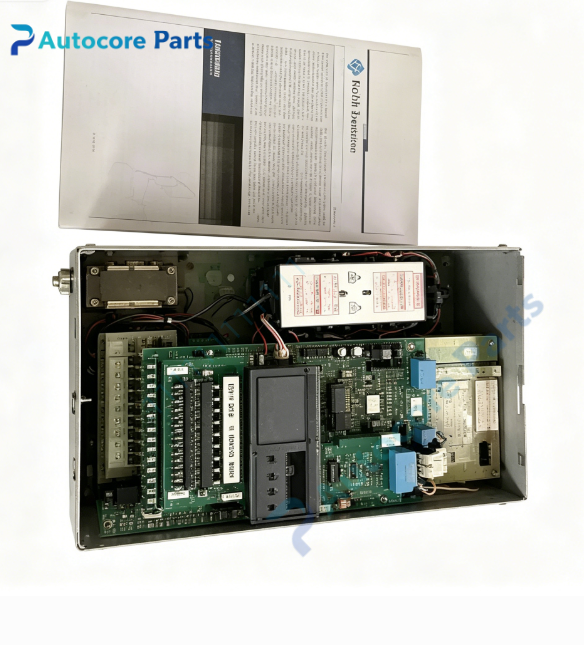

Internal hardware includes rectifier power stack,IGBT inverter section,main control CPU board,auxiliary power supply and signal sampling‑conditioning circuits.Retains onboard base analog/digital hard‑wired I/O terminals.Supports SCANport communication via external adapters.

Full protections: over‑current,over‑voltage,under‑voltage,over‑temperature,input phase‑loss,motor thermal overload,ground‑fault protection.When performing full‑unit replacement,backup original parameters,check firmware compatibility and run motor auto‑tuning.ESD protection required for installation and commissioning.Separate power and signal cables.

Commonly used for overhaul of legacy fans,pumps,conveyors and process machinery;installed inside user cabinet,system adopts external HIM or network for parameter setting and operation.
