Allen‑Bradley 1336‑B007‑EAD 7.5‑HP 460V AC Adjustable Frequency Drive

Technical Specifications

Model:1336‑B007‑EAD

Brand:Rockwell Allen‑Bradley

Product Type:Complete AC Adjustable Frequency Drive Unit

Applicable Series:1336‑PLUS Constant‑Torque AC Drive

Power Rating:7.5 HP / 5.5 kW

Input:3‑Phase, 380‑480V AC, 50/60 Hz

Output Rated Current:13A

Output KVA:8.6‑10.4KVA

Enclosure Type:EAD (NEMA Type 1 IP20 enclosed cabinet,support direct wall mounting)

Physical Dimension:31.0cm × 22.0cm ×19.0cm

Weight:19.2kg

Factory Options:

Note: Unit does NOT include local HIM operator panel; external HIM required for local operation and parameter modification,no extra factory‑installed option boards

Control Mode:Sensorless vector control, V/F control

Speed Regulation Accuracy:Open‑loop ±0.5% rated speed

Overload Rating:150% rated current for 1 minute (constant‑torque)

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Brief:

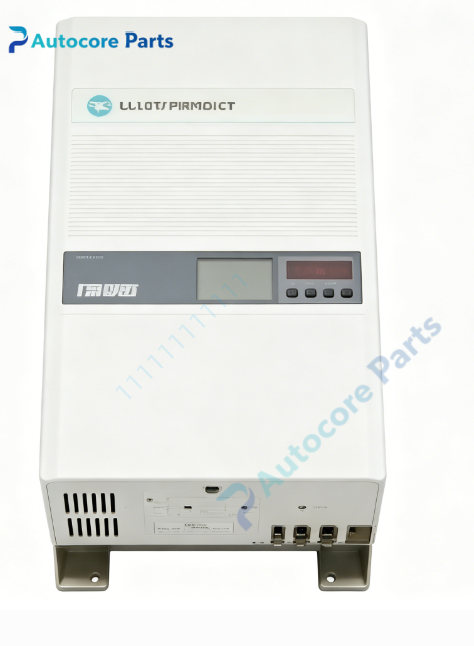

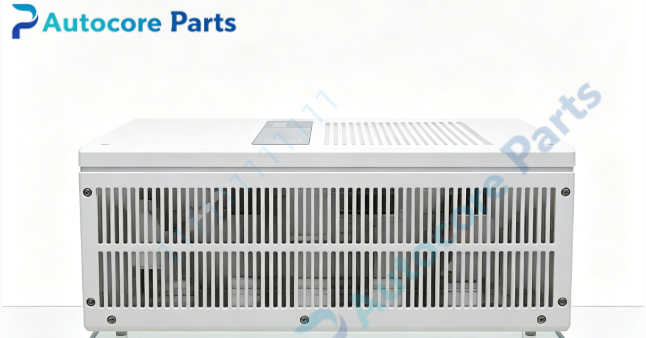

1336‑B007‑EAD is factory‑configured NEMA Type1 IP20 enclosed 7.5‑HP 460V 1336‑PLUS full drive unit,not separate PCB boards. Suffix EAD represents NEMA Type 1 IP20 metal enclosed housing,suitable for direct wall‑mount installation without extra user cabinet.

There is no built‑in local HIM panel,external HIM device is required for commissioning,parameter editing and manual local operation.

Internal hardware includes rectifier power stack,IGBT inverter section,main control CPU board,auxiliary power supply and signal sampling‑conditioning circuits.Retains onboard base analog/digital hard‑wired I/O terminals.Supports SCANport communication via external adapters.

Full protections: over‑current,over‑voltage,under‑voltage,over‑temperature,input phase‑loss,motor thermal overload,ground‑fault protection.When performing full‑unit replacement,backup original parameters,check firmware compatibility and run motor auto‑tuning.ESD protection required for installation and commissioning.Separate power and signal cables.

Commonly used for overhaul of legacy fans,pumps,conveyors and process machinery;direct wall‑mount deployment,system adopts external HIM or network for parameter setting and operation.
