Technical Specifications

Model:1336‑151132

Brand:Rockwell Allen‑Bradley

Product Type:Dynamic Braking Interface PCB Board

Applicable Series:1336 PLUS,1336 PLUS II,1336 IMPACT adjustable frequency AC drives

Core Function:Dynamic braking IGBT switching control,DC‑bus over‑voltage detection,braking resistor working monitoring,braking fault signal feedback

Signal Type:Braking tube drive signal,bus voltage sampling signal,braking fault logic signal

Installation Method:Built‑in plug‑in installation

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Details

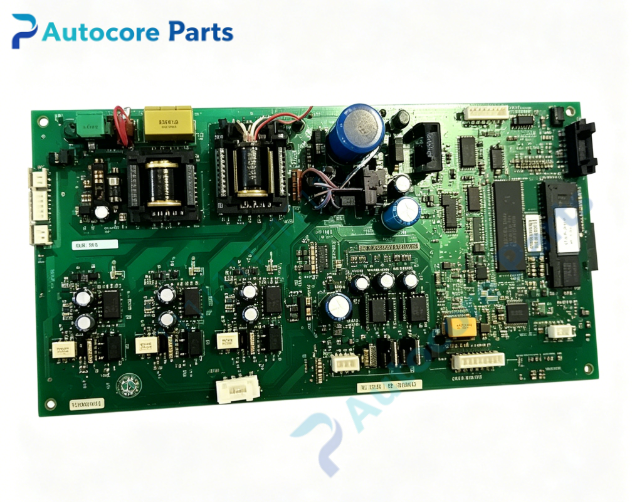

1336‑151132 is dynamic braking interface PCB board for Allen‑Bradley 1336 series ac drive. It is dedicated to the dynamic braking loop of the frequency converter. When the motor is in deceleration or regenerative working condition, DC‑bus voltage will rise due to regenerative energy. This board detects bus voltage threshold and outputs drive signal to turn‑on braking IGBT, the regenerative energy is consumed through external braking resistors.

It continuously monitors the operating status of braking resistors and braking power devices. Once detecting braking resistor open‑circuit, braking tube short‑circuit or abnormal bus voltage, it sends fault signal to main control board and triggers corresponding protection action to prevent bus over‑voltage trip or component burnout.

With industrial surge suppression and signal filtering circuit, it can restrain voltage spike interference generated during braking action. Matches original installation dimension and connector definition,supports direct replacement without extra modification. Solves typical faults including frequent DC‑bus over‑voltage alarm during deceleration, braking function invalid, braking related fault code reporting. ESD protection must be performed during disassembly and installation.

Suitable for maintenance of legacy hoist,conveyor and pump automation equipment which requires frequent deceleration.

Remark:Legacy EOL spare component;original production discontinued;please confirm braking resistor parameters and drive compatibility before purchase.
